13-Inch Magnetic Sliding Box

Created 1 months ago

Storage & Organizationsliding-boxmagnetic-closureprint-in-placeno-supportsflush-interior
Remix this model →

Description

What it's for

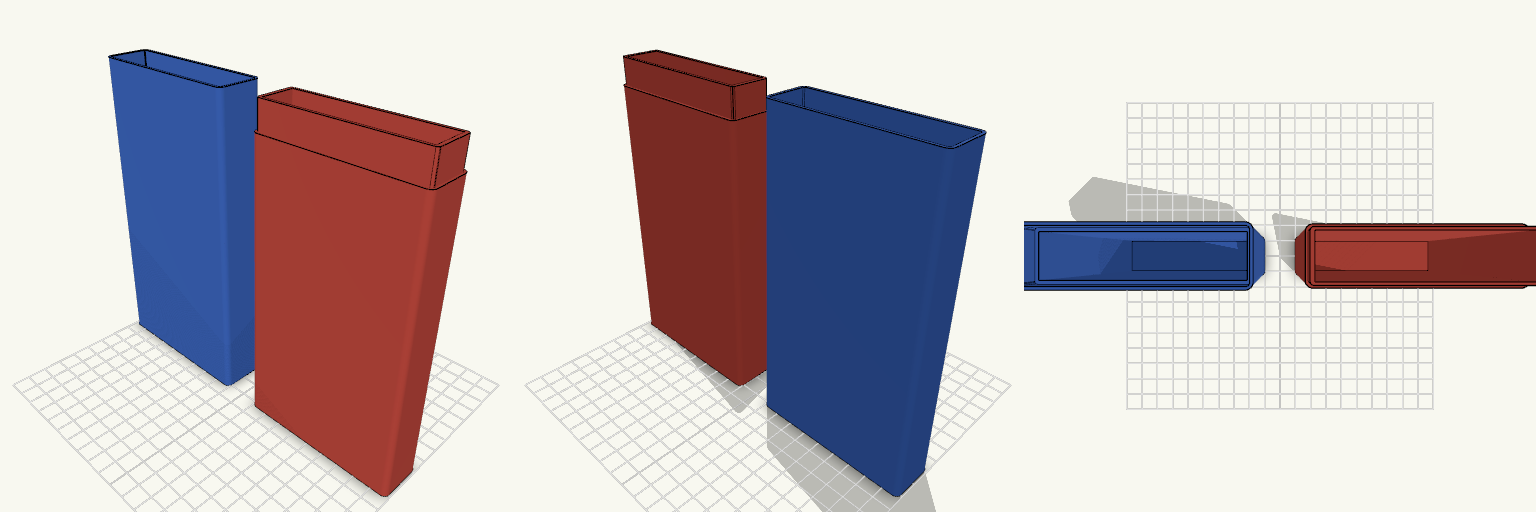

A minimalist 13-inch sliding box with an ultra-flush interior (3.5" wide by 1" deep) and heavily magnetized slip joints.

Designed for vertical printing without supports, this two-part closure uses eight 5x2 mm magnets hidden inside the 6 mm thick walls of the step-joint, creating a completely smooth interior cavity once assembled.

Dimensions

  • Interior: 88.9 × 25.4 × 330.2 mm (3.5 × 1 × 13 inches)
  • Exterior Shell Walls: 6 mm thick
  • Base Ends: 3 mm thick
  • Magnet Sockets: Sized for 5x2 mm disc magnets (5.2 mm diameter x 2.3 mm deep)

Print notes

  • No supports needed. The halves print upright on their closed ends.
  • 0.2 mm clearance is built into the male slip joint for a smooth glide up until the magnets catch.
  • Add a small dab of superglue to the magnet pockets before pressing them in.
