3×2 Fächergitter 40×40 mm, 60 mm hoch
Created today
Description
Fächergitter mit sechs durchgehenden Schächten (3 nebeneinander, 2 hintereinander), oben und unten offen. Gedacht als Sortier- oder Einsatzraster für Teile, die in einen 40 × 40 mm Schacht passen.
Maße
- Fach innen: 40 × 40 mm
- Höhe: 60 mm
- Wände: 2 mm, auch zwischen den Fächern
- Außenmaß: 128 × 86 × 60 mm
- Steg: umlaufender Rand bei 20 mm Höhe, 2 mm dick, 5 mm breit; Öffnung dort 30 × 30 mm
Vor dem Drucken prüfen
Der Steg ist eine Annahme: ein umlaufender Rand in jedem Fach. Ein Teil, das durch das Fach muss, braucht Platz im 30 × 30 mm Durchlass.
Passt nicht
Gegenstände über 30 mm Breite passen nicht durch die Stegöffnung.
Images
More like this
Explore more in Storage & Organization →
Gaveta Vertical Mini APH Pocket
Uma gaveta vertical de bolso, no espírito de um canivete suíço de primeiros socorros: o puxador largo no topo é também a tampa, e puxá-lo para cima faz a bandeja subir pelas guias, expondo os itens. Notas de projeto Corpo 86 × 52 × 127 mm, parede de 1,6 mm, dois drenos de ø 3 mm e furo de ø 4 mm para cordão. Bandeja 78 × 47 × 125 mm com tampa de 90 × 56 × 8 mm, recorte de dedo e divisórias. Clipe em J de 40 mm, 2,6 mm de espessura, impresso deitado. Pensado para PETG, sem suportes. Versão simplificada: dentes de retenção, rabo-de-andorinha, berço do oxímetro e batente liberável ainda não modelados.

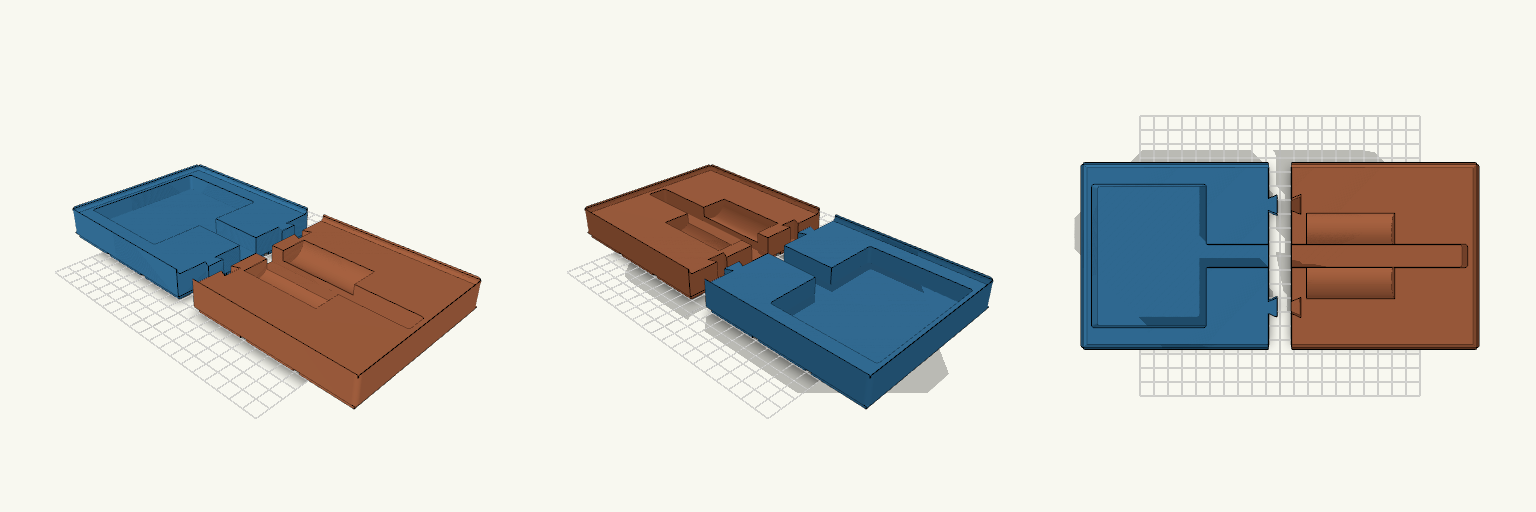

Two-Piece Gridfinity Caliper Box
