Filmdosen-Schuh 36mm
Created today
Description
Ein flacher, passgenauer TPU-Untersetzer (Schuh), der das Wackeln einer hohen 36-mm-Filmdose verhindert.
- Innendurchmesser: 36,2 mm (für strammen Sitz in flexiblem Material)
- Gesamthöhe: 5,0 mm
- Bodenstärke: 1,6 mm
- Wandstärke: 1,65 mm
- Besonderheiten: Leicht abgerundete Außenkanten und eine 0,5 mm Fase an der Innenkante zum leichteren Einsetzen der Dose.
Images
More like this
Explore more in Storage & Organization →
Archiv-Einschub: Schiffe versenken
Ein maßgefertigtes, modulares Schubladen-Regal für Brettspiele und Kartensets (hier ausgelegt auf 150 x 45 mm Boxen). Das Set besteht aus drei Teilen: Regalgehäuse: Eine stapelbare, robuste Außenhülle mit Fase. Schublade: Passgenau mit 0,8 mm Spielraum zum einfachen Herausziehen. Ein Griff an der Front erleichtert das Greifen. Inlay-Buchstaben: Die Schrift ist als 1,5 mm tiefe Aussparung in der Frontplatte angelegt. Die separat gedruckten Buchstaben sind minimal verkleinert (0,15 mm Toleranz) und können nach dem Druck passgenau in die Front eingedrückt werden. Ideal für ein aufgeräumtes Regal, bei dem man jedes Spiel sofort auf der Frontblende erkennt.
DropCyl — Rotary Quarter Dispenser
DropCyl is a fully mechanical, gravity-fed coin magazine tailored for standard U.S. quarters. Designed to store a full $10 roll vertically, it now dispenses exactly $1 (four quarters) per cycle with a quick twist of the ribbed rotary drum. The iconic 8-ball viewing window punches cleanly through both sides, letting you check your count at a glance while keeping the footprint extremely compact. Features Rotary Drum Action: A reliable half-turn escapement that isolates and drops exactly four coins at a time. Ergonomic Shell: Aggressive edge rounding on the base block and cap makes it comfortable to grip and slip into a bag. Dual Windows: The signature 8-ball cutout is fully symmetrical, meaning you can check the magazine from any angle. Travel Cap: A robust coarse-thread cap locks the stack down so it won't spill in transit. Print Notes Print the main body and cap standing upright. The rotary drum should be printed flat on its base. The captive limit pin drops into the bottom of the track during final assembly.
Split 13-Inch Slip Box
A simple, cleanly split rectangular enclosure meeting a 3" × 1" × 13" outer footprint. Designed to print standing vertically on the build plate, the two halves meet in the middle with a sliding half-lap joint that handles alignment and friction. Remix Hooks The source relies on a few key parameters that dictate the fit and feel. If you pull this into a remix, check these first: Dimensions: Currently W = 76.2, D = 25.4, and L = 172.6 (for each half, achieving the 330.2mm total length). Tweak these to fit whatever board or gear you are housing. Wall: Set to 3mm. This gives enough meat for the half-lap cut (leaving 1.5mm walls at the joint) without feeling overly bulky. Clearance: The joint runs a comfortable 0.4mm tolerance. Tighten it to 0.2mm if your printer is dialed in and you want a semi-permanent friction fit, or loosen it if it binds. Lip Length: The 15mm overlap keeps the assembled box rigid, but dropping it to 8-10mm would save a bit of plastic if the contents don't flex.

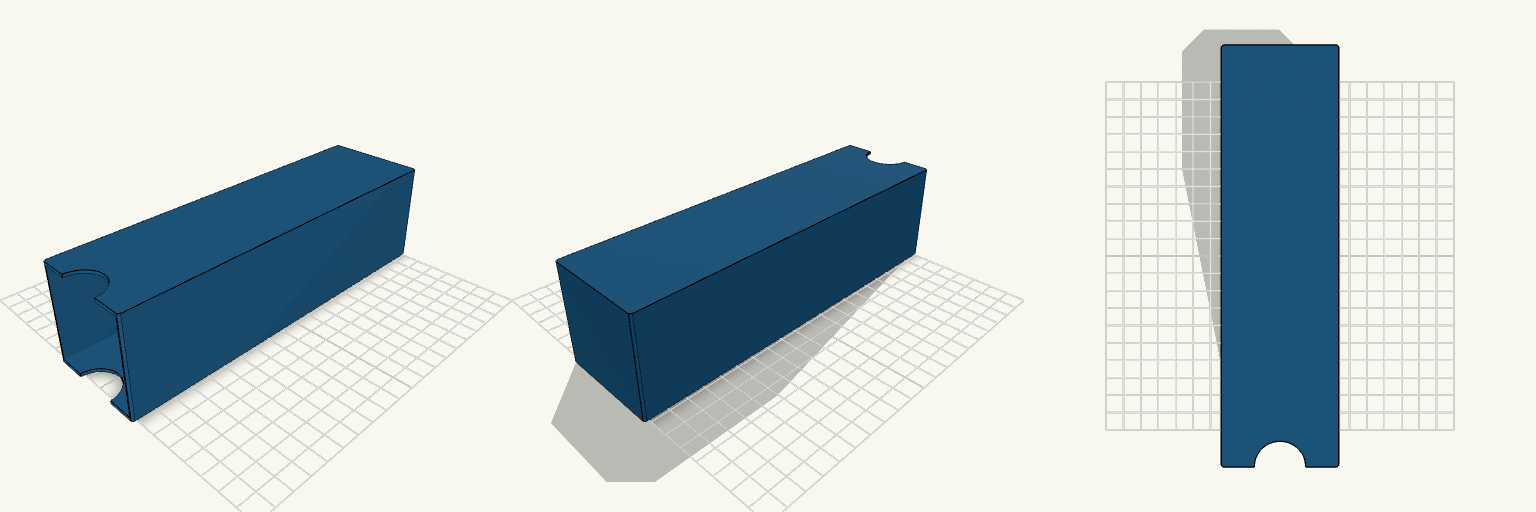

Ühe Otsaga Suletud Sahtlikarp
Sahtel kiilub kinni, sest pole kuskilt korralikult kinni võtta. See on suletud tagaseinaga lihtne kest, millel on nüüd sahtli ees korralik väike näpu-kõrgendus, et seda saaks mugavalt ja ilma küüsi murdmata välja tõmmata. Mahutavus: Täpselt 200 × 50 × 50 mm kasulikku ruumi. Seinad: 1.5 mm, prinditav ilma tugedeta. Liikumisruum: 0.5 mm lõtk külgedel tagab sujuva liugumise.
Penny Sleeve Display Stand
A dedicated three-slot display base dimensioned specifically for standard trading cards in penny sleeves (or top-loaders). The base spans 250 mm wide, offering three independent 70 mm x 5 mm straight grooves. The generous 5 mm slot depth easily clears a standard sleeve, and the solid 12 mm floor ensures they sit securely without sliding out of bounds. Groove Size: 70 mm wide x 5 mm deep x 12 mm tall Backing Plate: 110 mm tall Multi-Colour: Includes an embedded turquoise TCC logo separated as its own printable region.

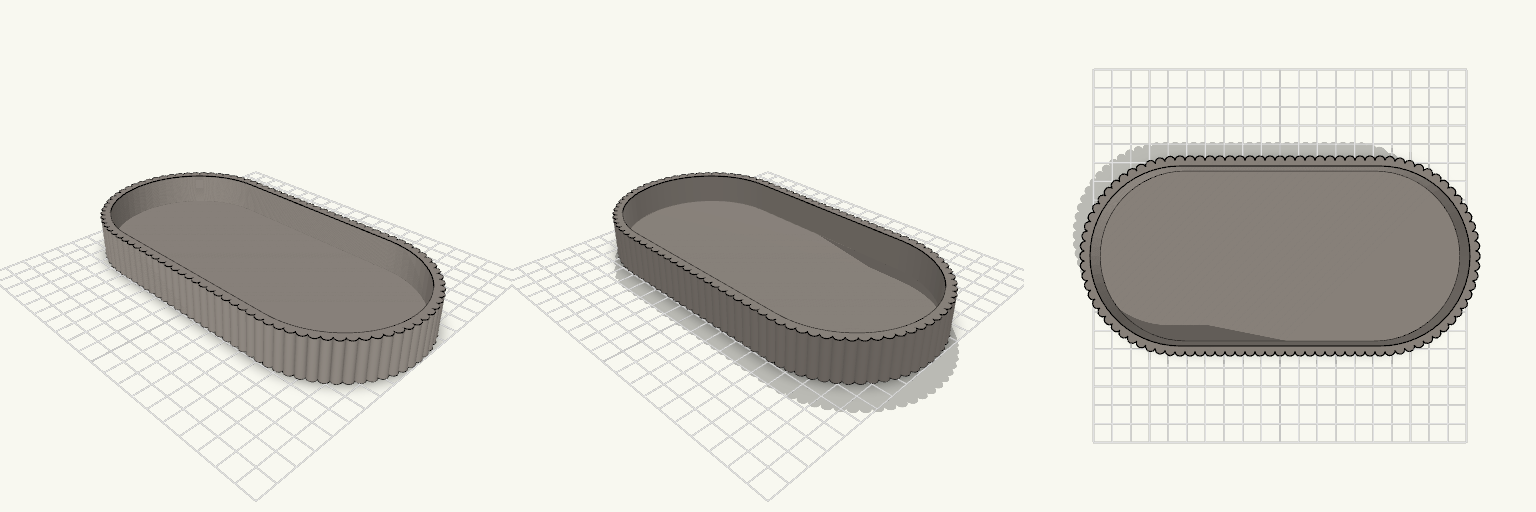

Low-Profile Reeded Catchall Tray
A wide, low-profile oval catchall tray featuring a seamless ribbed exterior and a smooth inner basin. Dimensions: 200mm × 100mm × 22mm Wall Thickness: 5mm (with 5mm continuous exterior ribs) Floor Thickness: 5mm Use Case: Keys, loose hardware, or desk accessories. The shallow walls make it easy to reach in and grab small items.
