Split 1U Smart Home Tray
Created 1 months ago
Description
A three-piece split 1U rackmount designed specifically to fit on smaller printers (under 180mm cubed volume). It supports an Adtran 632 ONT and a Home Assistant Yellow side-by-side, while leaving the third tray configured as a 6-port keystone patch panel.
Remixing the Rack Space
The base design features locking dovetails and bolted structural flanges that securely bridge the three pieces across a standard 19-inch rack.
- Keystone Spacing: The 6-port patch panel uses standard 14.8 x 16.2 mm cutouts. The wall directly behind them is thinned to 1.5mm so standard keystone clips engage properly without stressing the jacks.
- Split Points: The joints occur at X = -80 and X = +80. Adjusting these values lets you shift the proportions of the left, centre, and right trays depending on what device combination you want to mount next.
- Hardware Required: The mating flanges use four M3x16 bolts and matching M3 nuts to pull the dovetail seams tight and handle horizontal shear.
Photos
Technical views
More like this
Explore more in Storage & Organization →
Split 13-Inch Slip Box
A simple, cleanly split rectangular enclosure meeting a 3" × 1" × 13" outer footprint. Designed to print standing vertically on the build plate, the two halves meet in the middle with a sliding half-lap joint that handles alignment and friction. Remix Hooks The source relies on a few key parameters that dictate the fit and feel. If you pull this into a remix, check these first: Dimensions: Currently W = 76.2, D = 25.4, and L = 172.6 (for each half, achieving the 330.2mm total length). Tweak these to fit whatever board or gear you are housing. Wall: Set to 3mm. This gives enough meat for the half-lap cut (leaving 1.5mm walls at the joint) without feeling overly bulky. Clearance: The joint runs a comfortable 0.4mm tolerance. Tighten it to 0.2mm if your printer is dialed in and you want a semi-permanent friction fit, or loosen it if it binds. Lip Length: The 15mm overlap keeps the assembled box rigid, but dropping it to 8-10mm would save a bit of plastic if the contents don't flex.

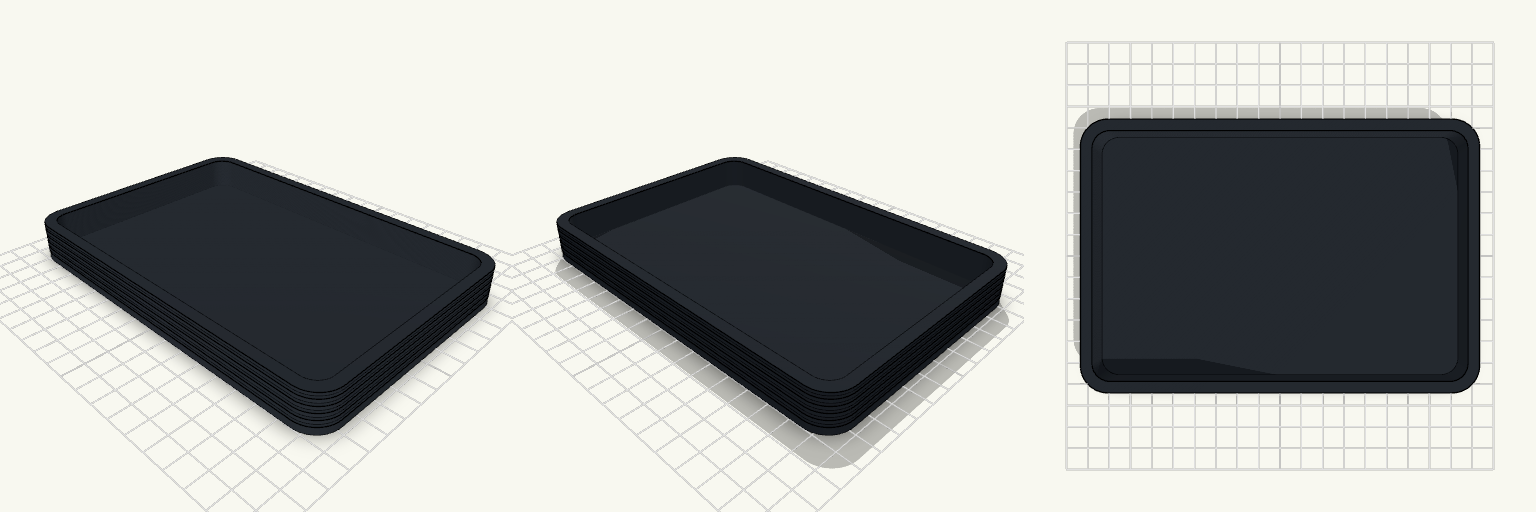

Striped Catchall Tray
