108 mm Vent Grille Cap, Center-Rib Clearance
Created today
Description
Closed 108 mm rounded-square cap for an installed round vent grille (about 99 mm body, 108 mm flange), with a dedicated recess over the raised center rib.
Fit
- Fits over: round grille up to about 100 mm, flange up to about 101.5 mm square.
- Face: 4 mm, fully closed.
- Cavity: 100.5 mm round, 15 mm clearance above the grille, plus a 24 mm wide channel along X reaching 21 mm clear.
- Lip: 10 mm deep, 3 mm walls, 102 mm pocket, eight small friction bumps.
Check before printing
Measure the center rib's height and direction. The channel assumes it runs along X and stays under about 18 mm tall.
Not compatible
Flanges over 101.5 mm square or grilles wider than 100 mm.
Images
More like this
Explore more in Home & Fixtures →
DraftBlock — Snap-Fit Vent Cap
A solid plug designed to completely seal an unused round vent or duct. The cover features a flat profile with softly rounded outer edges, hiding the internal void entirely. Features Snap-Fit Mounting: Four downward-facing flexible clips grip the inside of the duct securely. Print-Optimized: The clips are thick enough to provide tension but long enough to flex without snapping in PLA or PETG. Low Profile: Sits just 3 mm proud of the wall or floor line.

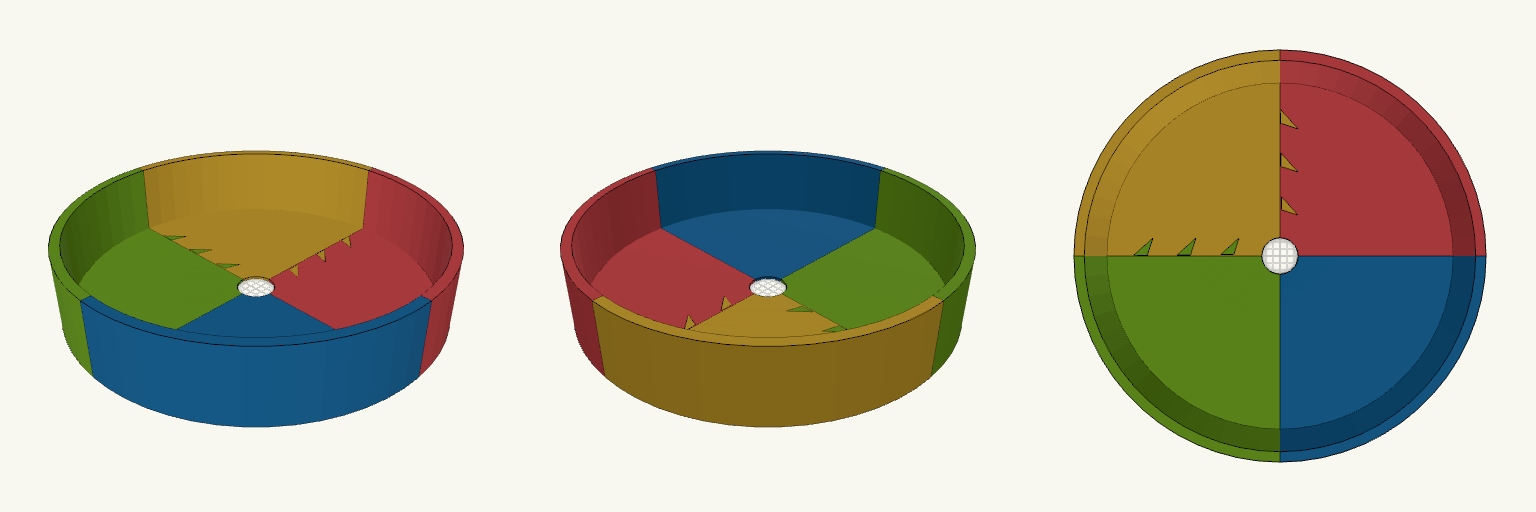

Round Dovetail Splash Guard
A heavy-duty 20-inch circular splash guard split into quarters. It features a continuous 4-inch tall outer rim and interlocking dovetails to snap securely around a 2-inch pipe.\n\n### Tweaking the Design\n Rim: Set at 4 inches tall and a half-inch thick. You could easily lower the rim to save plastic if you don't need the full basin volume.\n Clearances: The dovetails have a built-in 0.3mm tolerance. You can widen that if your printer leaves heavier seams.\n* Joints: Three 36mm-wide dovetails lock each quadrant. For a permanent install, add a little silicone to the seams before pressing them together.
125mm 8-Rib Filter Wrench
Two-piece water filter wrench sized for 125mm (4.5-inch) housings, featuring an 8-rib engagement ring. Joint: Heavy Z-axis sliding dovetail Fit: 125mm inner diameter with 8 notches Print Volume: Parts separated to fit 180x180mm print beds
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.

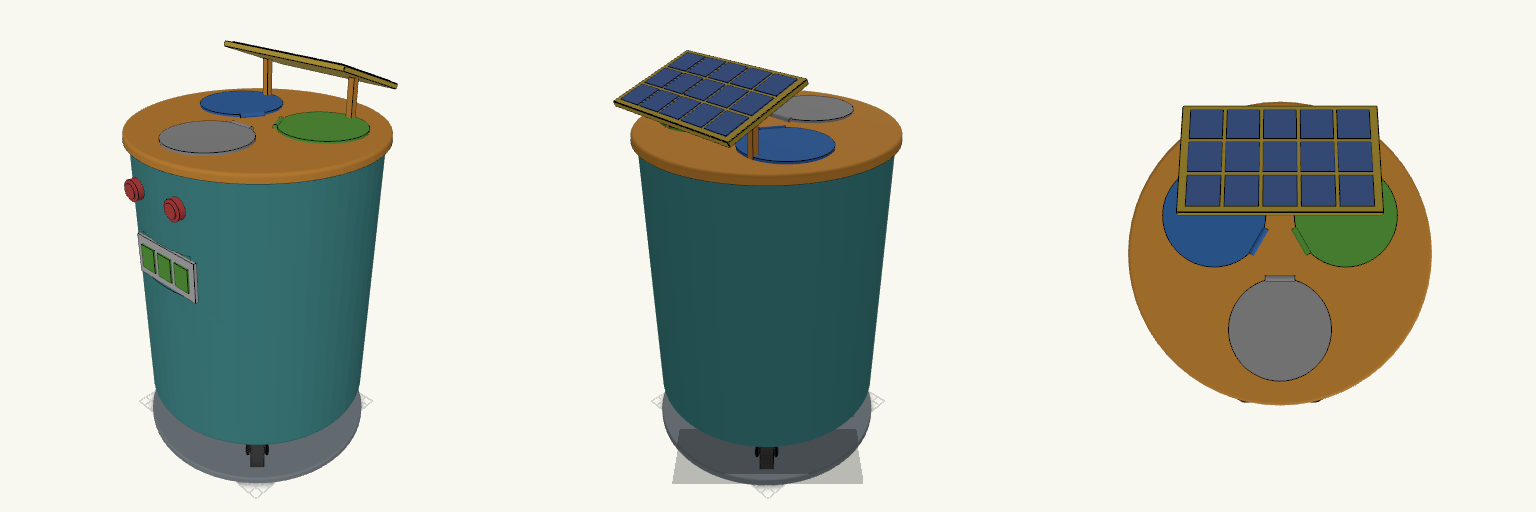

Bote de basura innovador
