135x110mm Quarter-Sheet Sanding Block
Created 1 months ago
Description
A handheld sanding block dimensioned specifically for quarter-sheet sandpaper (140x115mm). The 135x110mm base allows the paper to wrap over the front and back edges, where it is secured into lateral slots using two printed wedge clamps. The upper body features a sculpted dome with deep finger and thumb reliefs to reduce hand fatigue during extended use.
- Base dimensions: 135x110mm
- Paper compatibility: Standard quarter-sheet (140x115mm)
- Clamping mechanism: Dual friction-fit wedges
- Ergonomics: Sculpted palm dome with directional finger grooves
Images
More like this
Explore more in Workshop & Tools →
Self-Centering V-Block Finder
A precision marking tool designed to locate the exact center of round and square stock. Eliminates the need to eyeball center lines when preparing material for drilling, turning, or joining. What it's for Self-Centering Base: A 90-degree V-groove securely seats the tool on both round dowels and square cuts. Tapered Pencil Slot: The marking slot tapers from 6mm down to a 1.5mm slit, physically forcing the pencil lead onto the true center line. Corner Relief: The apex of the V-groove includes a circular relief, preventing the sharp corners of square stock from binding. Dimensions Stock Compatibility: Accommodates material widths from 10mm up to 60mm. Overall Size: Measures roughly 86mm wide and 90mm long. Base Plate Thickness: The main plate is 4mm thick, providing a rigid straight edge. Remix ideas Extend the length of the plate and slot for marking deeper along the stock. Widen the V-arms to accommodate larger stock sizes like fence posts. Modify the slot taper to perfectly capture a specific mechanical pencil or marking knife.
4-Inch Block with Hanging Grip
A 4-inch diameter, 2-inch thick solid cylinder block equipped with a 1-inch vertical grip. Built with fully radiused edges to prevent chipping during heavy use. The handle includes a 3/8-inch cross-hole near the top, sized to clear standard pegboard hooks, nails, or a paracord lanyard for hanging storage. Check your hook diameter if you're mounting this on a custom rack. Base Footprint: 4" OD × 2" H Handle Dimensions: 1" OD × 2.5" H (above base) Hole Clearance: 3/8" bore
3-Inch Tool with Handle
A heavy-duty pounding or tamping tool, dimensioned strictly to a 3-inch diameter base and a 1-inch diameter grip. Dimensions to Check Base Profile: 3.0" OD x 2.0" Height Grip Profile: 1.0" OD x 3.0" Height Hanger Hole: 0.375" (3/8") through-bore centered 0.5" from the top of the handle. Prints flat on the base. Requires no supports.
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.

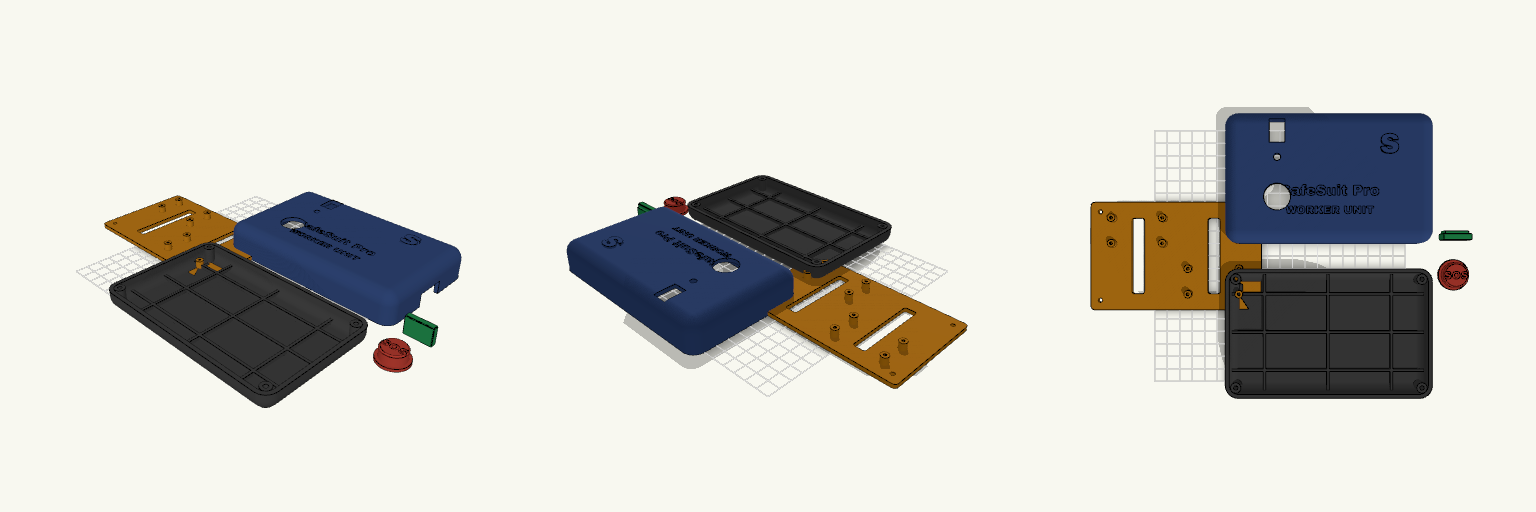

ESP32 / LoRa SafeSuit Enclosure
SafeSuit Pro Worker Unit shell. Mates with a standard ESP32 dev board and a LoRa SX1278 module. A five-piece FDM enclosure with an internal mounting sled, a flanged SOS actuator, and a captive port plug. Fitment Notes Internal mounting plate carries a 40x20mm hole pattern for the ESP32. Uses four M3 screws through the rear cover into the front shell's hidden bosses. Main cavity is roughly 154 x 94 mm internally. Not compatible with extended ESP32-WROVER footprints.

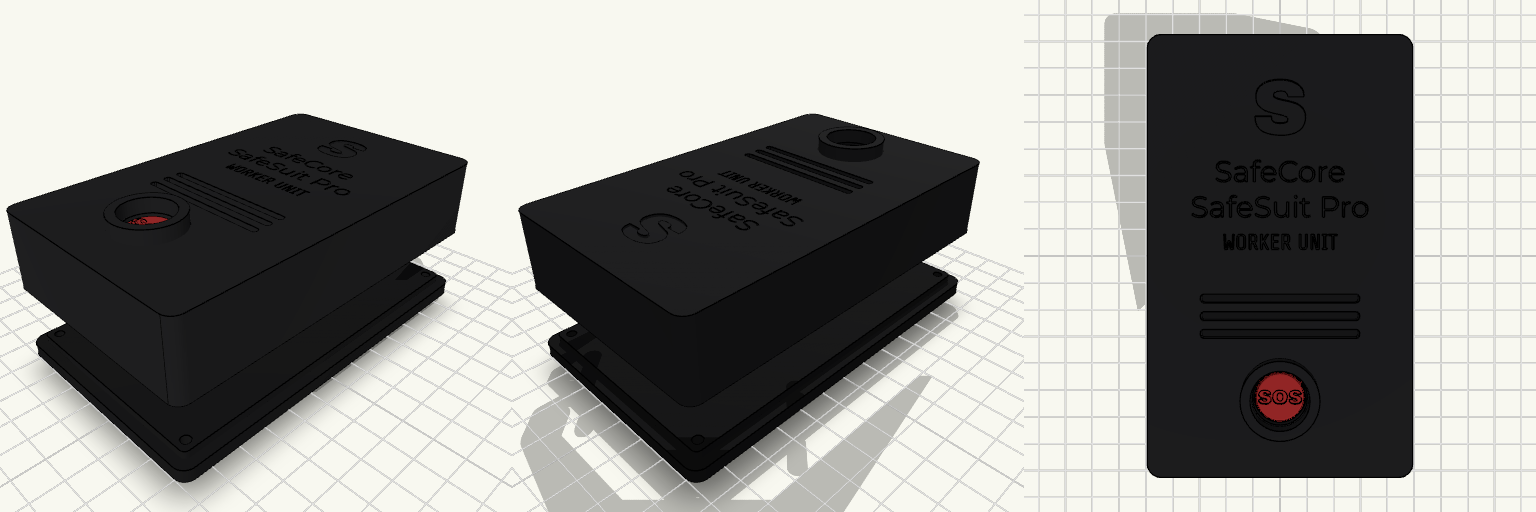

SafeSuit Pro Worker Unit Enclosure
