1:37 Tiger I 8.8 cm KwK 36 Barrel
Created today
Description

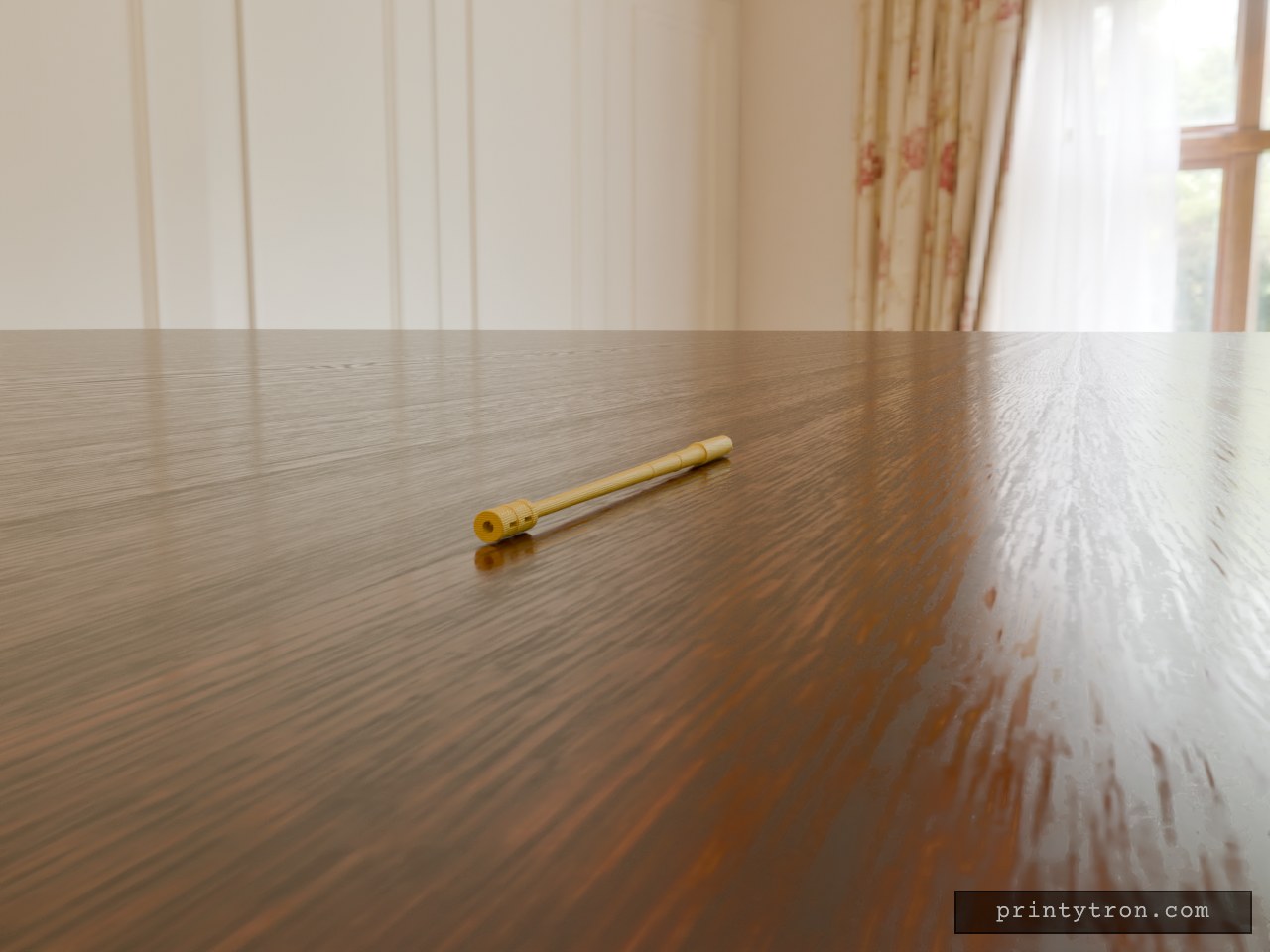

A static 1:37 scale 8.8 cm KwK 36 L/56 gun barrel for the Tiger I, with a muzzle brake and a rear mounting stub.
Fitment
- Scale: 1:37. The tube is 133.2 mm long (4,930 mm full size) and does not include the muzzle brake.
- Bore: 2.38 mm (88 mm full size). It is modelled as a recess in the brake end, not a through bore.
- Rear stub:
stub_dis 6 mm andstub_lis 6 mm. These are placeholder values. Measure the mantlet hole on your own kit and set both before printing. - Does not fit: any kit with a different mantlet bore. It also does not fit other 88 mm guns such as the KwK 43 or the Flak 36.
Details
- Tapered tube profile, from a thick breech end down to a slim muzzle end.
- Three reinforcing rings along the tube.
- Double-baffle muzzle brake with side slots, fused to the tube.
Check before printing
The mantlet bore diameter. Print the barrel standing upright or lying flat, depending on your printer and the fine detail you want to keep. The brake slots are the finest features.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
Ember — Realistic Miniature Fire Helmet
A heavily detailed half-inch miniature fire helmet designed for dioramas or RC figures. Features Structural Details: Features radial dome ribs and a pronounced central crest reflecting classic firefighting gear. Badging: Includes a forward-tilted front shield bearing a 3D-embossed "10". Profile: Features a realistic rear-swept brim with a raised outer lip to channel water. Hollow Core: Built thin-walled with an open base to slide cleanly over a mounting post or miniature figure's head.
25mm Tactical Tabletop Tokens
A complete set of nine 25mm wargaming tokens tailored for tabletop tracking. Designed with a clear separation between the base and the raised lettering, making them perfectly suited for a mid-print filament swap or a multi-material system. Specifications Dimensions: 25 mm diameter, 4 mm overall height. Tolerances: The raised text and outer rim sit exactly 1 mm above the base layer, creating a clean Z-height transition for color changes. Printability: No supports required. The bottom edges feature a 1 mm chamfer to prevent elephant-foot distortion on the first layer, ensuring the tokens remain perfectly circular and easy to pick up from flat tables. Layout: Arranged in a flat 3x3 grid for immediate batch printing. Can be split into individual models in the slicer if needed.
Double Seatbelt Buckle Holder, Backseat
Two seatbelt buckles flop around and fall into the seat gap, so this holder stands both upright side by side in the backseat of a Toyota Sienta. Each 33 x 53 mm pocket goes straight through the base, so the buckle and webbing pass through with nothing blocking the bottom. Pocket size: 33 x 53 mm each, sized for a 31 x 51 mm buckle Sleeve height: 28 mm above a 6 mm base Overall footprint: 130 x 64 mm Centre screw hole: 4.5 mm Print flat on the base, no supports needed

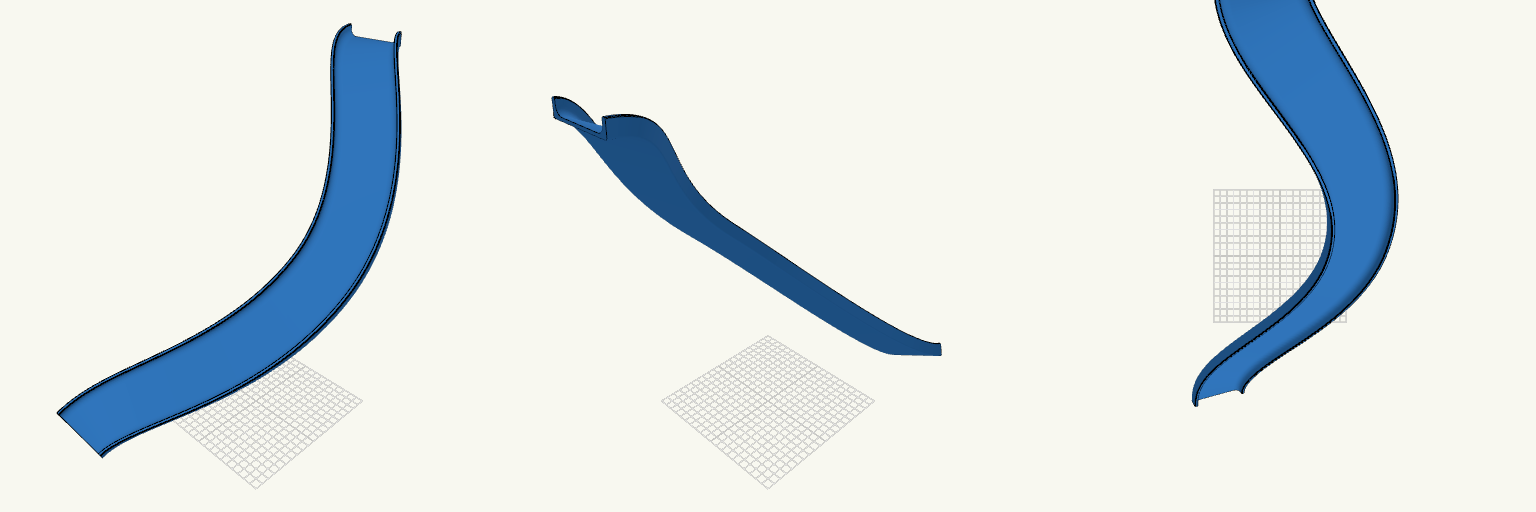

Dollhouse Slide Flume
