1M Subscriber Creator Trophy
Created 1 months ago
Remixed once
Description
A customized 1,000,000 subscriber milestone plaque for Medox. Built thick and heavy to sit solidly on a desk, the geometry takes its cues from classic creator awards with a prominent center play button and bold, stacked typography.
The most important structural choice here is the completely flush back surface. By aligning the rear face of the base with the rear face of the vertical plaque, the entire model can be laid flat on its back in a slicer. This guarantees a support-free print and makes dual-color printing trivial by simply swapping filament at the upper layer heights.
Remix Hooks
- Text & Fonts: Uses Archivo Black for the headers and Montserrat for the sub-text. Swap the
text()strings to change the channel name or language. - Depths: The main plaque is 15mm thick. The play button extrudes 3mm from the face, and the text extrudes 1.5mm.
- Scaling: The 180x50mm base footprint handles desktop display well, but the entire model can be safely scaled up uniformly if your build volume allows.
Images
More like this
Explore more in Decor & Display →

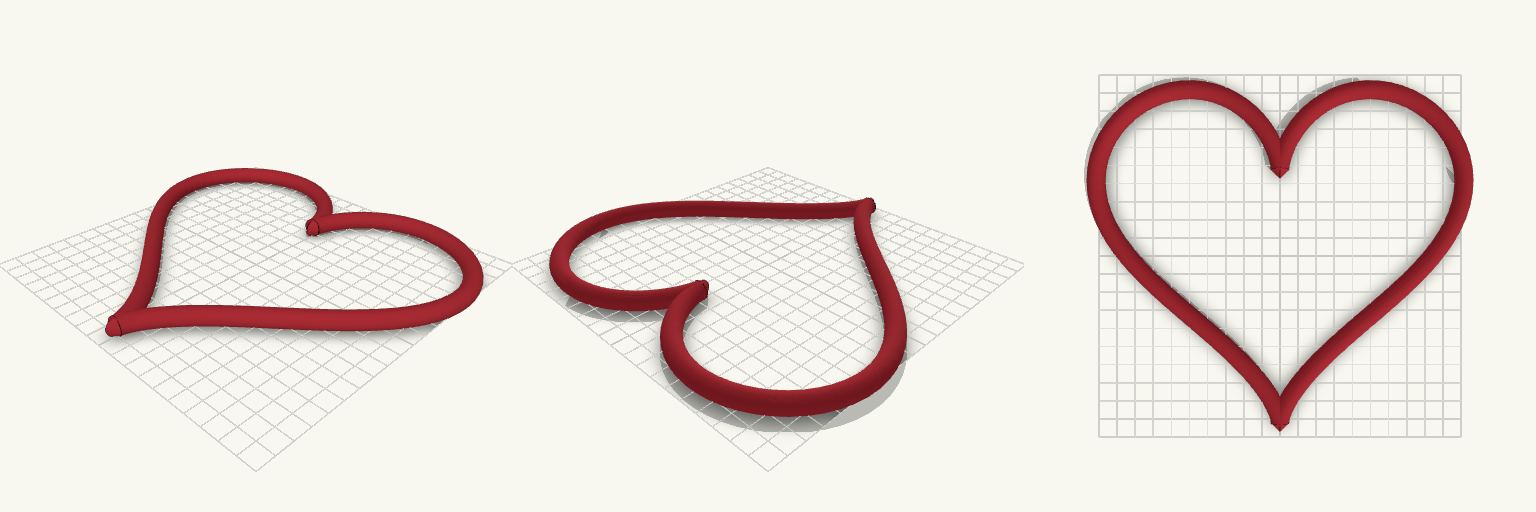

Aerocord — Wire Heart Frame
