20mm ID Threaded Collet & Nut
Created 9 days ago
Remixed once
Description
A two-piece metric compression collet and nut, designed to clamp down on a 20 mm shaft or tube.
The central rings were replaced with a standard 28x2 mm metric thread so the nut can provide mechanical compression against the four flex petals.
Fitment Notes
- Bore: 20 mm nominal.
- Thread: Custom M28x2.
- Clearance: 0.4 mm baked into the nut for FDM tolerances.
- Print orientation: Both parts print flat on their hex bases. No supports required.
Photos
Technical views
More like this
Explore more in Workshop & Tools →
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.

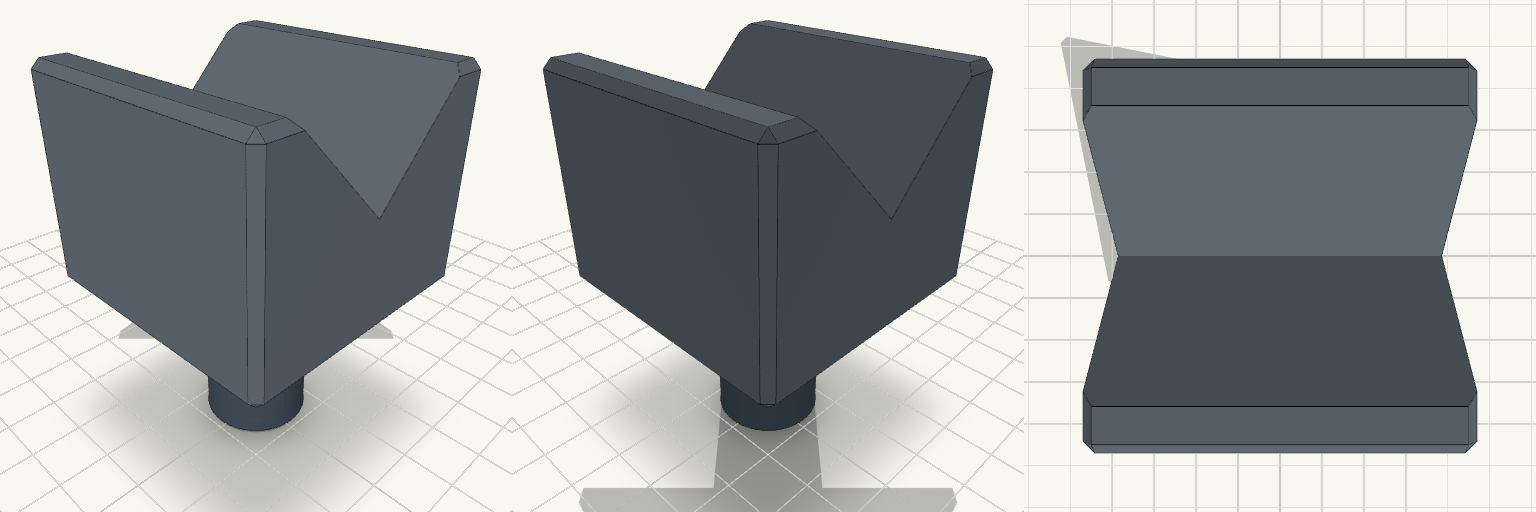

20mm V-Notch Bench Dog
