46 mm Brooch with 32 mm Pin Bar Slot
Created today
Description

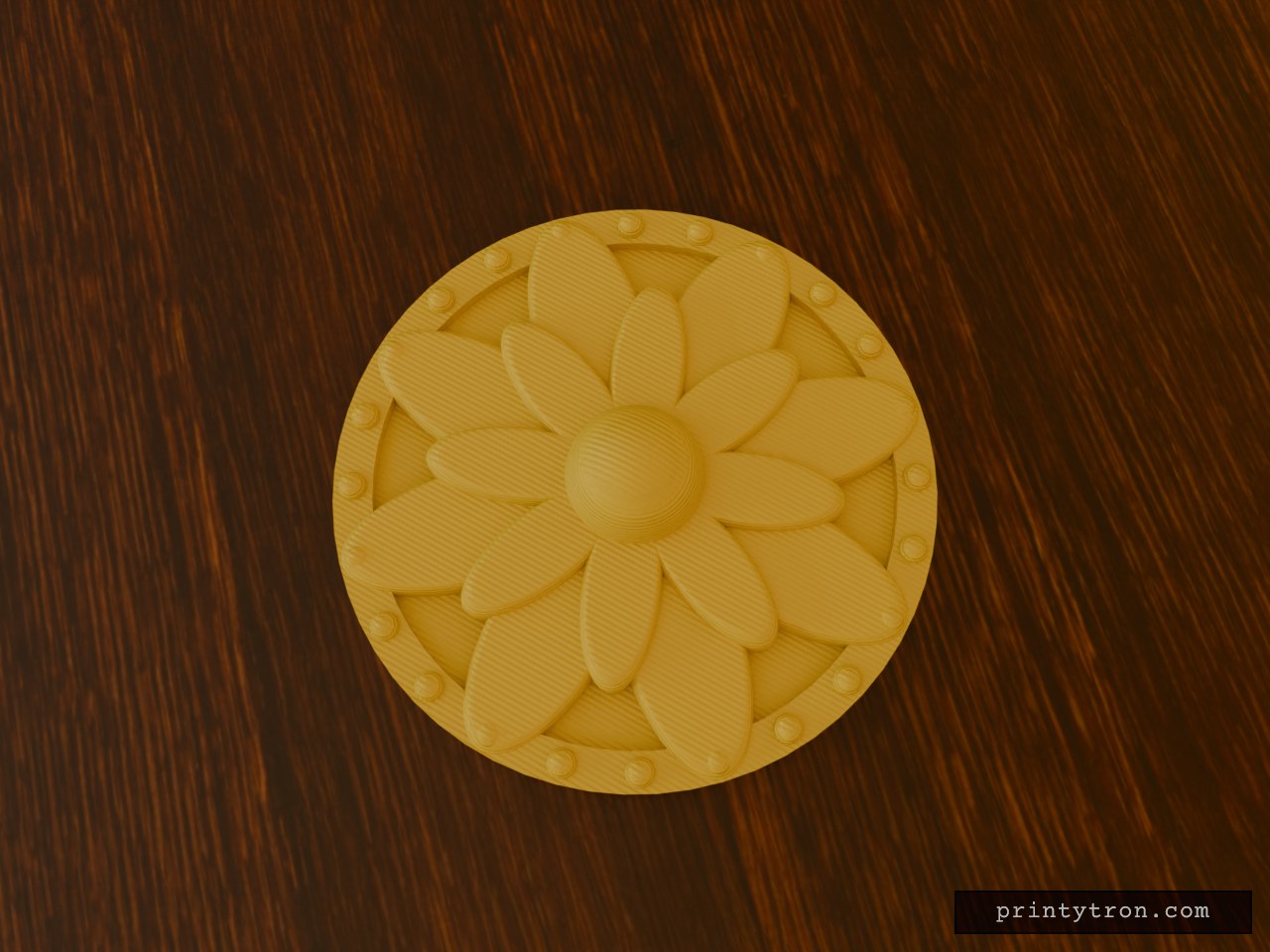

A 46 mm round flower brooch with two layers of petals, a domed centre stone and a beaded rim. It is designed for a standard 30 mm pin-back bar glued into the back.
Fit check
- Back groove: 32 × 6.4 × 1.2 mm. Measure your pin bar before printing. It fits bars up to about 30 mm long and 6 mm wide.
- Does not fit: clutch-style or screw-post backs. It has no hole for either.
- Print: face up with no supports needed. Use a multi-colour or paint the layers separately.
- Size: 46 mm across, about 6 mm tall.
Photos
Technical views
More like this
Explore more in Gifts, Seasonal & Personalized →
Luggage Strap Tag, 5 mm Slot, STEVE
A 90 × 50 × 3 mm luggage tag with a 5 × 22 mm strap slot and the name STEVE raised inside a recessed label panel. Fitment Fits straps up to 5 mm thick through the 22 mm-wide slot. Does not fit wide or double-layer straps, or standard key rings without a loop. Measure the strap thickness before printing; the slot is 5 mm. The lettering stands 0.9 mm proud of the panel floor and sits below the tag's top surface, so it is protected from rubbing.
150mm Bayonet Twist Vault
A 150mm mechanical drop-in vault, built around a 50mm twist-lift track. This replaces the friction fit of the original 150mm Borg Friendship Vault with a proper bayonet mechanism. The outer cage runs three 18mm tall helical tracks to guide the core. The top cap terminates in a 40mm hexagonal drive plug; dropping it onto the core and twisting counter-clockwise forces the payload to lift 50mm out of the chassis. Bore Clearance: The 98mm core runs inside a 102mm cage bore. Verify your machine holds tolerances on large cylinders. Support-Free: The massive 90mm flat bridges of the original have been replaced by mechanical vertical slots with 45-degree angled roofs. No supports needed for the cage or core lugs. Payload Capacity: The hollow inner void measures 76mm in diameter by 110mm deep. To assemble, line up the core lugs with the vertical entry slots on the inner walls of the cage, push down to the top stop, and twist right to lock it securely to the bottom.

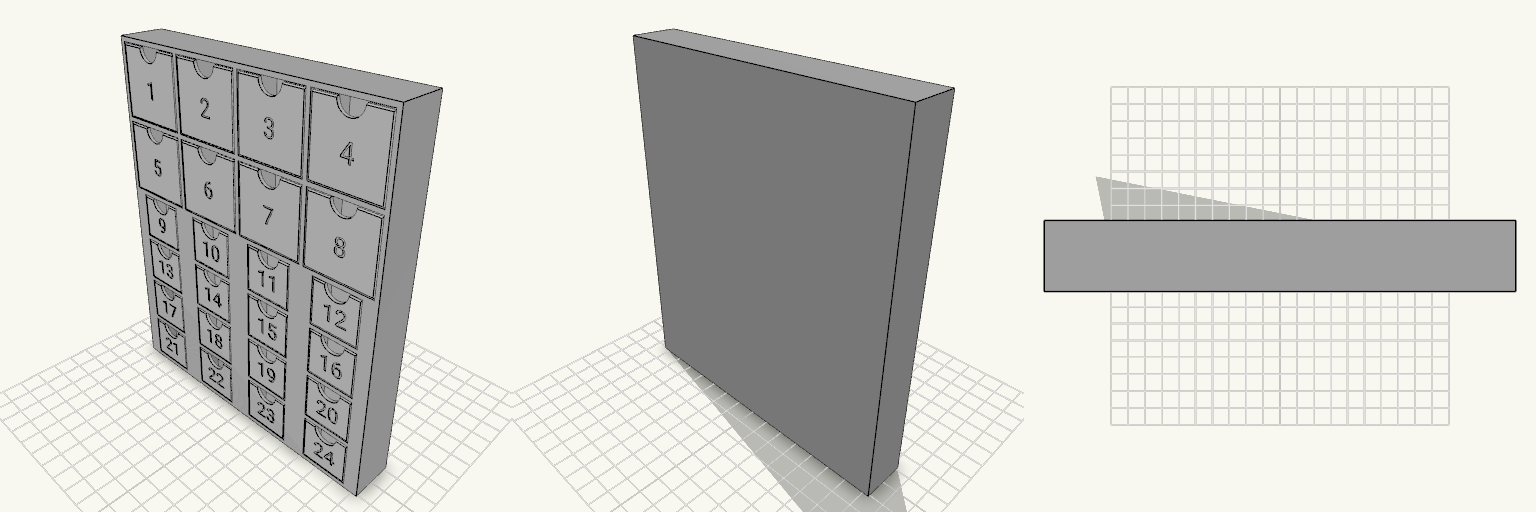

Monolithic Grid Advent Calendar
