60mm Winding Spool With Anchors
Created today
Description
What it's for
A compact, highly functional utility spool tailored for winding wires or thin cables. It features two specialized holes: a 2.5 mm pass-through hole at the base of the core to thread the start of the wire, and a smaller 1.5 mm hole on the outer edge of the flange to secure the loose end once wound.
Dimensions
- Outer Diameter (Flanges): 60 mm
- Core Outer Diameter: 25 mm
- Central Axle Hole: 8 mm
- Groove Width (Winding Space): 15 mm
- Flange Thickness: 2.5 mm each (Total height: 20 mm)
Assembly
Slide onto an 8 mm rod or bolt to spin. Pass the start of the wire through the inner bottom hole to anchor it, wind evenly across the 15 mm groove, and lock the tail through the outer top hole.
Images
More like this
Explore more in Workshop & Tools →
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.
LockDrop — Packout Cup Holder
A rugged, drop-in cup holder designed to integrate perfectly with the Packout system. Secures easily onto any standard Packout lid using an integrated twist-lock cleat that sits flush for straightforward 3D printing. The main body accommodates standard tumblers and bottles while the heavy-duty walls and gussets ensure side-load stability. Features Twist-Lock Cleat: Drops into standard female Packout receivers with a friction fit. Flush Base Construction: Designed to print cleanly without complex supports for the bottom locking mechanism. Heavy-Duty Walls: Thickened sides with structural gussets engineered for shop environments. Front Branding: Embossed Milwaukee logo wrapping the front curve for a finished tool aesthetic. Drainage: Integrated center channel prevents liquid and debris buildup.

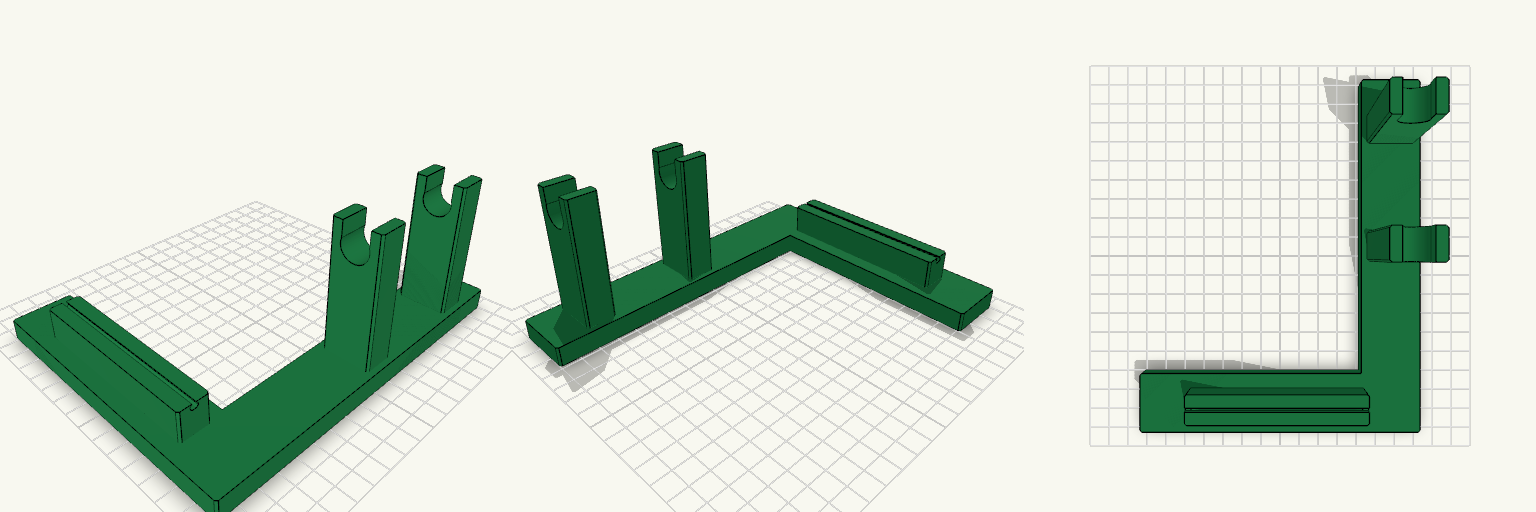

OptiFix — CD Diffraction Rig
