65mm Wood Hook Phone Bracket
Created today
Description
A heavy-duty hook bracket to suspend a phone over a 60mm wooden beam or headboard. The main channel is sized at 65mm for clearance, dropping a device tray down 65mm from the top edge.
- Fitment: 65mm interior gap clears standard 60mm stock.
- Tray Specs: 16mm deep with a 3mm inward tilt to keep the device seated against the backrest.
- Width: 50mm overall extrusion.
- Printability: Designed to be printed flat on its side. Requires no supports.
Images
More like this
Explore more in Storage & Organization →

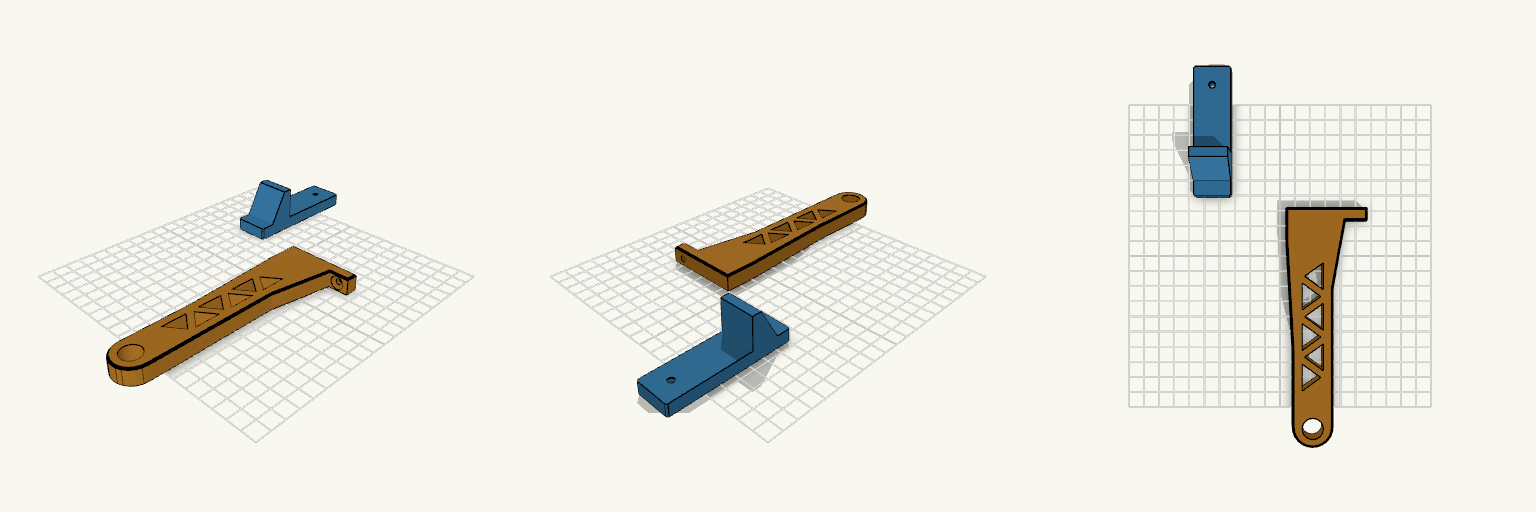

Screw-Through Dowel Shelf Bracket
A two-part wall bracket for holding a 13 mm wooden dowel, intended as a filament spool shelf. A narrow wall plate carries a ledge that takes the vertical load, and a separate flat-printed arm rests on that ledge. One screw passes through the arm's back flange and the wall plate into the wall, locking the two parts together. The screw head sits in a recess in the arm. Wall plate: 24 mm wide, 84 mm tall, with a ribbed ledge under the arm Arm: 12 mm thick, printed on its side with no supports Dowel hole: 13.6 mm, 150 mm out from the wall plate Fixing: one screw near the top, shared by both parts Print two sets for a pair of brackets

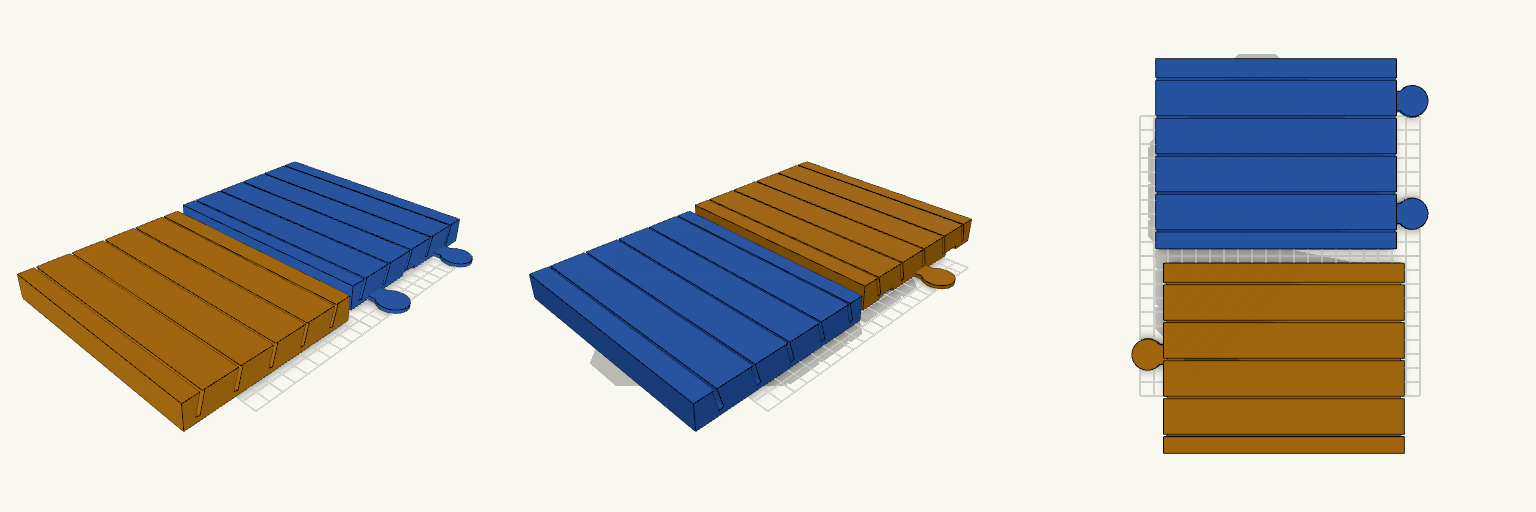

Standard Card Interlocking Holder
