Acrylic Sliding Channel Clip
Created 1 months ago
Description
This low-profile edge clip is designed to hold a 0.093" (2.4mm) acrylic sheet flush against a flat surface. Rather than fixing the panel in place, the clip features an open track, allowing you to use multiple clips to build a sliding channel.
Remix variables:
- Acrylic Thickness: Currently set for a 2.6mm gap to allow a 0.093" sheet to slide freely without binding.
- Overlap: 8mm lip reach.
- Mounting: Uses an M3 socket head screw, featuring a 3mm slotted channel to let you fine-tune the clamping pressure against the panel during install.
Ideal for easily removable 3D printer enclosures, sliding doors, or modular dust covers.
Photos
Technical views
More like this
Explore more in Workshop & Tools →
Zauberstab Verschluss 2.0
Zweiteiliger, hohler zylindrischer Testkörper zur Prüfung von FDM-Toleranzen. Beide Teile verfügen über eine geschlossene Außenwand und schließen bündig ab. Feste Abmessungen: Außen 30.8 mm, Innen 21.8 mm Mindestwandstärke: 1.5 mm im kritischen Bereich der Nuten Mechanismus: Bajonettverschluss mit Arretierungsnocke gegen unbeabsichtigtes Öffnen Druckbar: Ohne Stützstrukturen, flach auf dem Druckbett positioniert

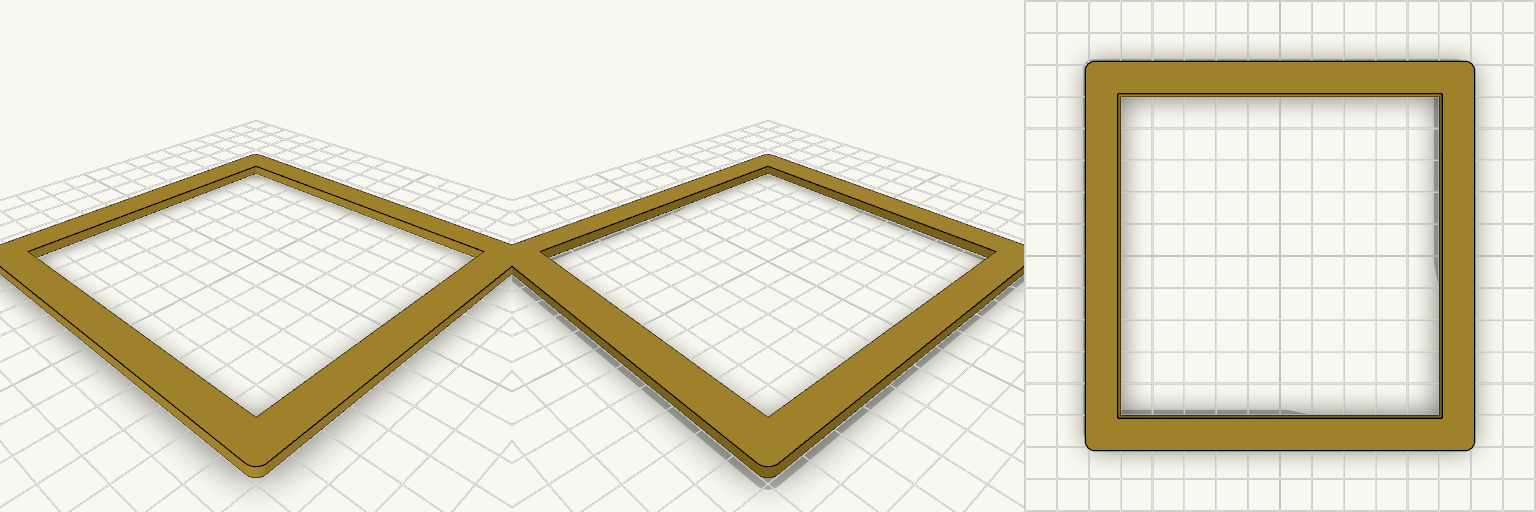

Plush Canvas Boundary Gauge
