Advent Calendar Drawer With Grip
Created today
Description
A single replacement drawer for an Advent calendar: open-top box, 41.5 × 23.5 × 44 mm, 1.5 mm walls and floor, with the number engraved on the front above a small square grip.
Remix hooks
- Grip size: 8 × 5 mm face, 4 mm projection (5 mm deep body, 1 mm embedded). Make it wider for easier pulling.
- Grip rounding: 0.8 mm edge rounding. Raise it for a softer look, drop it for a sharper square.
- Number: 8 mm Roboto, engraved 1 mm deep near the top. Change the digit for other drawers.
- Fit: trim 0.2 mm off width and height if it binds in the frame.
- Pairs with: the other numbered drawers, since the front footprint is unchanged.
Images
More like this
Explore more in Home & Fixtures →
Toolbox Front Latch Replacement C-Clip
Replacement front latch for a STUFF Basic 20 inch toolbox, for when the original hinge loop or hook has snapped. One solid C-profile part, 61 mm wide, with an open clip at the bottom that snaps onto the box pin and a filleted L hook at the top. Key numbers Overall: 61 mm wide, 65 mm tall, 18 mm deep Wall: 5 mm throughout Clip: 5.3 mm bore, 15.3 mm outer diameter, 5 mm gap Hook: 13 mm forward, 5 mm inside fillet, 2 mm outside fillet, 2.5 mm rounded tip Printing Material: PETG Supports: none Orientation: lay it on its 61 mm side so the C-profile faces up
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.

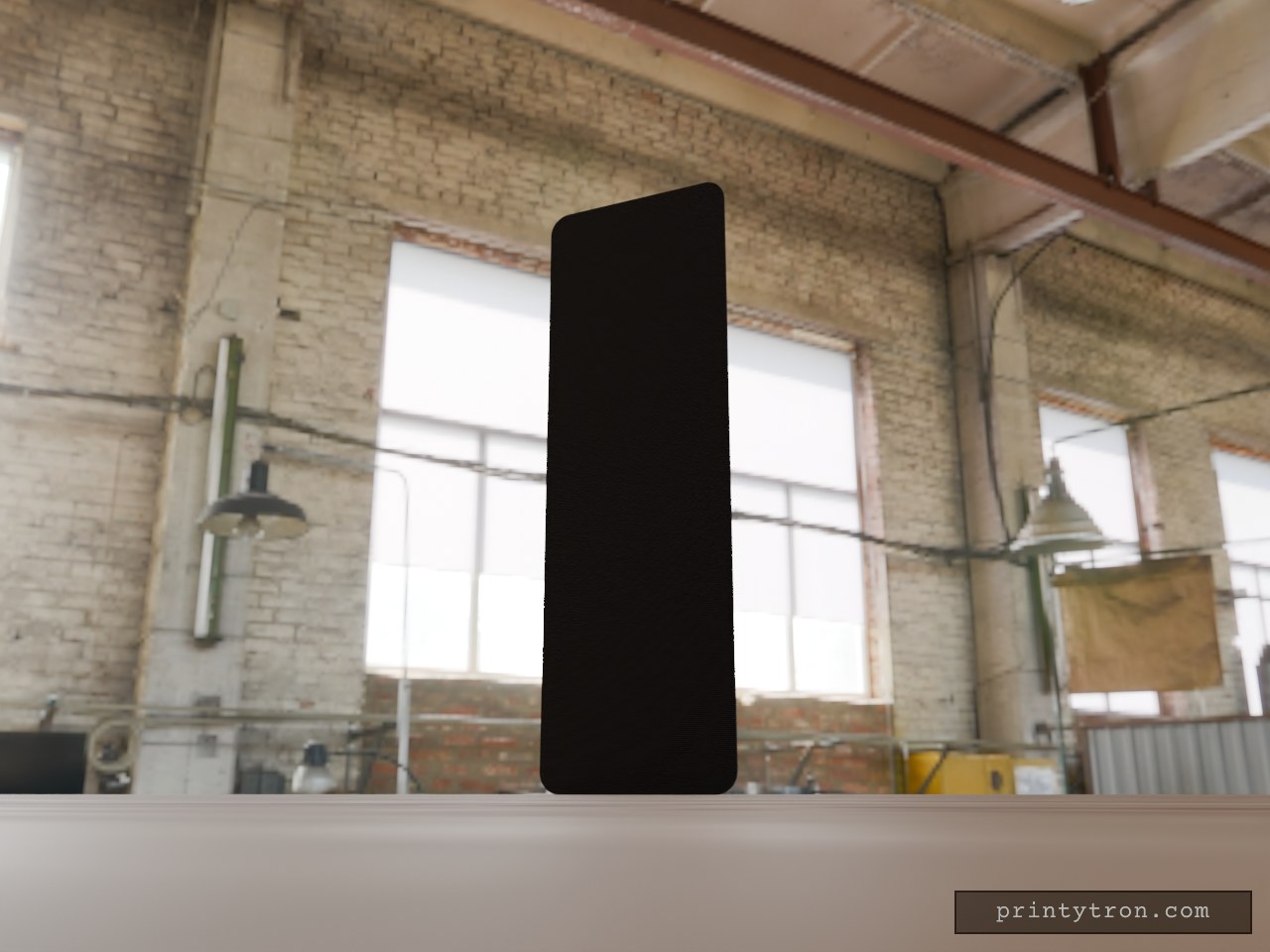

Veil — Air Freshener Front Plate
