Arcade Console Desk Clock Case
Created today
Description
A compact desk-clock enclosure with a gaming-rig attitude: chamfered shoulders, vented flanks and grooved front stripes under the OLED window, like a mini console from a late-night LAN party.
- Window for a 0.96" OLED on the front
- Standoffs for an ESP32 WROOM-32 devkit
- USB slot at the back
- Four corner screw bosses and a separate screw-on lid
- Side vent slots for airflow
Images
More like this
Explore more in Desk & Tech →
Endgame1
Exploded assembly of a two-piece enclosure for an ESP32-WROOM-32 board (52 x 28 x 14 mm) and a 1.3-inch square OLED module (34 x 34 x 8 mm). The lower chassis has a 52.4 x 28.4 mm pocket, a USB-C cutout on the +X end, and debossed text: "END" on the front wall and "GAME" on the back wall. The lid has a 34.2 mm square window for the OLED. Brass inserts, M3 screws and the OLED module float above the chassis on a flat mat base. Outer size: 64 x 42 mm; chassis height 16 mm, lid thickness 3 mm Board pocket: 52.4 x 28.4 mm, 14 mm deep, 2 mm floor OLED window: 34.2 x 34.2 mm Corner holes: 4 positions at ±29.1 x ±17.9 mm; 4.2 mm for heat-set inserts in the chassis, 3.5 mm clearance in the lid USB-C cutout: 9.2 x 3.4 mm with rounded ends, on the +X end Text: 1 mm deep debossed lettering, 6 mm tall Exploded layout shows inserts, OLED module and M3 screws in assembly order; the mat is a reference surface, not part of the enclosure Material: PETG or clear/natural filament suits the frosted look; print the chassis and lid separately
Endgame
What it's for A two-piece enclosure for an ESP32-WROOM-32 dev board with a 1.3 inch square OLED display in the lid. Shown exploded with brass heat inserts and M3 screws aligned to the corner holes. Dimensions Board pocket: 52 x 28 mm, 14 mm deep (0.2 mm total clearance added so it actually fits) OLED window: 34 x 34 mm Outer size: about 56.8 x 40.4 mm, 2.4 mm walls Front USB-C slot, 10 x 4 mm Remix ideas Add vent slots for cooling. Make the lid thicker to recess the 8 mm display module. Add a cable pass-through at the rear. Print notes A true zero-clearance fit is impractical on FDM, so a small clearance is included. Dimension lines and the cutting mat from the reference image are not modelled.

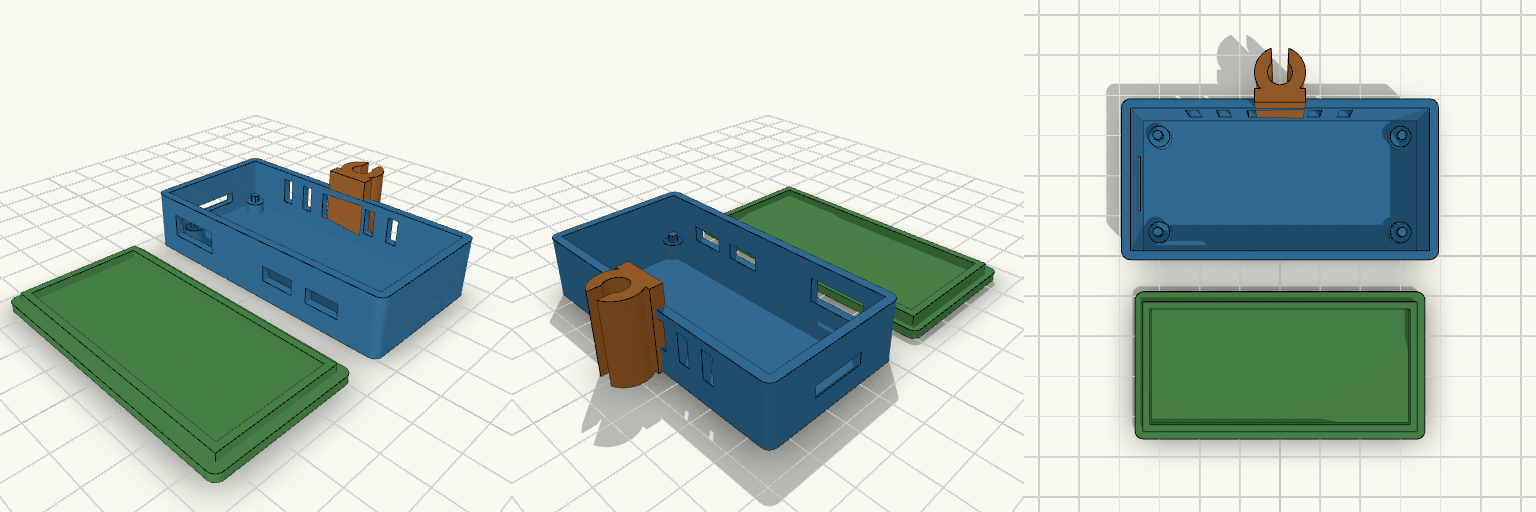

Select Mini Pi Zero Case With Hook
A compact Raspberry Pi Zero enclosure with a snap-on lid and a vertical C-shaped hook on the back wall. The hook clips sideways onto a vertical screw or rod, so the case hangs beside a printer such as the Monoprice Select Mini. Interior fits the 65 × 30 mm board, with 58 × 23 mm standoffs and pins Cut-outs for microSD, mini HDMI, USB and power Vent slots along the back wall Hook bore sized for a 5 mm screw shank, with a 3.8 mm snap opening Lid prints flat beside the case, with no overlapping parts

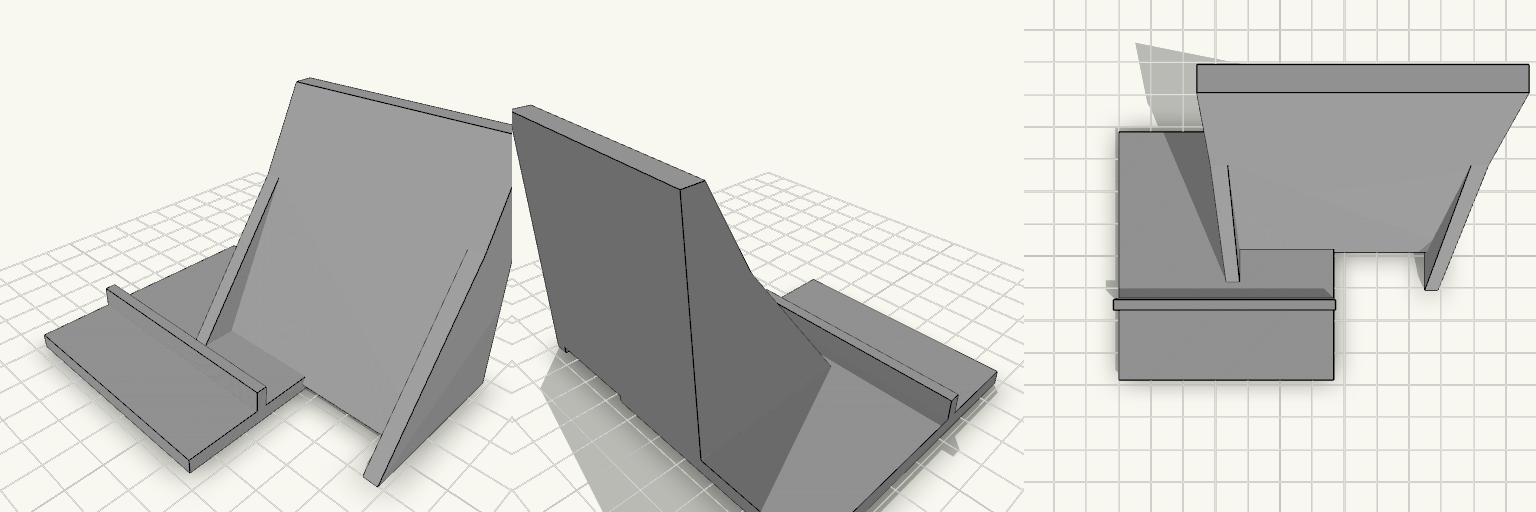

StudyDock Desktop Phone Stand
What it's for A one-piece desktop phone stand for students, holding a phone at a 65° viewing angle on a desk. Dimensions 65 mm wide, 75 mm deep, 70 mm tall 4 mm flat base, 4–5 mm walls 14 mm deep shelf with a 6 mm front lip Two triangular side supports Remix ideas Widen the shelf for phones with cases. Add a cable slot through the backrest. Lower the backrest angle for typing-height viewing.

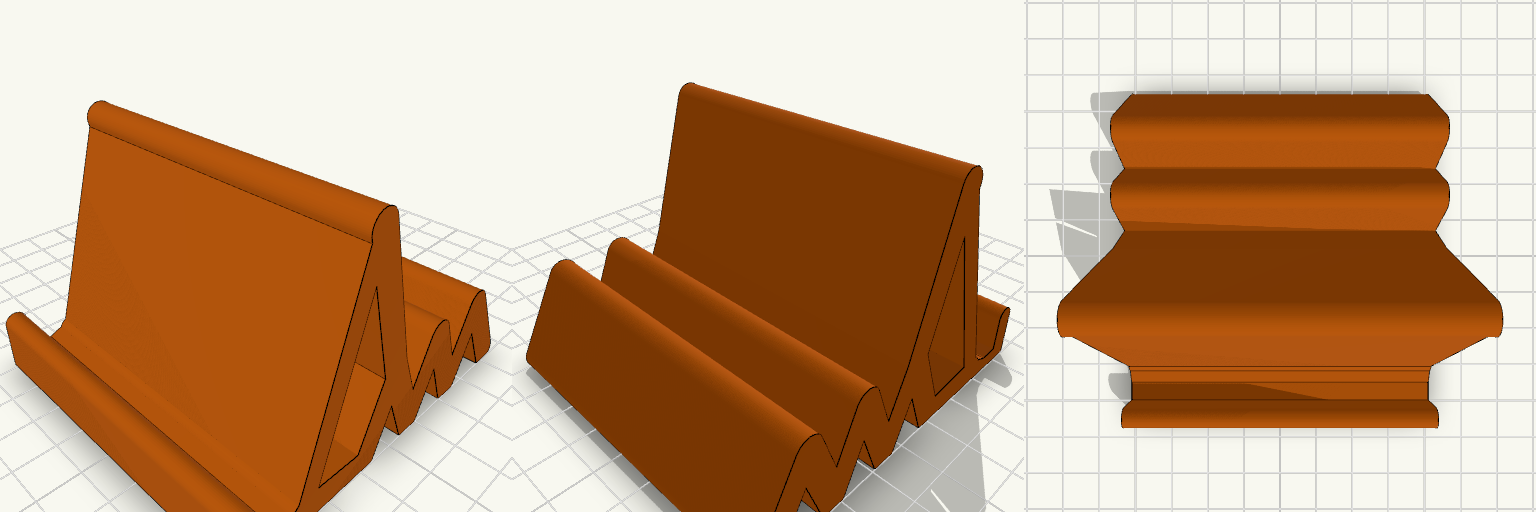

Snake Tail Phone Stand
