ATEN KVM Under-Desk Mount
Created today
Description

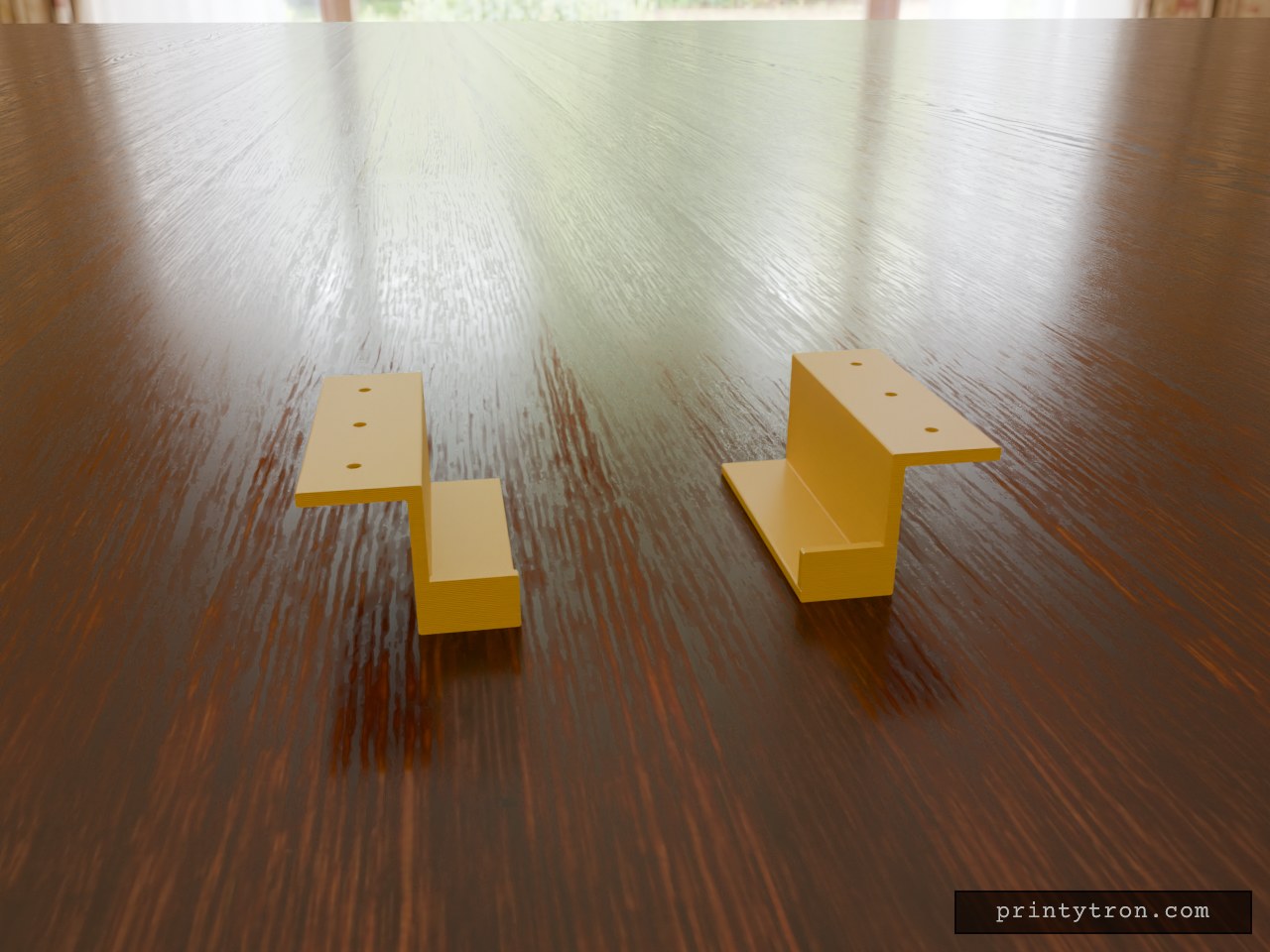

Under-desk sliding bracket pair tailored for the ATEN CS1944DP and similar 44mm-height desktop devices. Built with outward-facing mounting flanges for easy screwdriver access and a rear stop to prevent the unit from pushing back when plugging in cables.
- Clearance: 45.5mm internal height leaves 1.5mm of vertical wiggle room, accommodating a strip of standard foam tape to add friction and protect the chassis.
- Hardware: Countersunk holes oriented upwards, suited for #8 or M4 flathead wood screws.
- Versatile: Two-piece design means width isn't constrained. Space them out to match the switch exactly.
- Printing: Best sliced by rotating 90 degrees onto the outer side walls to print completely support-free.
Photos
Technical views
