BenchWeigh — Micro Scale Chassis
Created 12 days ago
Description
A straightforward two-piece chassis designed to house a standard 75mm 1kg load cell, an HX711 amplifier, and an ESP32 dev board.

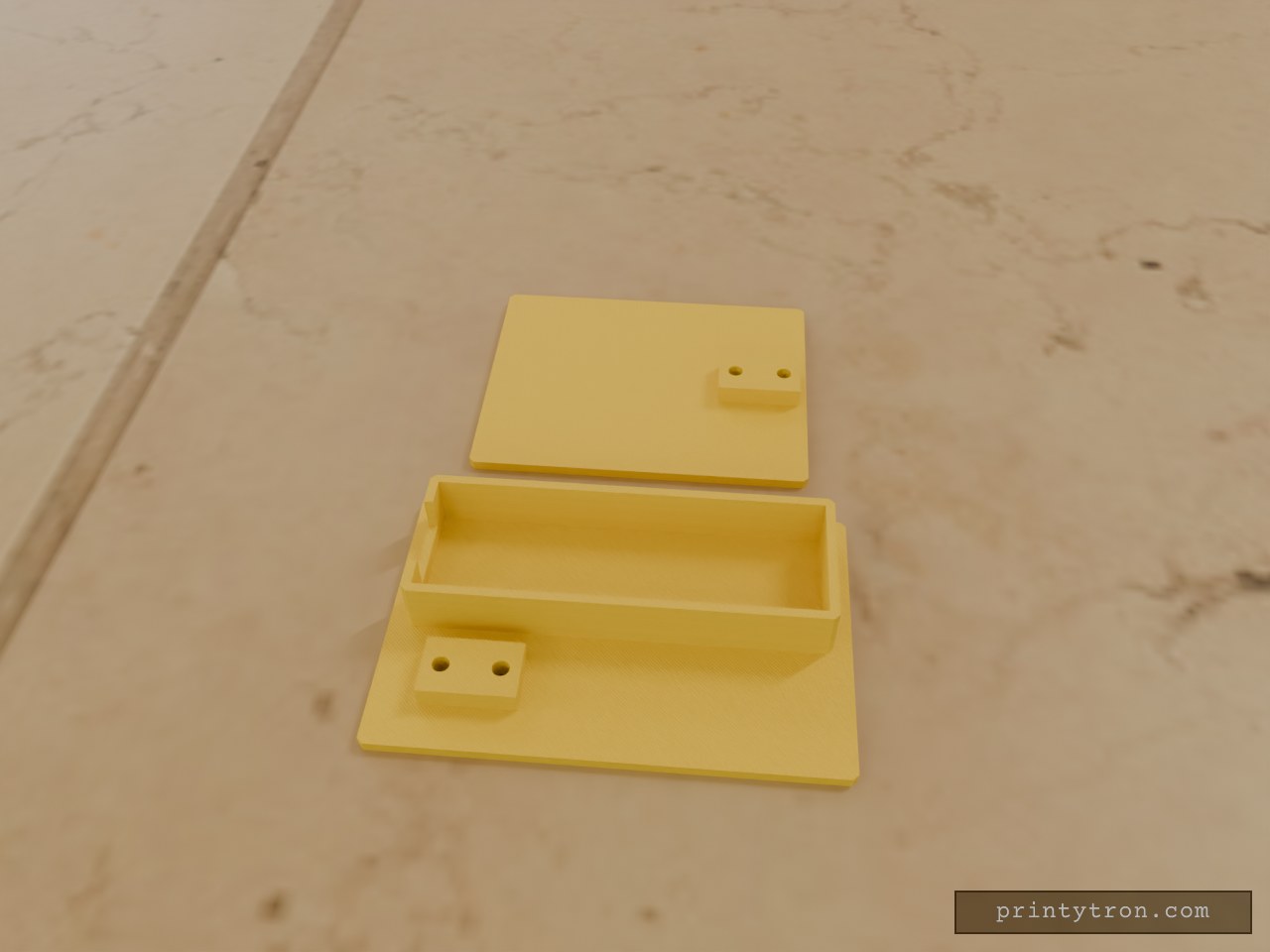

The base unit includes a raised 6mm pedestal to secure the fixed end of the load cell, giving it the clearance it needs to deflect. A walled rear compartment keeps the amplifier and microcontroller contained, with a side cutout for routing cables to the load cell. The weighing platform is printed alongside it; it features a matching pedestal for the floating end of the load cell.
Dimensions
- Base Footprint: 120mm × 80mm
- Weighing Platform: 100mm × 80mm
- Load Cell Pedestals: 25mm × 16mm × 6mm
- Electronics Bay: 105mm × 35mm (internal)
Print notes
Both parts print flat on the bed. The screw holes are spaced at 15mm for standard M4 bolts and include 3mm counterbores on the print surfaces so the screw heads sit flush when assembled. The platform flips over to mount onto the floating end of the load cell.
