Bote de basura innovador
Created today
Remixed once
Description
Bote de basura con tres compartimentos para orgánicos, reciclables y basura general. Evita que todo termine mezclado en una sola bolsa y que haya que tocar la tapa con las manos sucias.
Cada compartimento tiene su propia abertura con trampilla de color. Dos sensores al frente detectan a la persona que se acerca, una pantalla indica el nivel de llenado, un panel solar inclinado en la parte trasera alimenta la electrónica y cuatro ruedas permiten moverlo.
Datos clave
- Diámetro del cuerpo: 240 mm; altura total sin panel: unos 346 mm
- Tres sectores de 120° separados por divisiones de 3 mm
- Aberturas de 76 mm de diámetro, una por compartimento
- Ruedas de 36 mm en cuatro soportes
- Impresión por piezas: cuerpo, tapa, chasis, ruedas y panel; paredes de 3 mm, sin soportes en el cuerpo
- La electrónica (sensores, pantalla, motores) no está incluida: el modelo solo aporta alojamientos y forma
Images
More like this
Explore more in Home & Fixtures →

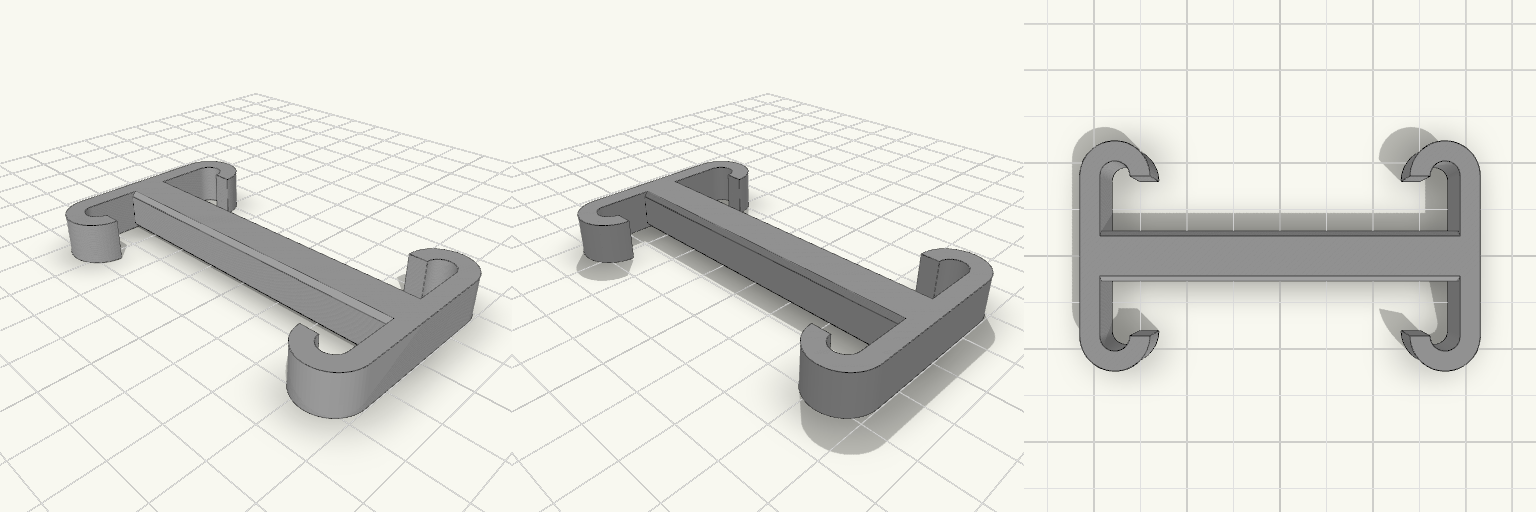

Figure8 — Clip-On Cord Winder
