Brændpunktsskinne til ellipsetegning
Created today
Description
En flad skinne med 11 huller og to pinde, der bruges til at tegne ellipser med en snorløkke på papir. Skinnen ligger fladt på papiret og kan trykkes ned, mens der tegnes. Pindene sættes ind nedefra og låses af en krave i en fordybning.
Remix-muligheder
- Hulafstand: 15 mm i dag. Mindre afstand giver finere trin i excentriciteten.
- Antal huller: 11, med 0 i midten og 1-5 til hver side. Skinnen er 170 × 18 × 4 mm og kan gøres længere ved at øge antallet.
- Pasform: Hul 8,4 mm, skaft 8 mm. Justér 0,1-0,2 mm efter printeren.
- Numre: Graveret 0,6 mm dybt i 3,2 mm høj skrift. Hver enhed svarer til 15 mm fra midten.
- Kombinerer med: En snorløkke på ca. 200 mm og A4-papir.
Images
More like this
Explore more in Workshop & Tools →
Klipper Display and Status Console
Compact left-side mounting enclosure for Klipper printer telemetry, designed specifically for the Ender 3 Pro 2040 vertical extrusion. Hardware Compatibility: Fits a 1602A I2C LCD, a 32x32mm HW-109 MAX7219 LED Matrix, and a standard 5mm RGB LED. Internal Clearance: 36mm cavity depth cleanly clears standard I2C backpacks. Mounting System: Left-oriented 5mm side flange using dual slots for M4 t-nuts. Flange sits flush to the bottom, leaving top clearance for gantry travel. Assembly: Snap-fit 2mm front panel with internal screw bosses; back plate secured via four M3 interior corners. The housing prioritises rigidity and short wiring paths over bulk, anchoring firmly without compromising structural frame limits.
Bajan Wave — Flag Mold Master
Bajan Wave is a purpose-built 3D-printable master designed for silicone mold-making. It features a sweeping, parametric undulating perimeter that mimics a flag fluttering in the wind, standing out against basic rectangular forms. The basin precisely follows this waving profile and includes the defining elements of the Barbados national flag—vertical section dividers and the iconic broken trident, carefully proportioned to match official specs. The entire underside is perfectly flat, ensuring it sits securely against your casting box base without flashing underneath, while a consistent 8mm perimeter rim includes two integrated resting grooves. Specifications Overall Master Size: 120 mm x 70 mm x 15 mm Basin Floor: 4 mm thick Rim Width: 8 mm constant width following the wave Relief Details: Features a 2 mm raised broken trident and divider bars for high-contrast resin fills.
Ojačana Vakuum Račva Sa Navojima
Ojačana račva u obliku slova T za spajanje cevi i vakumetra. Glavno telo: Prečnik 21 mm, dužina 44 mm, zatvoreno sa jedne strane. Na otvorenom kraju nalazi se integrisani ženski 1/4" BSP navoj za vakumetar, sa plitko oborenom ivicom. Krak sa navojem: Ukupna dužina 27 mm (12 mm glatki deo, 15 mm navoj na vrhu). Spoljni navoj je M12 sa korakom 1.25. Kroz njega prolazi kanal od 6.2 mm. Glatki krak: Dužina 26 mm, spoljni prečnik 10 mm. Kanal za protok je 6 mm. Ojačanja na spoju oba kraka sa glavnim telom smanjuju stres pod uglom od 90 stepeni i sprečavaju lomljenje slojeva tokom upotrebe.

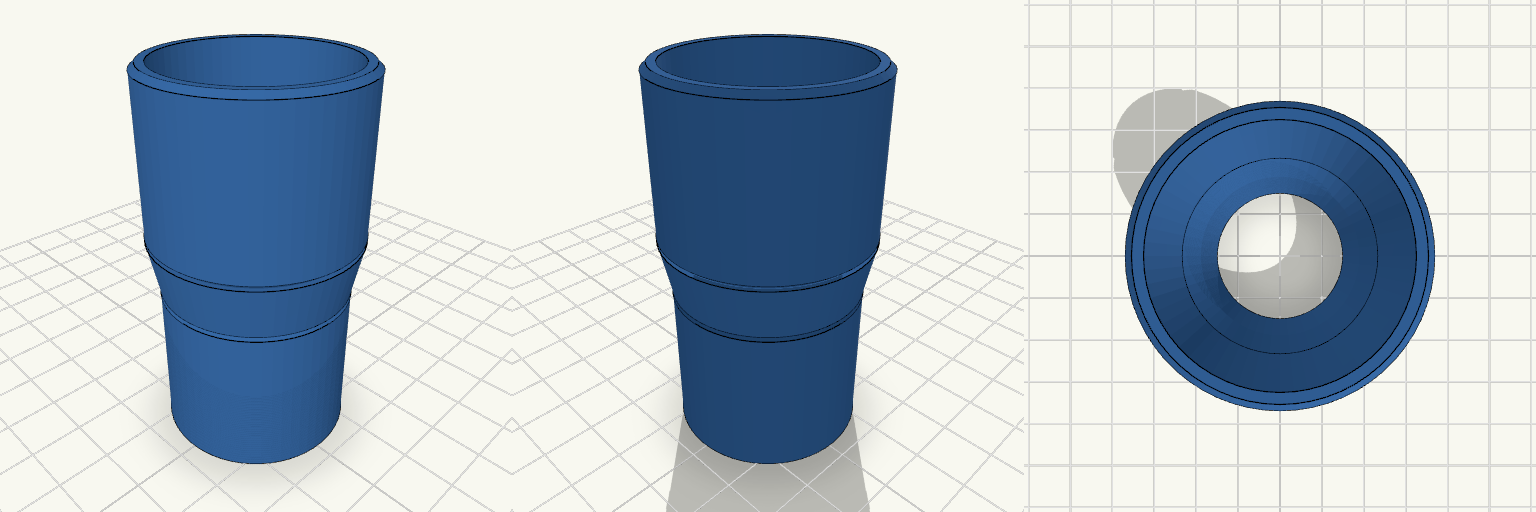

Metabo Schlauchadapter 35mm zu 39mm
