BYTEBOX Logo-Platte 114,5 x 105,3 mm
Created today
Description
Schwarze Rechteckplatte mit erhabenem, gelbem BYTEBOX-Logo (Würfel und Pixelschriftzug) für den zweifarbigen FDM-Druck. Das Logo liegt vollständig innerhalb der Plattenfläche und ist mittig ausgerichtet.
- Platte: 114,5 × 105,3 × 1,5 mm, flache Unterseite
- Logo: 0,8 mm erhaben, Gesamthöhe 2,3 mm
- Logobreite: ca. 95 mm, ca. 9 mm Rand links und rechts
- Zwei getrennte Körper: Grundplatte und Logo
- Schrift: eckige Pixelschrift (Press Start 2P)
Images
More like this
Explore more in Decor & Display →
Helix — Open-Frame Twisted Fin Lamp Shade
Helix is a flared lamp shade with no solid wall. 72 thin fins spiral through a 60° twist as the shade widens from the base to the top, and three low reinforcing rings hold the whole frame together. The result reads like a lantern or woven cage, and the light comes through as spiralling slats of shadow. The fins and rings are matched on purpose: each fin reaches inward only as far as the rings do, so the inner edge stays clean from bottom to top. A small spoked fitter ring at the base seats the shade over a lamp holder. Dimensions Height: 130 mm Base diameter: about 90 mm Top diameter: about 140 mm Twist: 60° over the full height Features 72 twisted, flared fins, 1.2 mm thick Three low-profile rings at the bottom, middle and top, 3.5 mm tall Fin depth matched to the ring depth (about 6.6 mm at the base, scaling with the flare) Spoked fitter ring at the base, 3 mm tall Print notes Print upright with the fitter ring on the plate. Slow speeds help, since the fins are thin. Use a cool LED bulb only. Fit to a specific socket is untested, so check the fitter ring against your holder.
Cursive Home Neon Strip Holder
A cursive "Home" sign form with an open channel running through every letter, made for pressing flexible LED neon strip into place. Fill the channel, wire it up, and the script shape glows like a custom neon sign. Script lettering in a heavy brush style, roughly 80 mm letter height 1.6 mm walls around an open top channel 2 mm floor, 10 mm overall height Prints flat with no supports Print it in white or black depending on how you want the unlit sign to look. Strip width differs between brands, so check the channel width against your strip before printing.
Welcome — Cursive Neon Strip Holder
Welcome is a script-lettered sign form with an open channel running through every letter, built for pressing flexible LED neon strip into place. Fill the channel, wire it up, and the flowing lettering glows like a custom neon sign. Features Heavy brush-style "Welcome" lettering 1.6 mm walls around an open top channel 2 mm floor, 10 mm overall height Wire exit holes through the floor at the ends of the word Print notes Prints flat with no supports Strip width varies by brand, so check the channel width against your strip first

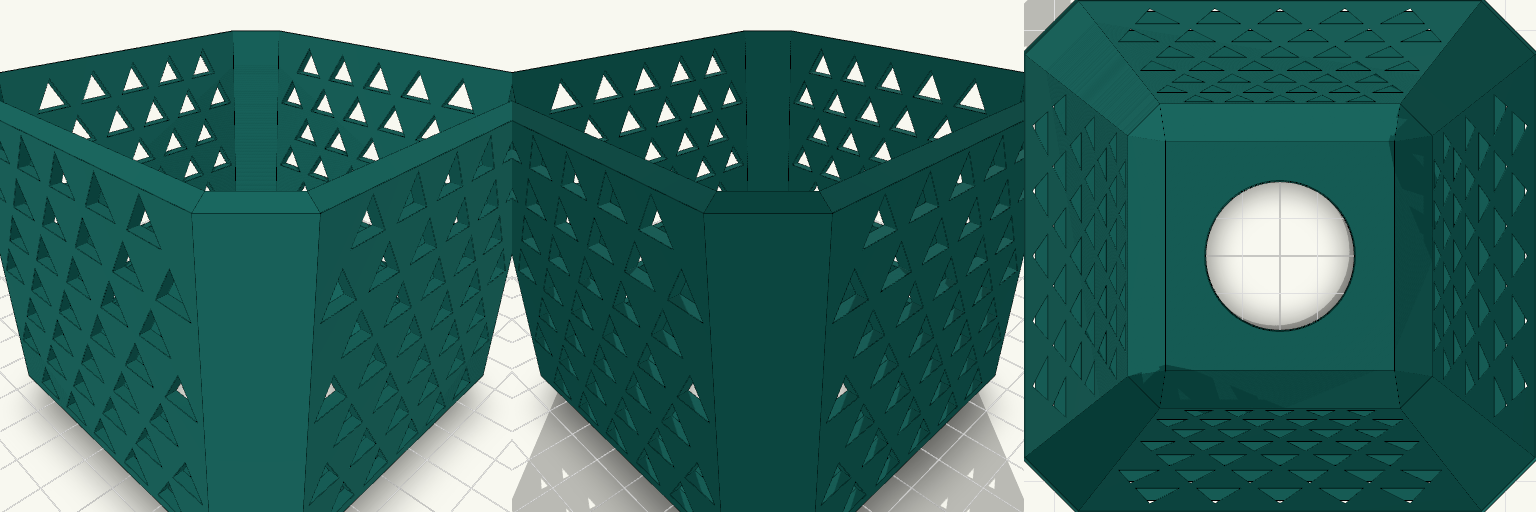

Faceted 80mm LED Tealight Lantern
