Caja sci-fi para ESP32, RCA y driver
Created today
Description
Caja para electrónica con ESP32, dos salidas RCA, jack DC hembra y un driver que no entraba cómodo: los conectores de la pared derecha quedaban pegados al driver. Ahora la caja es más larga y hay luz entre ambos.
- Medida exterior: 132,8 × 60 × 28,8 mm.
- Separación: unos 26 mm entre los postes del driver y la pared con RCA y jack.
- Conectores: dos agujeros de 8,2 mm (RCA) y uno de 11,2 mm (jack DC), frente a la ranura USB.
- Montaje: 4 tornillos M3 en las esquinas; la tapa lleva rejillas y ranuras decorativas.
- Impresión: base y tapa por separado, sin soportes si se imprime la base apoyada en el fondo.
Images
More like this
Explore more in Storage & Organization →
150mm Borg Friendship Vault
Zak's Borg Friendship Vault. Three-piece print, designed to drop in and seat clean without fasteners. Overall Footprint: 150mm x 150mm. Total Height (Assembled): 145mm. Internal Payload Bore: 65mm diameter x 105mm depth. Cage Windows: 90mm span, designed to bridge flat across the top without support on well-calibrated machines. The top cap runs a 118mm square boss to locate itself on the outer frame, plus a 64.5mm cylindrical plug to lock into the core and prevent horizontal slop. Print the outer cage and cap in black PETG; run the core in fluorescent PLA. Keep your cooling aggressive for the long window bridges.

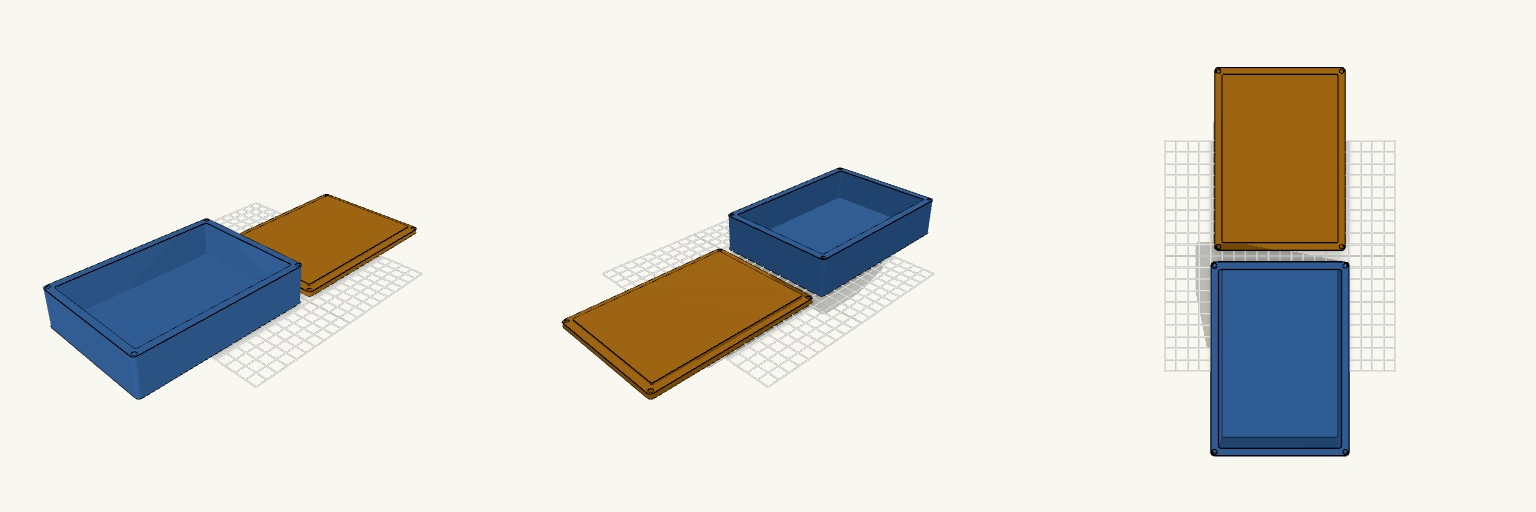

Magnetic Enclosure Storage Box
A robust two-piece enclosure designed around magnetic closures and standard 100x145x30mm internal storage requirements. Remix Hooks Wall Thickness: Set to 6mm to ensure the 4mm corner magnets have plenty of structural meat on both sides. Registration Lip: The lid features an inset lip with 0.3mm clearance to keep the halves aligned—the magnets just pull it shut, they don't have to fight shear forces. Bottom Magnets: 7mm diameter cutouts are positioned underneath for docking or stacking. Adjust their X/Y offsets if you're matching a specific grid plate.
Archiv-Einschub: Schiffe versenken
Ein maßgefertigtes, modulares Schubladen-Regal für Brettspiele und Kartensets (hier ausgelegt auf 150 x 45 mm Boxen). Das Set besteht aus drei Teilen: Regalgehäuse: Eine stapelbare, robuste Außenhülle mit Fase. Schublade: Passgenau mit 0,8 mm Spielraum zum einfachen Herausziehen. Ein Griff an der Front erleichtert das Greifen. Inlay-Buchstaben: Die Schrift ist als 1,5 mm tiefe Aussparung in der Frontplatte angelegt. Die separat gedruckten Buchstaben sind minimal verkleinert (0,15 mm Toleranz) und können nach dem Druck passgenau in die Front eingedrückt werden. Ideal für ein aufgeräumtes Regal, bei dem man jedes Spiel sofort auf der Frontblende erkennt.

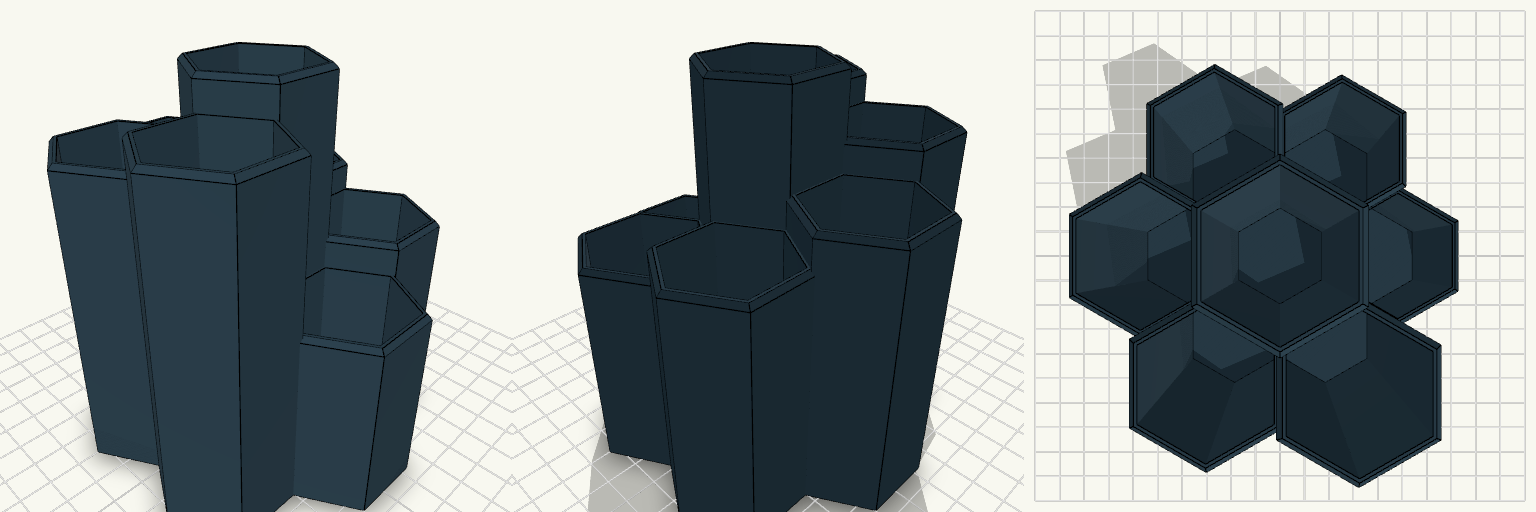

Cascading Hex Organizer
