Chaîne articulée de 40 maillons clipsables
Created today
Description
Une chaîne imprimée d'un bloc se désassemble au moindre effort, et une chaîne trop courte ne sert à rien. Cette version aligne 40 petits maillons à rotule, à clipser à la main pour obtenir une chaîne d'environ 190 mm.
Chaque maillon a une rotule d'un côté et une douille à quatre pétales de l'autre. Les pétales plient au passage de la rotule puis se referment, ce qui laisse la chaîne se plier dans toutes les directions et se démonter sans outil.
Chiffres utiles
- Largeur d'un maillon : 4,6 mm
- Pas entre maillons : 4,8 mm
- Longueur assemblée : environ 190 mm (40 maillons)
- Jeu théorique : 0,15 mm par côté, à ajuster selon l'imprimante

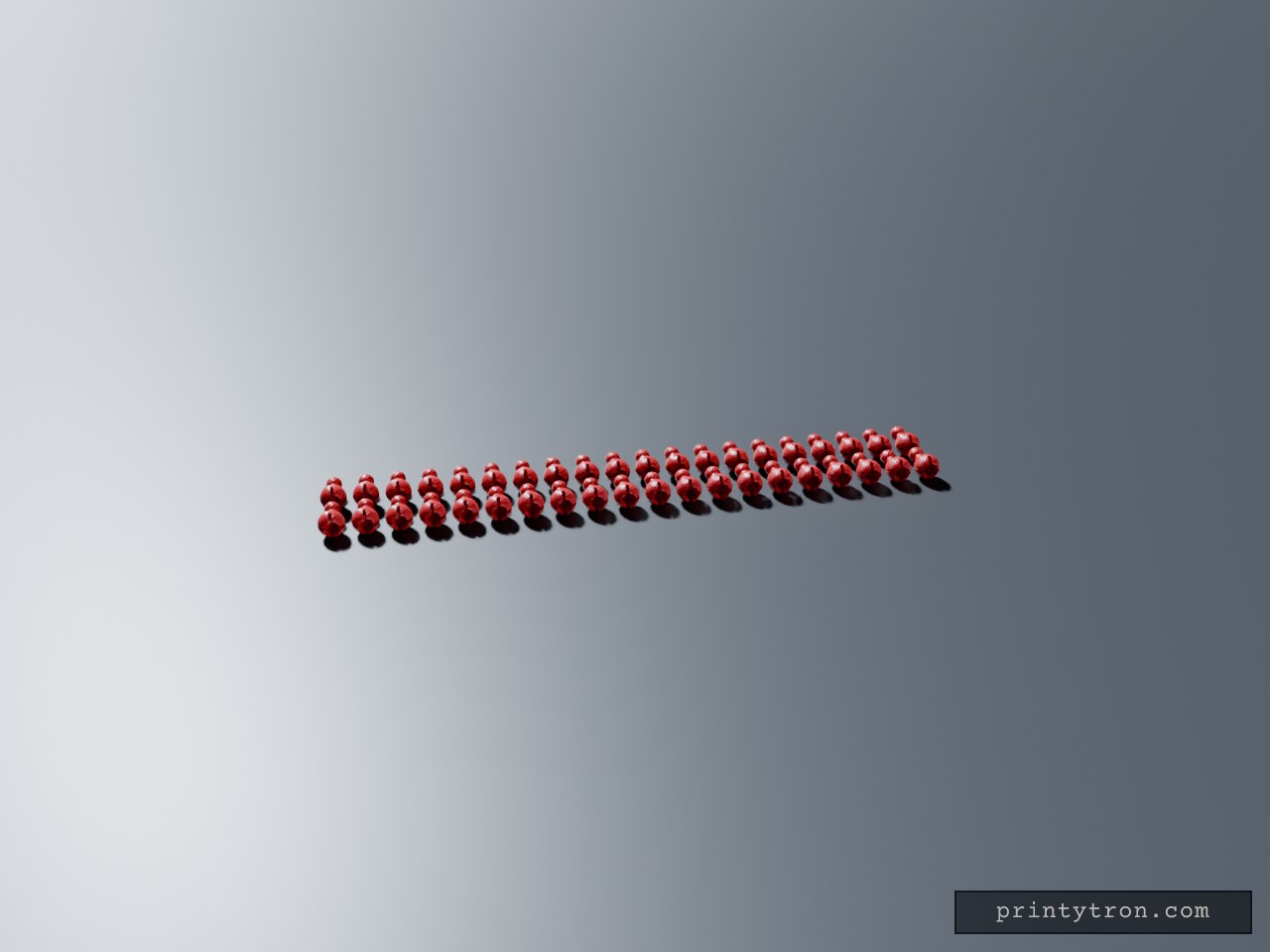

- Impression : maillons à plat, en deux colonnes de 20, sans supports
- Matériau conseillé : PETG, plus tolérant que le PLA pour les pétales fins
- Buse 0,4 mm, hauteur de couche 0,12 à 0,16 mm
