Cross Arm Traffic Light Pole Model
Created today
Description
A miniature traffic light pole with a horizontal cross arm, built as a single-piece STEM teaching model. A hexagonal base keeps the 90 mm round pole upright. The 45 mm arm carries a slide-in holder at its end for a 52 × 22 mm traffic light PCB module.
- Pole: 12 mm diameter, 90 mm tall, on a 44 mm hexagon base
- Arm: 45 mm from the pole axis, with a 45° brace underneath so it prints without support
- Holder: 2.2 mm walls, edge lips, and a top stop. The board slides in from below
- Rear clearance: 6 mm gap behind the board, open on the cable side for the 5-pin connector
- Board fit: assumes 1.6 mm thickness with 0.2 mm play per side
Prints upright in PLA as one piece.
Images
More like this
Explore more in Decor & Display →
Moldura A4 Vertical 250 × 337 mm, Fundo Aberto
Moldura para folha A4 (210 × 297 mm) na vertical, em duas metades unidas por pinos-guia, com a folha entrando por uma fresta na travessa superior. Medidas Externo: 250 × 337 × 15 mm Abertura visível: 202 × 289 mm, lábio frontal de 5 mm Bolso do papel: 212 × 299 mm Fresta superior: 206 mm de largura Fixação e encaixes 4 pinos-guia de Ø5 × 8 mm na metade superior, com alojamentos de Ø5,6 mm na inferior Keyhole para prego: entrada de Ø10 mm e fenda de 4,2 mm, na travessa traseira superior Gancho na borda inferior frontal Verifique antes de imprimir Cada metade mede 250 mm de largura, acima dos 220 mm de uma impressora comum. A traseira é aberta abaixo da travessa do keyhole, então nada segura a folha por trás. Não serve para papel muito fino ou ondulado.
Mandarin Community Town Model
A tabletop town for practising Mandarin place words, where flat labels get lost. Each building, sign and park area carries its Chinese characters, pinyin and English on the front face, so the vocabulary sits right on the thing it names. Details that matter Base: 200 × 200 mm, 4 mm thick plate Buildings: hospital, library, community center, store and school, each 46 × 28 mm footprint Extras: park with pond, road, footpaths, houses, cars, trees, lamps and figures Colour regions: ground, road, walls, roofs, doors, lettering, signs, trees, lawn, pond, paths Print: large bed needed (or scale down); multicolour or paint by region; lettering is 0.8 mm raised, so use a 0.4 mm nozzle

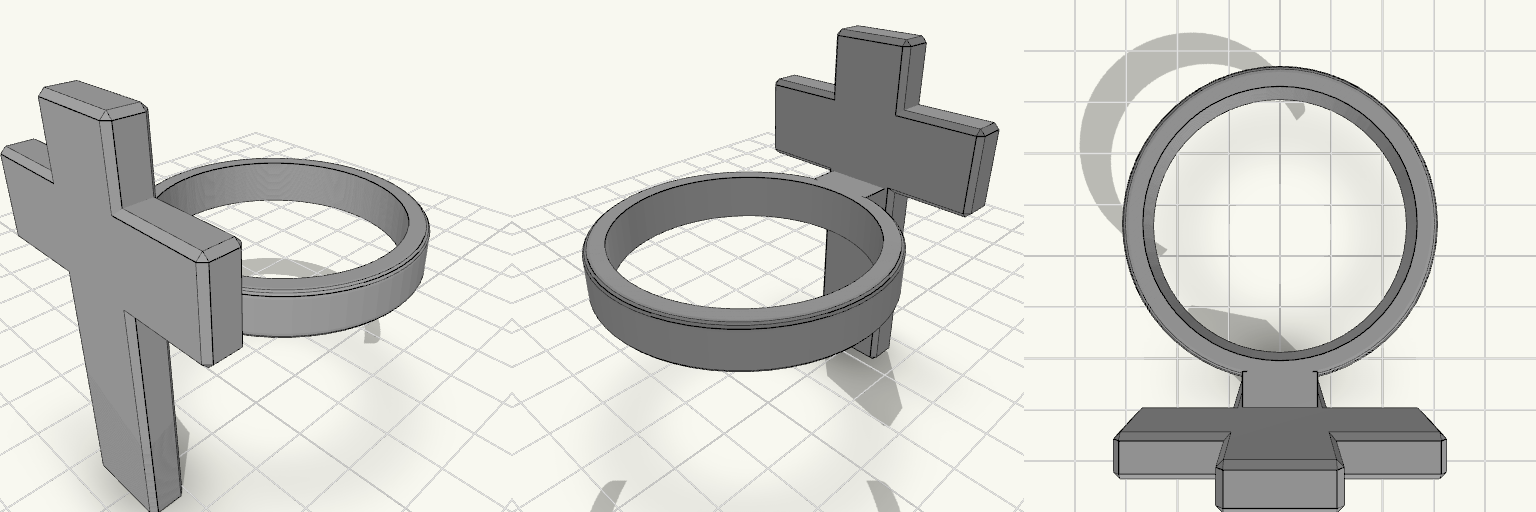

Anel de Guardanapo com Cruz
