Cyclops Visor Smart Goggles Chassis
Created yesterday
Description
A wearable housing for smart-glasses electronics, with a chunky sci-fi visor silhouette: twin rounded lens bays, front camera ports, and downward sensor holes. Hollow temple arms hold speakers and haptics, and a separate electronics box carries the main board.
The frame now comes with two cover caps that close the rear eye cavities, so the electronics inside stay protected.
Design notes
- Frame caps: 56 x 48 mm plates with a plug lip that seats in each eye cavity
- Camera ports: 8 mm wide, 24 mm deep
- Electronics box with its own lipped lid
- Arms hinge with 3 mm pins or filament offcuts
- Prints as separate flat parts, no supports needed
Images
More like this
Explore more in Desk & Tech →
マイコンケース②
A two-part enclosure for a 47 × 57 mm STM32F103 board, with a screw-down lid, external mounting flanges and a cable opening at the connector end. The base has 2.5 mm walls, four board bosses at 37 × 50 mm spacing holding the board 5 mm above the floor, and four corner posts for the lid screws. The lid has a locating lip and four clearance holes. Triangular gussets reinforce the flange-to-wall joints and the wall-to-floor joints, and the internal corners are rounded. Total height with lid: 35 mm Connector end extended 20 mm (+Y), with an adjustable cable opening Lid screws: M2.5 self-tapping, 2.2 mm pilot holes in the corner posts Adjustable: hole spacing and offset, boss height and hole size, flange hole size and positions, cable opening, extensions Board hole spacing is approximate and should be checked against the real board
Fidget Spinner Planetario Ø70 mm
Fidget spinner a ingranaggi planetari stampabile in un solo pezzo (print-in-place), diametro esterno 70 mm, con ingranaggio solare centrale, 5 satelliti e anello esterno dentato internamente. L'anello è alleggerito da 10 fori passanti e non ha coperchi, così gli ingranaggi restano visibili. Diametro esterno: 70 mm, spessore 8 mm Modulo 1,5; solare 15 denti, satelliti 10 denti, corona 35 denti Denti elicoidali a spina di pesce (25°) che trattengono i satelliti senza assi Gioco sui denti: 0,25 mm Fori centrali Ø7 mm (solare) e Ø5 mm (satelliti) per alleggerire Stampa piatta, senza supporti; PLA o PETG

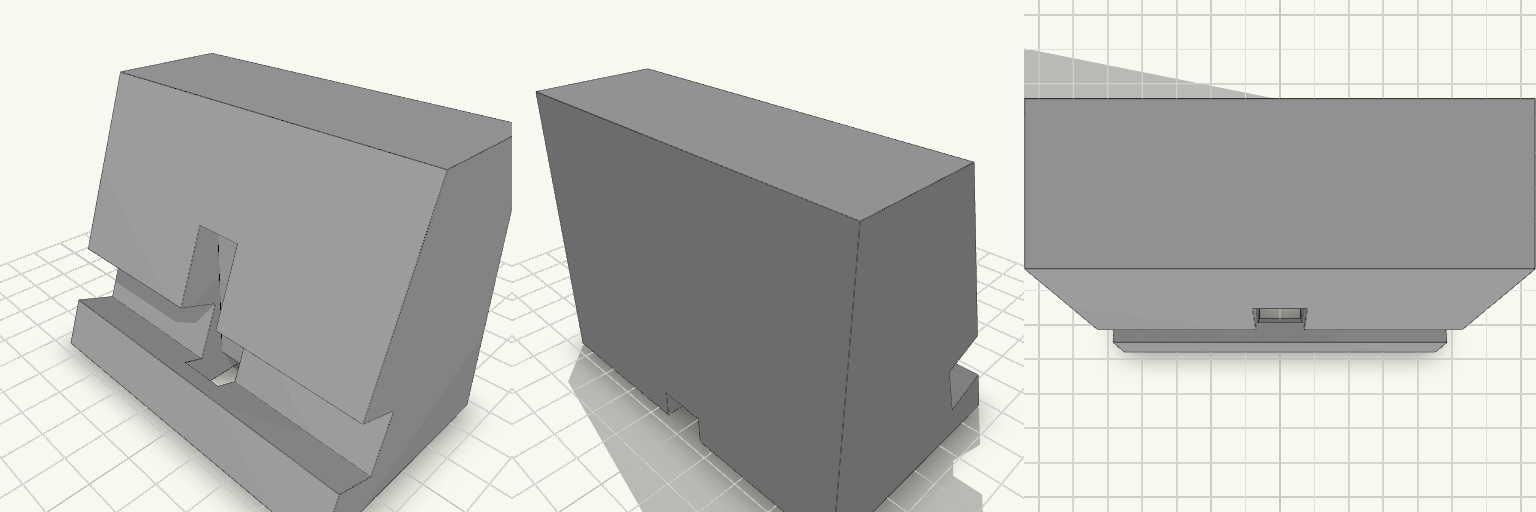

Phone Stand with Cable Channel
