Drehscheibe Neu
Created today
Description
Zwei übereinanderliegende Scheiben (Ø75 mm, je 2 mm dick) mit Randzapfen, die sich gegeneinander drehen lassen. Der Zapfen sitzt an der unteren Scheibe, geht durch die obere und hat oben einen flachen Kopf, der die obere Scheibe hält.
- Untere Scheibe mit Ø30-mm-Mittelloch
- Zapfen Ø6 mm, 30 mm links der Mitte
- Loch in der oberen Scheibe Ø7 mm (0,5 mm Spiel pro Seite)
- Kopf Ø10 mm, 1,5 mm dick, 0,3 mm über der oberen Scheibe
- 0,3 mm Spalt zwischen den Scheiben, druckbar in einem Stück
- Obere Scheibe ist geschlossen, nur Drehbewegung
Images
More like this
Explore more in Desk & Tech →

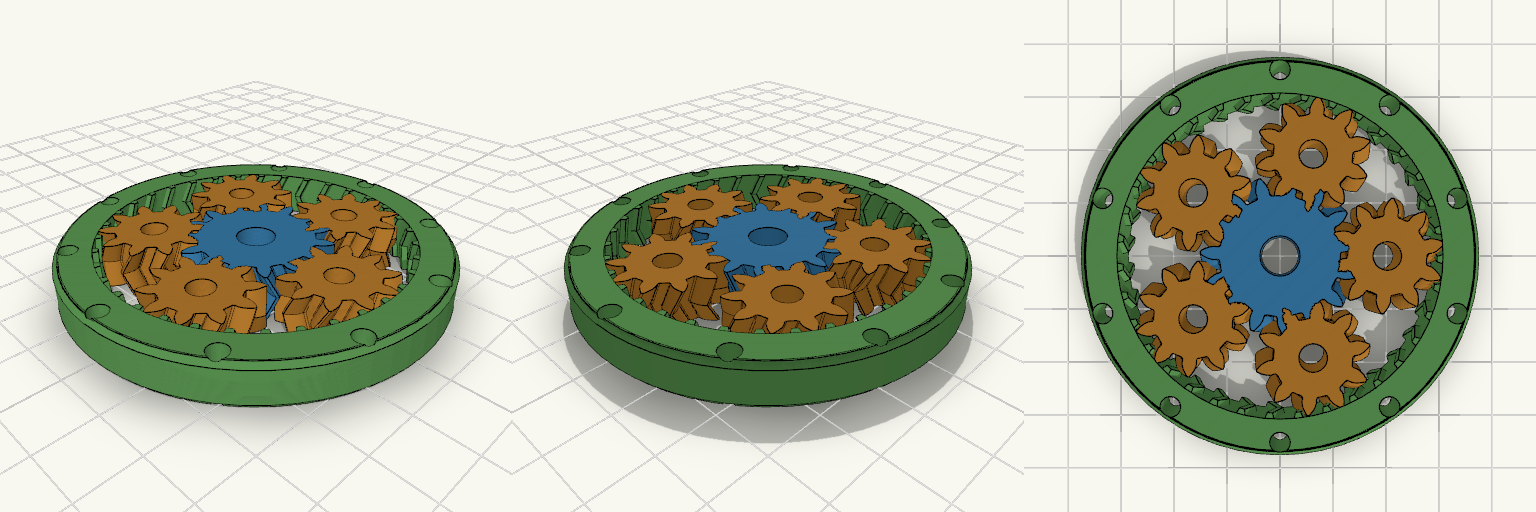

Fidget Spinner Planetario Ø70 mm
