Description
What it's for
A two-piece enclosure for an ESP32-WROOM-32 dev board with a 1.3 inch square OLED display in the lid. Shown exploded with brass heat inserts and M3 screws aligned to the corner holes.
Dimensions
- Board pocket: 52 x 28 mm, 14 mm deep (0.2 mm total clearance added so it actually fits)
- OLED window: 34 x 34 mm
- Outer size: about 56.8 x 40.4 mm, 2.4 mm walls
- Front USB-C slot, 10 x 4 mm
Remix ideas
- Add vent slots for cooling.
- Make the lid thicker to recess the 8 mm display module.
- Add a cable pass-through at the rear.
Print notes
A true zero-clearance fit is impractical on FDM, so a small clearance is included. Dimension lines and the cutting mat from the reference image are not modelled.
Images
More like this
Explore more in Desk & Tech →

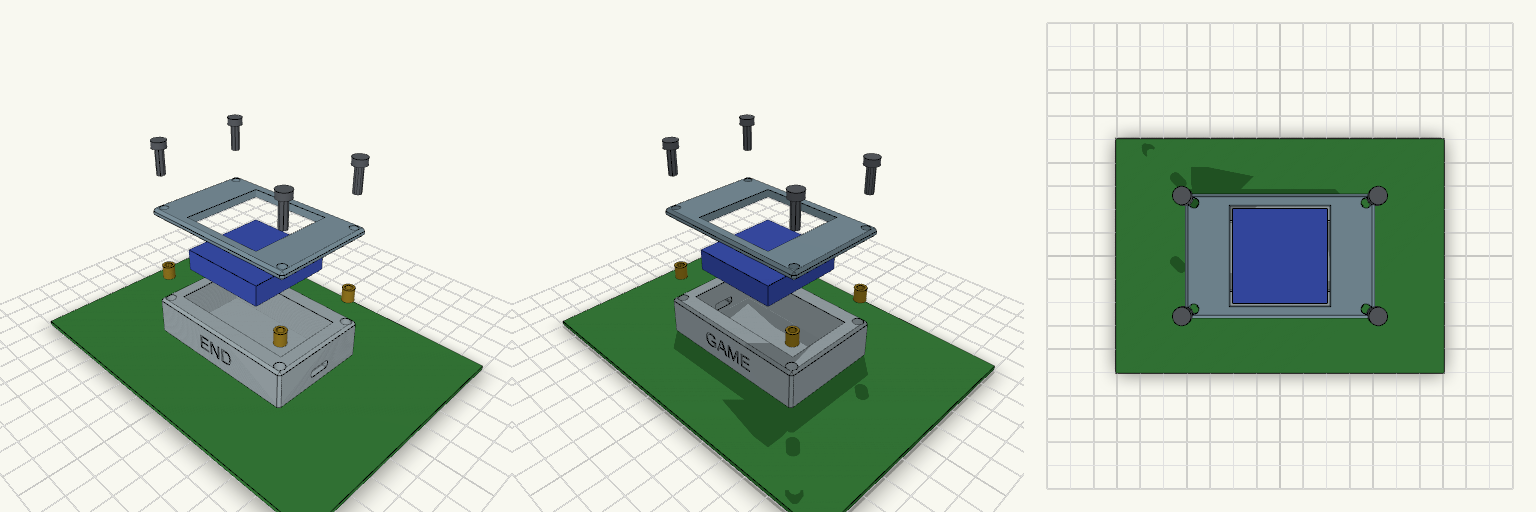

Endgame1
Exploded assembly of a two-piece enclosure for an ESP32-WROOM-32 board (52 x 28 x 14 mm) and a 1.3-inch square OLED module (34 x 34 x 8 mm). The lower chassis has a 52.4 x 28.4 mm pocket, a USB-C cutout on the +X end, and debossed text: "END" on the front wall and "GAME" on the back wall. The lid has a 34.2 mm square window for the OLED. Brass inserts, M3 screws and the OLED module float above the chassis on a flat mat base. Outer size: 64 x 42 mm; chassis height 16 mm, lid thickness 3 mm Board pocket: 52.4 x 28.4 mm, 14 mm deep, 2 mm floor OLED window: 34.2 x 34.2 mm Corner holes: 4 positions at ±29.1 x ±17.9 mm; 4.2 mm for heat-set inserts in the chassis, 3.5 mm clearance in the lid USB-C cutout: 9.2 x 3.4 mm with rounded ends, on the +X end Text: 1 mm deep debossed lettering, 6 mm tall Exploded layout shows inserts, OLED module and M3 screws in assembly order; the mat is a reference surface, not part of the enclosure Material: PETG or clear/natural filament suits the frosted look; print the chassis and lid separately

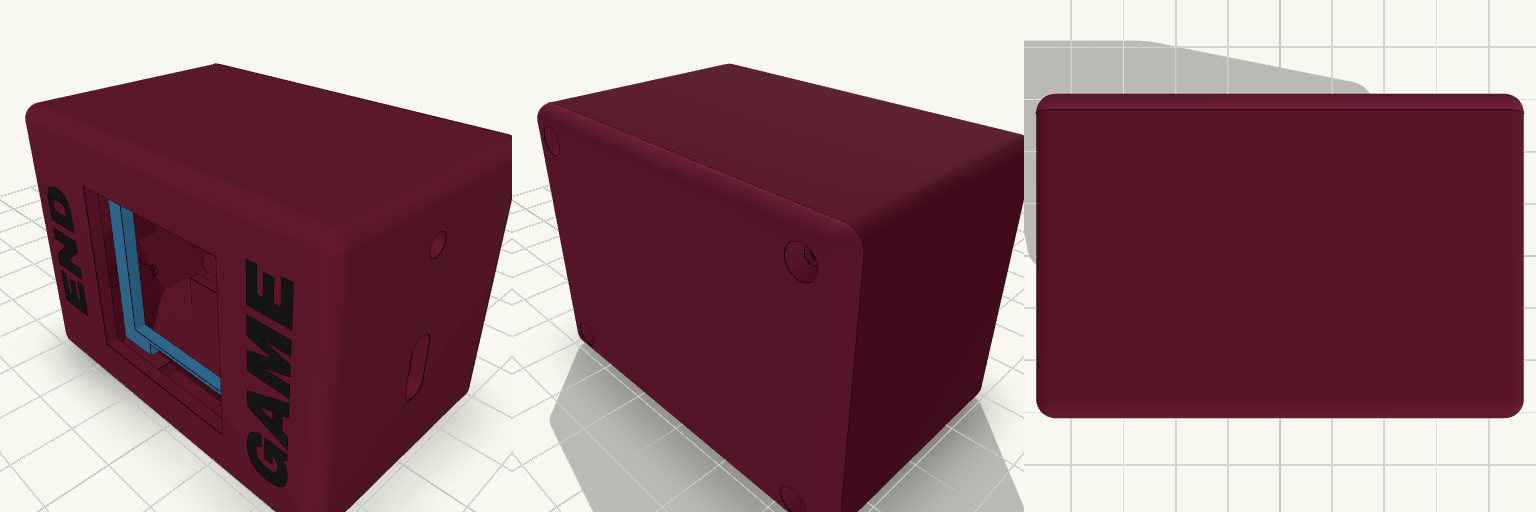

Endgame
