ESP32 SafeCore Controller Enclosure
Created today
Description
A dedicated heavy-duty housing for the SafeCore monitor, built entirely around the 30-pin ESP32 dev board footprint and a standard 0.96-inch OLED screen.
The two-piece shell is engineered for exact fitment, using a registration lip to keep the halves aligned and transferring shear stress away from the fasteners.
Mating Specifications
- Controller: standard 30-pin ESP32 dev board (25.5 × 47 mm mounting footprint). M2.5 thread-forming posts.
- Display: 0.96-inch OLED (I2C), sits behind a 26 × 14 mm sloped FDM-safe bezel.
- Hardware: Four M3 countersunk screws for the rear panel.
- Indicators: Top-left 5 mm warning LED port and top-right buzzer grille.
- Mounting: Twin 45 × 5 mm rear slots for standard nylon or Velcro belt straps.
Images
More like this
Explore more in Workshop & Tools →

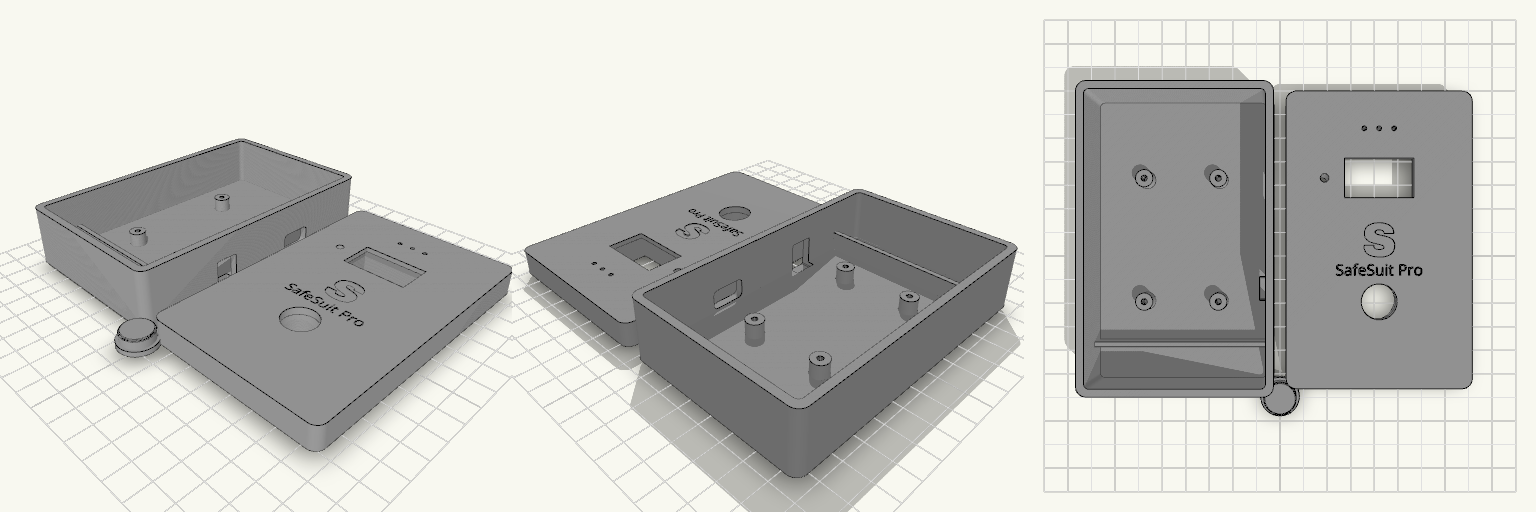

Supervisor Electronics Shell
Generic hobby boxes crack at the screw posts the second time you open them, and their exposed hardware snags on everything in a bag. This is a clean, rugged shell that closes tight without external fasteners and keeps the wiring where it belongs. The front panel traps the alert button from the inside, so it can't be ripped out or jammed sideways. Internal Specs Dimensions: 120 × 75 × 35 mm external. Walls: 3 mm solid shell. Standoffs: Four integrated posts (2.5 mm bore) spaced for a standard ESP32 footprint. Clearance: 0.25 mm tolerance on the friction-fit lid lip. Print flat, no supports required.
Industrial Wearable Electronics Enclosure
A heavy-duty three-part electronics enclosure designed for wearable prototype suits. Features a slide-and-lock fabric mounting plate that allows the main box to be removed without unthreading straps. Main Box: 140 × 90 × 40 mm with 3 mm walls and 10 mm side ports for external sensors. Mounting Plate: Slotted for fabric straps, featuring a male dovetail rail that slides into the main box and locks with a single pilot screw. Lid: Secures with four M3 screws into tapped corner bosses, featuring a 90 × 50 mm blank recess for a separate logo plate.
Console — Custom Electronics Enclosure
This is a comprehensive, dimensionally accurate parametric enclosure designed for DIY electronics. Laid out to securely house a 16×2 character LCD and four tactile push buttons, it uses standard M3 machine screws with captive nut traps for secure and repeatable assembly. The design separates the tactile switch bodies from the actual visible button caps, ensuring a clean and professional appearance. Features Locating Lip: Recessed rabbet ensures the top cover nests tightly and squarely onto the bottom shell. Component-Specific Pockets: 12×12 mm push-button switches are secured from the underside, operated by independent retained caps. Hidden Mounting: The 16×2 LCD is held flush against the top window from the inside via a custom bezel, keeping the surrounding PCB hidden. Directed Ventilation: Cooling slots are restricted to the lower front face, allowing flush wall mounting at the rear. Hardware Needed 4 × M3 × 12 mm machine screws 4 × M3 hex nuts (5.5 mm across flats) 4 × 12×12×7.3 mm tactile switches 1 × 16×2 Character LCD (JHD162A style)
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.

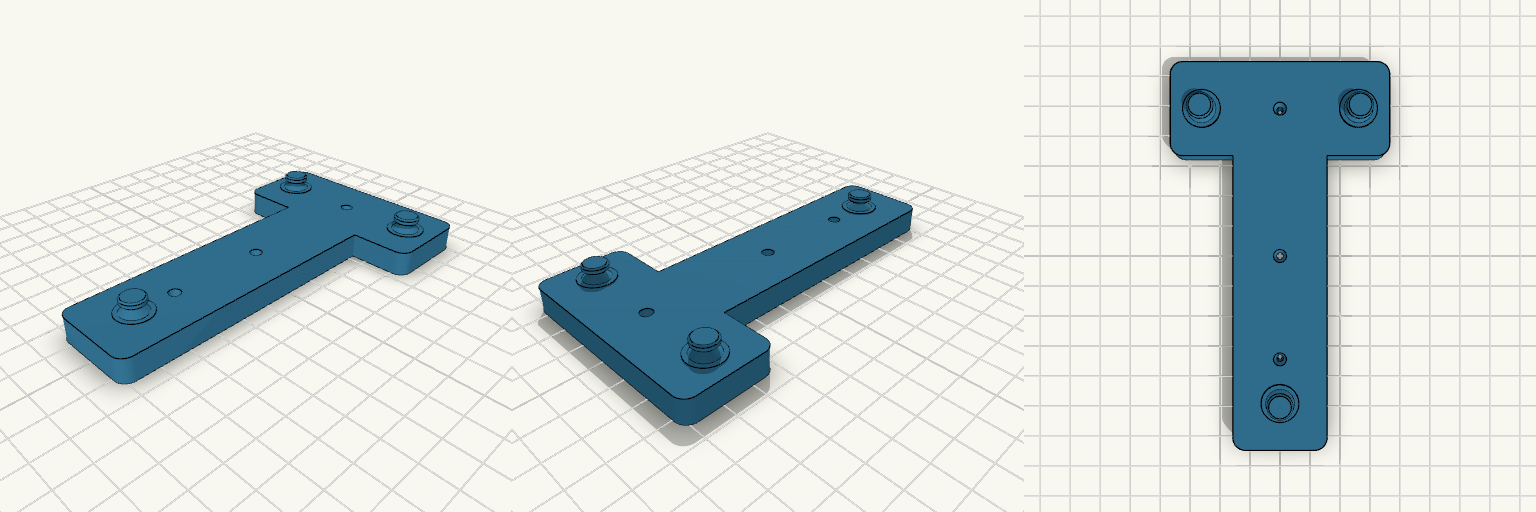

Einhell Charger Wall Mount definitivo
