FaceGuard — 2" 300# RF Flange Cap2
Created today
Description
FaceGuard is a protective cap for a 2" Class 300 raised-face weld neck flange (Sch 40). It covers the flange face and rim, keeping the sealing surface clean and protected during storage and transport.
Features
- Rim cavity fits over the 6.5" flange OD with light clearance
- Pocket over the 3.62" raised face
- Center plug seats in the Sch 40 bore
- Eight bolt-hole plugs on a 5" bolt circle, sized to fit the 3/4" holes with chamfered tips
Print notes
- Print base-down; no supports needed
- Dimensions are from standard flange tables. Check against your actual flange before printing.
Images
More like this
Explore more in Workshop & Tools →
Anello Frazionato da Palo
Un anello di spessoramento diviso a metà, progettato per essere montato attorno a un palo da 137 mm di diametro. Profilo: Parete spessa 3 cm Fori: Quattro fori passanti verticali, diametro 4 mm, disposti in quadrato con lato 121 mm Assemblaggio: Spaccato centralmente per consentire l'installazione su tubi e pali esistenti senza doverli sfilare. Utile per creare spessori o basi su tubolari in metallo o PVC.
montre
What it's for A 3D-printable watch case modelled on dive-watch proportions. Features a scalloped rotating-style bezel with minute markers, a fine threaded base for the case back, and integrated lugs for a standard watch strap. The inner cavity tapers to secure a movement, with a lip cut for a domed crystal. Dimensions Overall Case: 42 mm diameter Inner Cavity: 41 mm base, tapering to 40.4 mm at the dial Lugs: Spaced for a 20 mm strap Crystal Seat: 41.4 mm diameter, 1 mm deep Stem Hole: 1.1 mm diameter at the 3 o'clock position Threads: 0.5 mm pitch, matching case back included Print notes The case back uses a very fine 0.5 mm thread pitch. This requires a well-calibrated printer and low layer heights (0.12 mm or finer) to print cleanly. You may need to scale the case back slightly on the X and Y axes depending on your printer's tolerances.

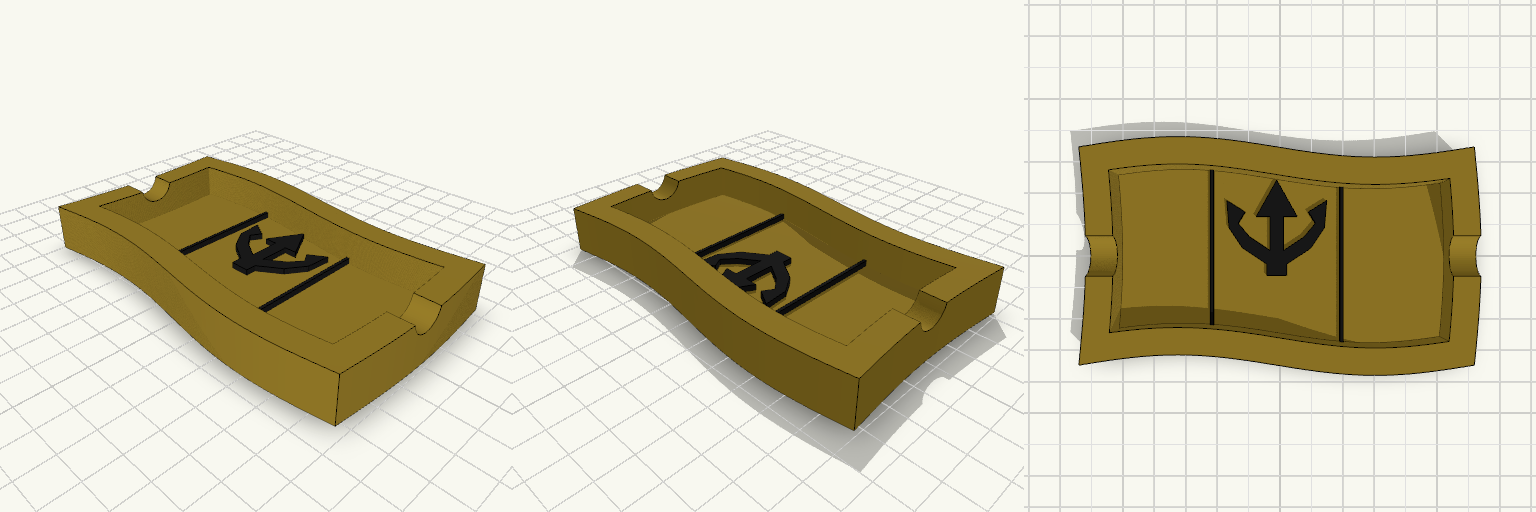

Bajan Wave — Flag Mold Master
