Ten-Port Keystone Panel With Fan
Created today
Description
A 270 × 61 mm mounting panel with a 60 mm fan opening on the left and ten snap-in keystone ports on the right. A rounded, squircle-style notch is cut into one long edge near the right end.
Remix hooks
- Notch span: runs from 216.25 mm to 258 mm along X, 15.25 mm deep in Y. Move either end to resize it.
- Corner radius: both inner corners use a 7 mm radius. Raise it for a softer shape; keep it under about 7.6 mm to stay within the notch depth.
- Corner material: the notch stops at 258 mm, leaving the right-end 3.5 mm mounting hole (5 mm from the end) fully surrounded.
- Keystones: 14.5 × 16 mm openings with a 1.8 mm front lip and rear clip relief. Dimensions are provisional, so test one jack before printing all ten.
- Pairs with: a cable-management bar or a fan grille over the 58 mm vent.
It's meant for a particular 12U rack.
Images
More like this
Explore more in Desk & Tech →

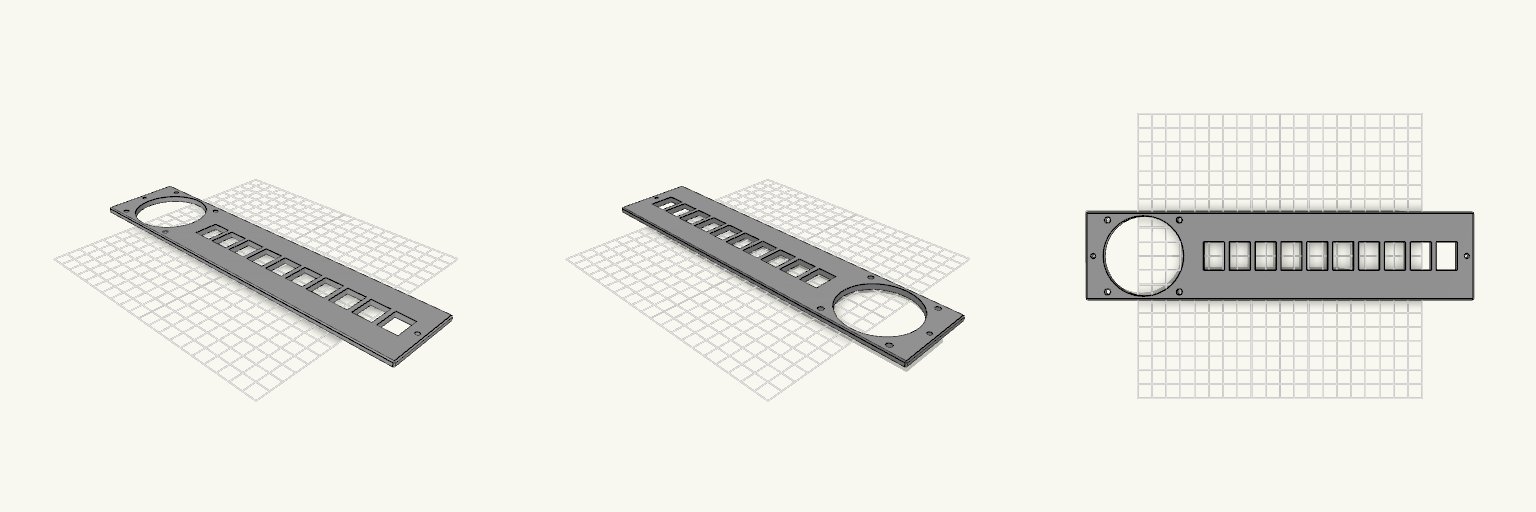

Fan and Keystone Mounting Plate
A 270 x 61 mm flat plate, 4 mm thick, combining a 60 mm fan mount with a row of ten keystone jack openings. The fan opening sits at the left end with four screw holes on the standard 50 mm spacing. The right side carries ten rectangular openings on an 18 mm pitch for standard keystone jacks. A 3.5 mm mounting hole sits 5 mm from each end on the centerline. Plate: 270 x 61 x 4 mm Fan: 56 mm opening, 4.3 mm screw holes at 50 mm spacing Keystones: 10 openings, 14.8 x 19.8 mm Mounting: 2 x 3.5 mm holes
Foldable Snap-Fit Phone Stand
A rugged, fully printable foldable phone stand. It is printed in three flat pieces that snap together securely, allowing it to fold completely flat for travel. Features Adjustable Angles: Features 7 resting notches on the base plate to precisely control the screen angle. Snap-Fit Hinges: Uses C-clip snap joints that grip firmly onto 6mm pins without requiring any extra hardware. Travel-Ready: Folds down to a flat profile when not in use. Print Instructions Print flat on the bed as oriented. Standard PLA or PETG works perfectly. Ensure good bed adhesion for the flat plates. The snap-fit hinges are designed with a 0.4mm clearance — they will require a firm push to snap into place during assembly, but will hold tight thereafter.
Fidget Spinner Planetario Ø70 mm
Fidget spinner a ingranaggi planetari stampabile in un solo pezzo (print-in-place), diametro esterno 70 mm, con ingranaggio solare centrale, 5 satelliti e anello esterno dentato internamente. L'anello è alleggerito da 10 fori passanti e non ha coperchi, così gli ingranaggi restano visibili. Diametro esterno: 70 mm, spessore 8 mm Modulo 1,5; solare 15 denti, satelliti 10 denti, corona 35 denti Denti elicoidali a spina di pesce (25°) che trattengono i satelliti senza assi Gioco sui denti: 0,25 mm Fori centrali Ø7 mm (solare) e Ø5 mm (satelliti) per alleggerire Stampa piatta, senza supporti; PLA o PETG
Lazy-Tongs Piano Bottle Caddy
A pantograph-style drink arm in the spirit of a vintage lazy-tongs: a hooked clip straddles the top of a piano's music desk, and a three-unit scissor mechanism unfolds backward to carry a bottle cup. The cup sits inside a wide, rimmed drip tray, so condensation stays off the keys and cabinet. The arm folds flat for storage and stretches out for use. Pivots are print-in-place pins, and the two end joints ride in slots so the arms can open and close. Design notes Cup bore is 76 mm, sized for a standard 33.8 fl oz (1 L) water bottle; cup wall is 85 mm tall. Drip tray is 96 mm across with a 12 mm rim and sits flush with the arm plane. Clip slot fits a music desk about 13 mm thick; adjust the thickness value to suit your piano. Three colored regions: desk clip, scissor arms, cup and tray. Shown in a partly extended pose; the opening angle can be changed to show it folded or fully reached. Best printed as shown, with 0.4 mm clearances at the pivots. Support is only needed under the clip hook. A full bottle is a cantilever load, so keep the arm short for heavier bottles.

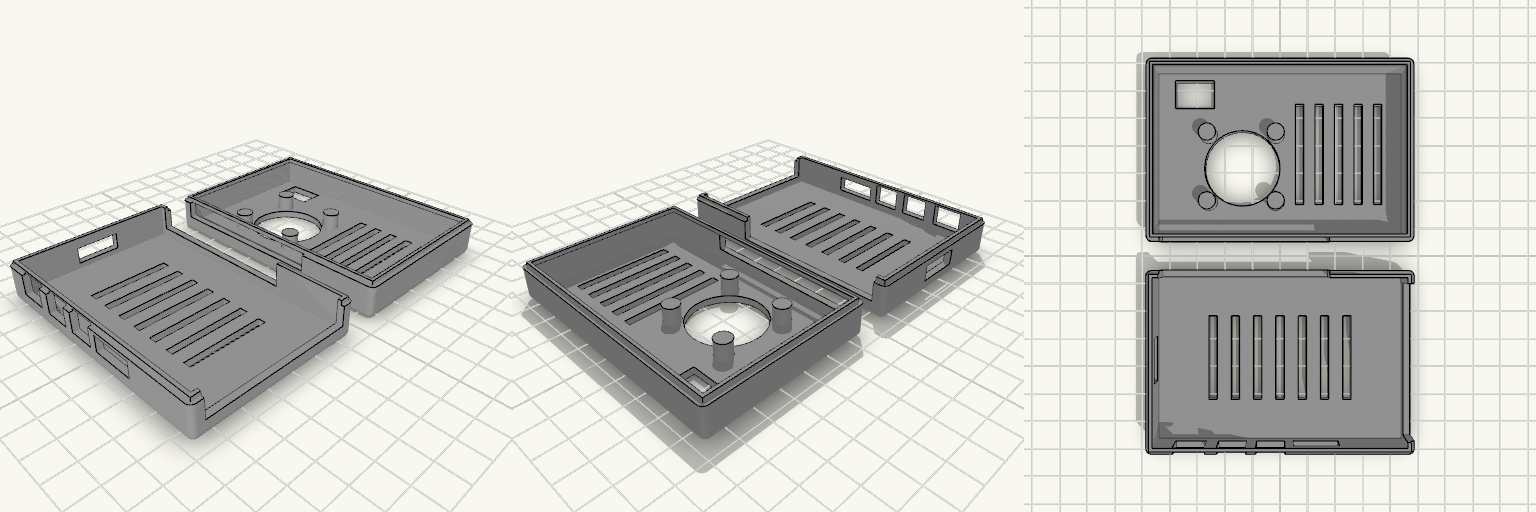

Raspberry Pi 5 Gehäuse mit Lüfterplatz
Zweiteiliges Gehäuse für den Raspberry Pi 5 mit Ausschnitten für alle Anschlüsse und einer Montageoption für einen 30×30-mm-Lüfter im Deckel. Lüfter: 30×30 mm, Lochabstand 24 mm, runde Öffnung 27 mm über dem Prozessor Befestigung: vier Domen innen im Deckel, Bohrung 2,7 mm für M3-Schrauben (selbstschneidend, ca. 10–12 mm) Ausschnitte: USB, Ethernet, USB-C, 2× Micro-HDMI, FPC, SD-Karte, GPIO, Lüfter-/RTC-/PCIe-Anschluss Lüftung: Bodenschlitze und Deckelschlitze Druck: Unterteil und Deckel liegen getrennt auf dem Druckbett

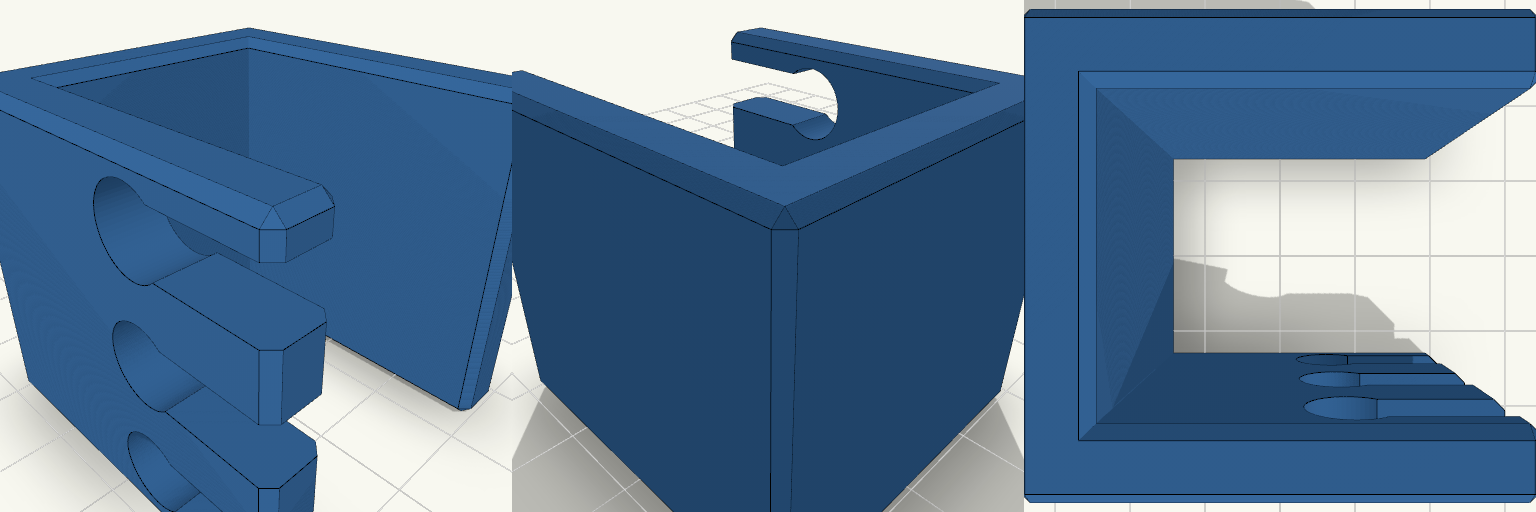

Kabelhalter 3 Kabel für 25 mm Tisch
