G 1 1/4" Plug with Concave End
Created today
Description
What it's for
A male-threaded plug for a G 1 1/4" (BSP parallel) port, such as a bull nose fitting. The end face is dished (concave) so it seats against a rounded nose.
Dimensions
- Thread: G 1 1/4", 41.91 mm major diameter, 2.309 mm pitch (11 TPI)
- Thread length: 20 mm
- Hex head: 50 mm across flats, 10 mm tall
- Concave dish: 30 mm sphere radius, 5 mm deep
Remix ideas
- Change the dish radius or depth to match a different nose profile.
- Add a gasket groove under the hex head.
- Swap the hex for a knurled round head for hand tightening.
Images
More like this
Explore more in Home & Fixtures →
Tank Tap Bulkhead Fitting 1 1/2" BSP
A through-wall bulkhead fitting in the spirit of a classic water butt tank connector: a broad round flange sits against the tank wall, a long threaded barrel passes through, and a matching lock nut clamps it from the other side. 72 mm flange with a shallow gasket seat for a flat washer or O-ring 1 1/2" BSP-style male thread (47.8 mm major diameter, 11 TPI), 40 mm long 38 mm through bore Separate lock nut, printed alongside Design notes: The thread is a generic approximation of the Whitworth form, so test-fit against your mating part. Cut the tank hole to suit the thread, and use a rubber gasket against the flange. Print the flange face-down; PETG is a sensible choice for water contact.
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.
Bote de basura innovador
Bote de basura con tres compartimentos para orgánicos, reciclables y basura general. Evita que todo termine mezclado en una sola bolsa y que haya que tocar la tapa con las manos sucias. Cada compartimento tiene su propia abertura con trampilla de color. Dos sensores al frente detectan a la persona que se acerca, una pantalla indica el nivel de llenado, un panel solar inclinado en la parte trasera alimenta la electrónica y cuatro ruedas permiten moverlo. Datos clave Diámetro del cuerpo: 240 mm; altura total sin panel: unos 346 mm Tres sectores de 120° separados por divisiones de 3 mm Aberturas de 76 mm de diámetro, una por compartimento Ruedas de 36 mm en cuatro soportes Impresión por piezas: cuerpo, tapa, chasis, ruedas y panel; paredes de 3 mm, sin soportes en el cuerpo La electrónica (sensores, pantalla, motores) no está incluida: el modelo solo aporta alojamientos y forma

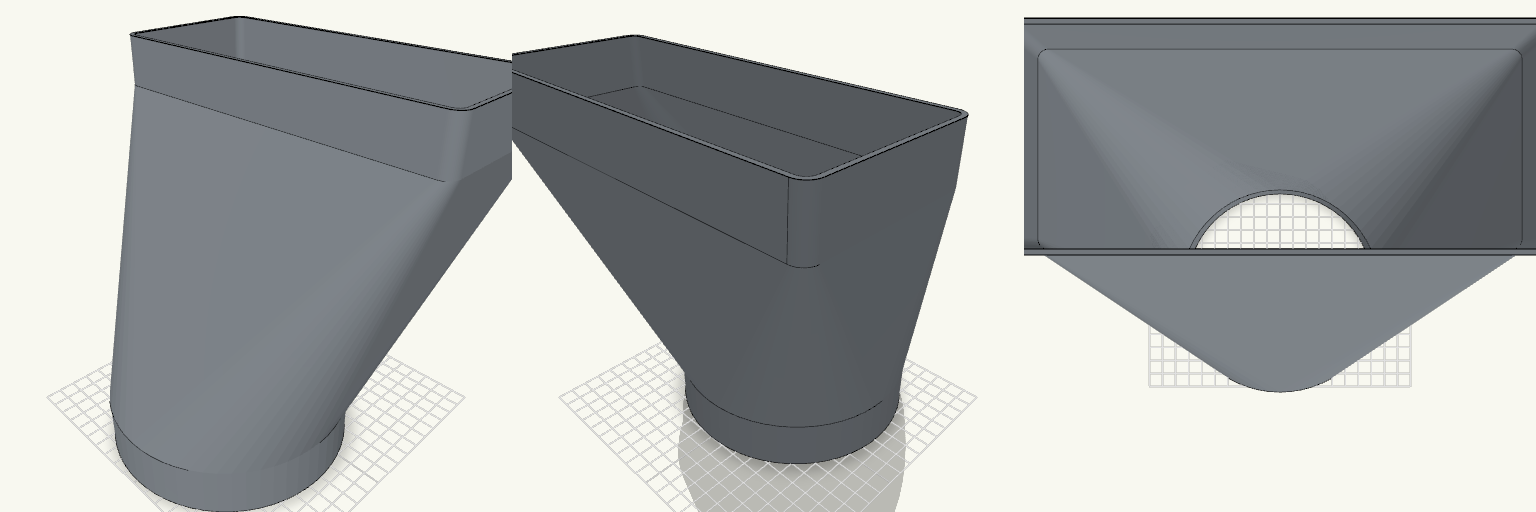

Eccentric Duct Adapter 125mm
What it's for Bathroom duct adapter that connects a round duct to a flat rectangular duct. Both ends are female sockets, and the airflow passage is fully open. The round socket has a wide bore for a loose, free fit. Dimensions Round socket: Ø142.5 mm inner, Ø147.3 mm outer, 30 mm long, 1.5 mm entry chamfer Flat socket: 222 × 92 mm inner, 5 mm corner radius, 30 mm long Transition: 160 mm, smooth round-to-rectangle loft Vertical offset of the flat socket: 72.5 mm Wall thickness: 2.4 mm Overall length: 220 mm Remix ideas Change the bore diameter to tune the fit for a different duct. Adjust the vertical offset for another mounting position. Lengthen the sockets for a deeper grip.

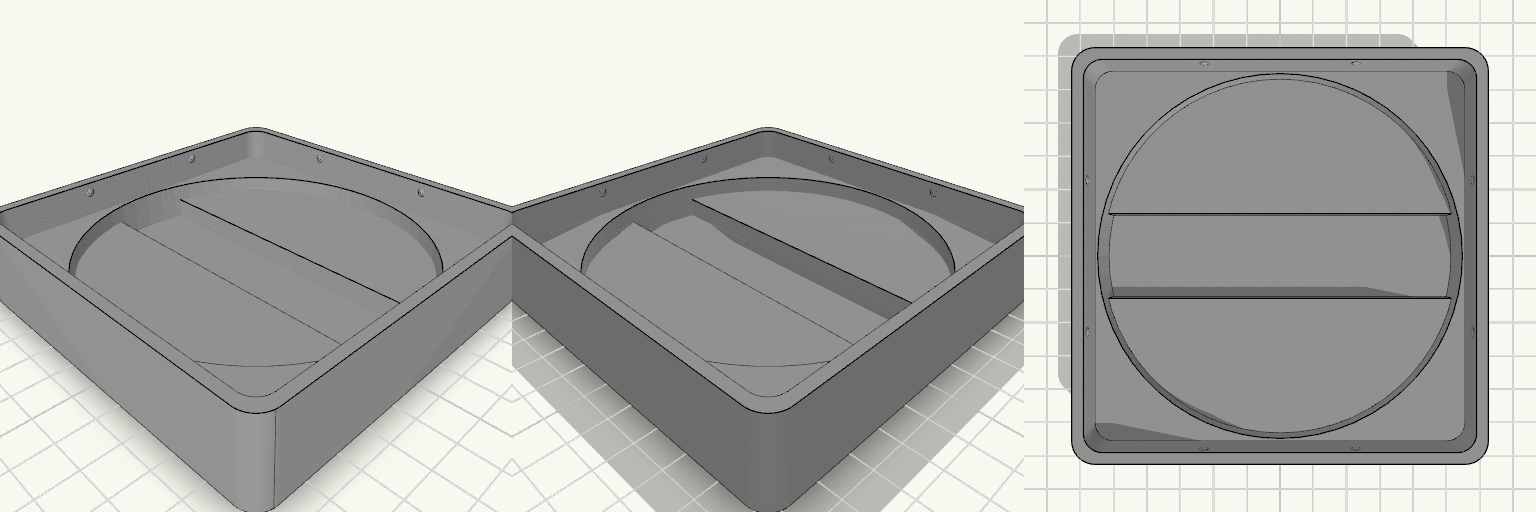

108 mm Vent Grille Cap, Center-Rib Clearance
