Halloween Gravestone Trophy V4

A Halloween trophy gravestone that prints as separate pieces, because a single-colour solid block makes white lettering and a skull impossible. The black stone and pedestal print in black PLA. The skull, webs, bats, cross and lettering print in white PLA and plug into sockets in the stone, so nothing relies on glue alone for position.

Numbers that decide fit

• Assembled size: about 160 mm tall, 90 mm wide, 35 mm deep (pedestal 90 × 35 × 22 mm; stone 80 × 18 mm, arch radius 40 mm).
• Stone-to-pedestal joint: two rectangular tenons, 8 × 10 mm and 12 mm long, at offset positions so the stone only goes in one way. Pedestal holes are 8.5 × 10.5 mm and 14 mm deep, leaving 2 mm of glue space.
• Small parts: 2.8 mm pegs, 4 mm long, with chamfered tips. Sockets are 3.1 mm wide and 5 mm deep.
• Lettering: three word plates (BEST VILLAIN, HALLOWEEN NIGHT, WROCŁAW • 24.10.2026). Each has a 1.2 mm backing plate that sits in a recess, letters raised 1.8 mm and two pegs.
• Surface: chipped edges and cracks are modelled into the stone.

Printing

• Stone: print it back-down, flat. Pedestal: print it upside-down or bottom-down. No supports are needed for either.
• White parts: print the lettering face-down, with the pegs pointing up. Print the skull, webs, bats and cross back-down.

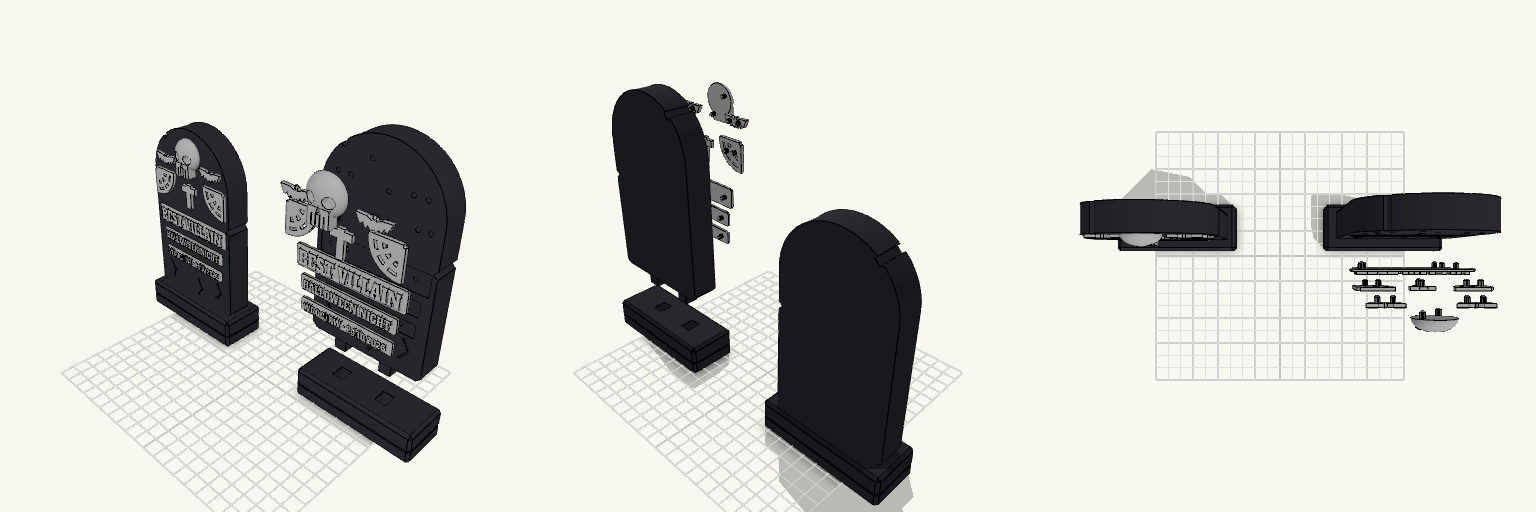

• The model includes an assembled view and an exploded view. Each white part sits on its own socket pattern.
• Assembly: fit the tenons into the pedestal, glue them, then press each white piece into its sockets and glue.
