Halloween Gravestone Trophy V5
Created today
Description
A Halloween trophy gravestone that prints as separate pieces, because a single-colour solid block makes white lettering and a skull impossible. The black stone and pedestal print in black PLA. The skull, webs, bats, cross and lettering print in white PLA and plug into sockets in the stone, so nothing relies on glue alone for position.
Numbers that decide fit
- Assembled size: about 160 mm tall, 90 mm wide, 35 mm deep (pedestal 90 × 35 × 22 mm; stone 80 × 18 mm, arch radius 40 mm).
- Stone-to-pedestal joint: two rectangular tenons, 8 × 10 mm and 12 mm long, at offset positions so the stone only goes in one way. Pedestal holes are 8.5 × 10.5 mm and 14 mm deep, leaving 2 mm of glue space.
- Small parts: 2.8 mm pegs, 4 mm long, with chamfered tips. Sockets are 3.1 mm wide and 5 mm deep.
- Lettering: three word plates (BEST VILLAIN, HALLOWEEN NIGHT, WROCŁAW • 24.10.2026). Each has a 1.2 mm backing plate that sits in a recess, letters raised 1.8 mm and two pegs.
- Surface: chipped edges and cracks are modelled into the stone.
Printing
- Stone: print it back-down, flat. Pedestal: print it upside-down or bottom-down. No supports are needed for either.
- White parts: print the lettering face-down, with the pegs pointing up. Print the skull, webs, bats and cross back-down.
- The model includes an assembled view and an exploded view. Each white part sits on its own socket pattern.
- Assembly: fit the tenons into the pedestal, glue them, then press each white piece into its sockets and glue.
Images
More like this
Explore more in Decor & Display →
Halloween Gravestone Trophy V4
A Halloween trophy gravestone that prints as separate pieces, because a single-colour solid block makes white lettering and a skull impossible. The black stone and pedestal print in black PLA. The skull, webs, bats, cross and lettering print in white PLA and plug into sockets in the stone, so nothing relies on glue alone for position. Numbers that decide fit Assembled size: about 160 mm tall, 90 mm wide, 35 mm deep (pedestal 90 × 35 × 22 mm; stone 80 × 18 mm, arch radius 40 mm). Stone-to-pedestal joint: two rectangular tenons, 8 × 10 mm and 12 mm long, at offset positions so the stone only goes in one way. Pedestal holes are 8.5 × 10.5 mm and 14 mm deep, leaving 2 mm of glue space. Small parts: 2.8 mm pegs, 4 mm long, with chamfered tips. Sockets are 3.1 mm wide and 5 mm deep. Lettering: three word plates (BEST VILLAIN, HALLOWEEN NIGHT, WROCŁAW • 24.10.2026). Each has a 1.2 mm backing plate that sits in a recess, letters raised 1.8 mm and two pegs. Surface: chipped edges and cracks are modelled into the stone. Printing Stone: print it back-down, flat. Pedestal: print it upside-down or bottom-down. No supports are needed for either. White parts: print the lettering face-down, with the pegs pointing up. Print the skull, webs, bats and cross back-down. The model includes an assembled view and an exploded view. Each white part sits on its own socket pattern. Assembly: fit the tenons into the pedestal, glue them, then press each white piece into its sockets and glue.
Halloween Gravestone Trophy, Glue-Together Kit
A Halloween trophy gravestone that prints as separate pieces, because a single-colour solid block makes white lettering and a skull impossible. The black stone and pedestal print in black PLA. The skull, webs, bats, cross and lettering print in white PLA and plug into sockets in the stone, so nothing relies on glue alone for position. Numbers that decide fit Assembled size: about 160 mm tall, 90 mm wide, 35 mm deep (pedestal 90 × 35 × 22 mm; stone 80 × 18 mm, arch radius 40 mm). Stone-to-pedestal joint: two rectangular tenons, 8 × 10 mm and 12 mm long, at offset positions so the stone only goes in one way. Pedestal holes are 8.5 × 10.5 mm and 14 mm deep, leaving 2 mm of glue space. Small parts: 2.8 mm pegs, 4 mm long, with chamfered tips. Sockets are 3.1 mm wide and 5 mm deep. Lettering: three word plates (BEST VILLAIN, HALLOWEEN NIGHT, WROCŁAW • 24.10.2026). Each has a 1.2 mm backing plate that sits in a recess, letters raised 1.8 mm and two pegs. Surface: chipped edges and cracks are modelled into the stone. Printing Stone: print it back-down, flat. Pedestal: print it upside-down or bottom-down. No supports are needed for either. White parts: print the lettering face-down, with the pegs pointing up. Print the skull, webs, bats and cross back-down. The model includes an assembled view and an exploded view. Each white part sits on its own socket pattern. Assembly: fit the tenons into the pedestal, glue them, then press each white piece into its sockets and glue.
FLAGE MAROCAINE
A precisely dimensioned 180x120mm base for a Moroccan flag assembly. The model features an accurate 1mm-deep recess carved as five intersecting straight lines, capturing the true geometry of the traditional interlaced pentagram. Through-holes at the five intersecting tips provide exact alignment for a matching drop-in star, while doubling as push-out points if the star needs to be removed after test-fitting. Specifications Dimensions: 180 mm x 120 mm x 3 mm Recess Depth: 1.0 mm (maintains a 2 mm solid floor) Alignment: Five 2.4 mm diameter positioning through-holes Print Settings: Prints flat on its back; no supports required
Nelore BCS Display Base
What it's for A structured, segmented display base designed to present five cattle models demonstrating Body Condition Scores (BCS). Features an elegant multi-tiered design with distinct angled platforms, giving each figure a dedicated presentation space without structural clutter. Dimensions Overall footprint: 400 mm length x 100 mm width. Total height: 20 mm (10 mm main base, 5 mm middle tier, 5 mm individual platforms). Display pads: 65 mm x 40 mm, offset at a 25-degree angle. Split halves: 200 mm length each, designed to fit cleanly on standard 256x256 mm print beds. Print notes Orientation: Print both base halves flat on their bottoms. Print the pegs horizontally as oriented in the file for maximum shear strength across the layer lines. Clearances: The dowel holes are 8.4 mm with 8.0 mm pegs. This 0.2 mm radial clearance is generous enough for easy assembly straight off a standard FDM printer, but tight enough to hold firmly with CA glue. Supports: None required. All chamfers and geometries are optimized for direct bed printing.

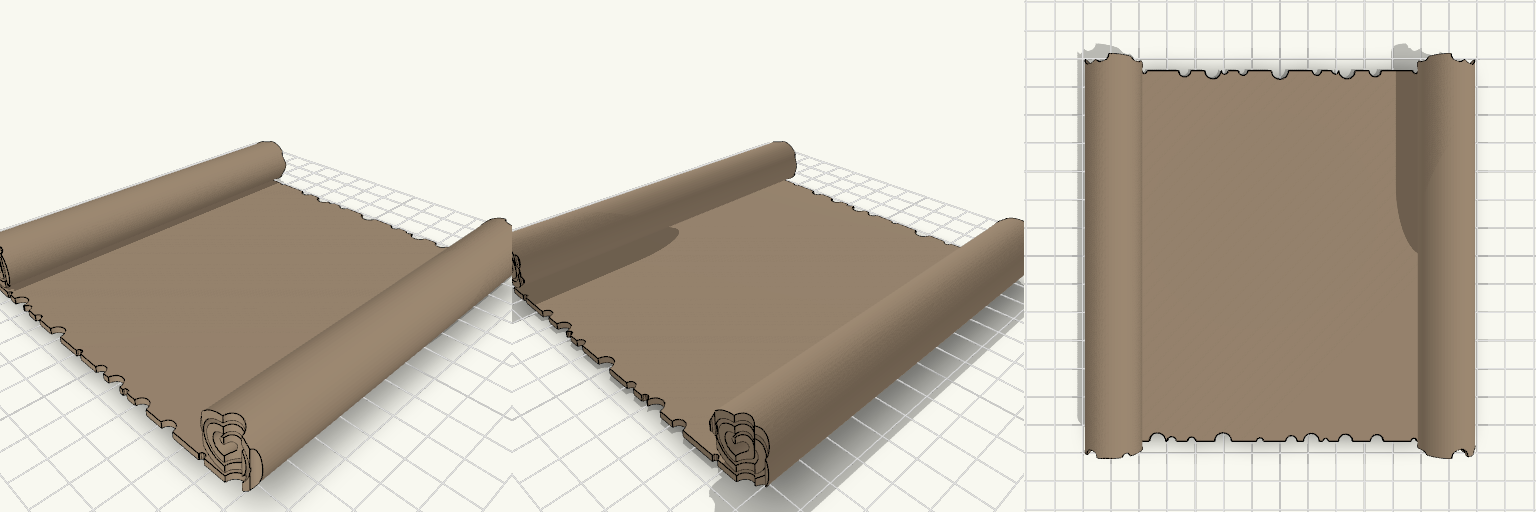

Blank Parchment Scroll
A classic, unrolled medieval parchment scroll. It features tight, authentic spiral paper rolls on both sides and a large, completely blank central area. Customizable surface: The flat 110x130mm central plate is ready for you to add your own text, insignias, or seals in your slicer. Aged detailing: The top and bottom edges feature subtle, organic-looking wear for a realistic historical prop aesthetic. Easy printing: The model lays completely flat on its back, requiring zero supports to print.

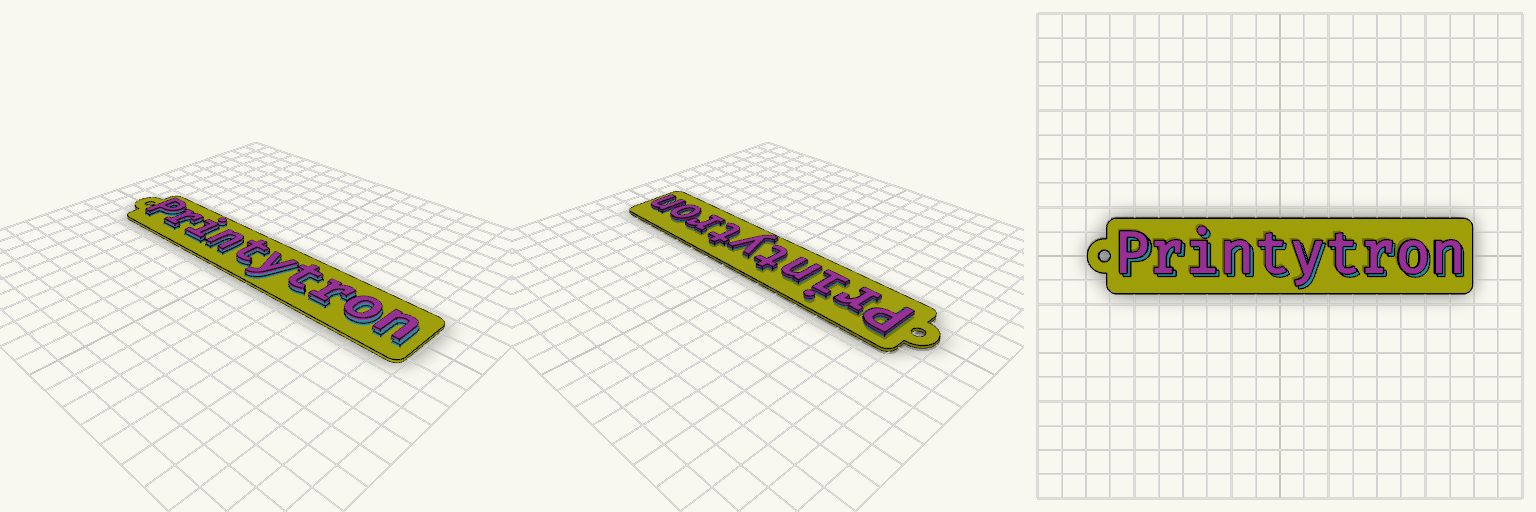

Printytron 3-Layer Keyring Sign 157mm
