Heavy-Duty Screwdriver Wall Rack
Created 1 months ago
Description
A solid, heavy-duty wall-mountable rack designed to hold five large screwdrivers vertically. Built to maintain a sturdy grip on hefty tool handles while keeping the mounting hardware completely separate from the tool shafts.
Features:
- Accommodates 5 screwdrivers
- Wide handle cups (28mm) for heavy-duty tools
- Generous clearance between tool sockets and mounting holes
- Chamfered front and edges for a clean look
- Counterbored mounting holes for standard wood screws
Photos
Technical views
More like this
Explore more in Workshop & Tools →
2 cadenas module
A wall-mounted 200×200 mm lockout tagout station designed to hold 15 industrial safety padlocks. The single-piece board features reinforced, support-free pegs sized to slip through standard 6.35 mm padlock shackles, retaining them securely while lying completely flat on the print bed. Dimensions: 200 mm width × 200 mm height × 12 mm total depth Capacity: 15 padlocks (3 rows of 5) Hook Profile: 5 mm diameter shaft, expanding to a 7 mm chamfered retaining lip Material Guidelines: Optimized for PETG; standard print cooling recommended for the peg tips Mounting: Four 5 mm countersunk wall-mounting holes
4mm Square Key & Mount
The 4mm square key is the thing you can never find when a radiator needs bleeding or a panel needs opening. This gives the key a dedicated wall mount so it actually stays put. Includes a fitted bracket and custom printed M4 screws that use the same 4mm square drive as the key itself — meaning you don't even need a separate screwdriver to mount the bracket. Mounting bracket: 55mm × 15mm Key shaft: 4mm square Screw drive: 4.5mm square recess
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.
LockDrop — Packout Cup Holder
A rugged, drop-in cup holder designed to integrate perfectly with the Packout system. Secures easily onto any standard Packout lid using an integrated twist-lock cleat that sits flush for straightforward 3D printing. The main body accommodates standard tumblers and bottles while the heavy-duty walls and gussets ensure side-load stability. Features Twist-Lock Cleat: Drops into standard female Packout receivers with a friction fit. Flush Base Construction: Designed to print cleanly without complex supports for the bottom locking mechanism. Heavy-Duty Walls: Thickened sides with structural gussets engineered for shop environments. Front Branding: Embossed Milwaukee logo wrapping the front curve for a finished tool aesthetic. Drainage: Integrated center channel prevents liquid and debris buildup.

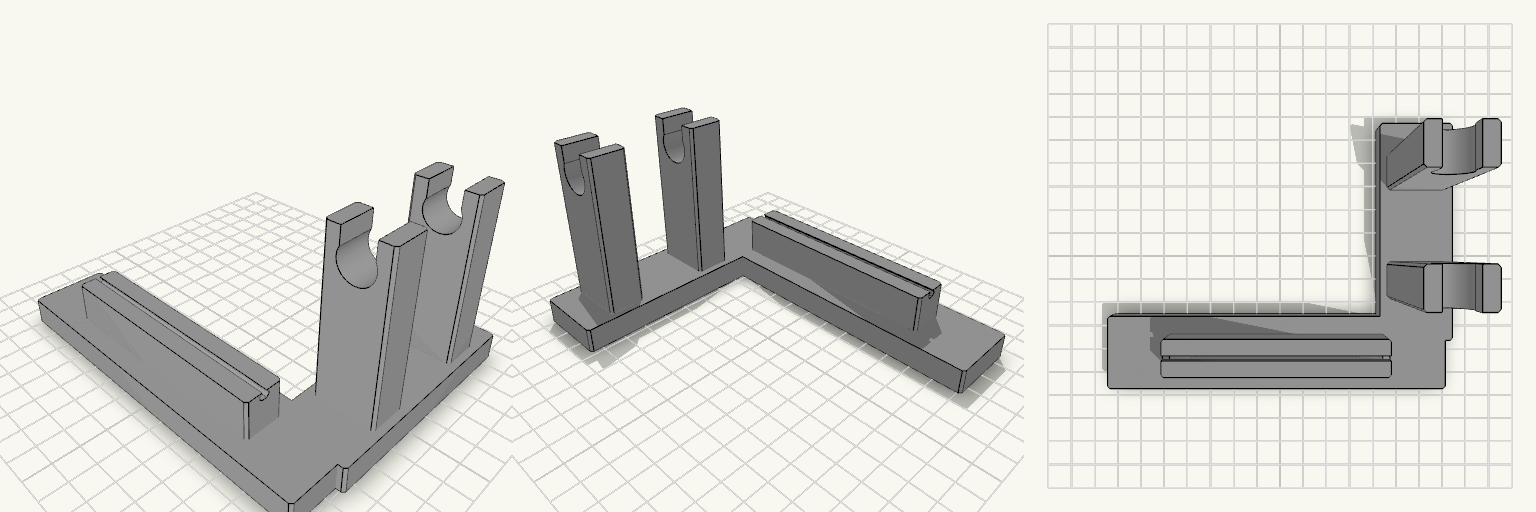

OptiFix — CD Diffraction Rig
OptiFix is a one-piece rigid alignment jig designed for CD diffraction experiments. It firmly holds a standard 120 mm CD in a vertical slot and aligns a 14 mm laser pointer on an exact perpendicular axis, ensuring a clean horizontal diffraction pattern. Features Absolute Alignment: Positions the laser center precisely 65 mm above the base, directly in line with the CD's center. Track Targeting: The laser axis is offset sideways to hit the data tracks 2.3 mm inward from the CD's outer edge, catching the vertical track lines to cast a horizontal pattern. Snap-in Towers: Two separate cradle towers grip the 14 mm laser via a narrow 12.5 mm top opening, eliminating the need for rubber bands. Stable Base: An expanded L-shaped footprint keeps the setup planted on the desk.
8mm Ruled Cookbook Stencil Rig
A full-bed 3D-printable stencil rig engineered specifically for 8mm ruled notebooks. Designed around a 75x142mm central master frame that aligns directly to the paper's ruling. Fitment and Clearances Mating Surface: Any standard 8mm ruled notebook page. Frame Dimensions: 75mm wide by 142mm tall, housing 16 guide slots. Tiles Included: 168 modular stencil inserts (6.1mm tall), spanning measurements, spices, meats, and techniques. Clearance: Tiles are intentionally sized 0.2mm smaller than the frame slots to ensure they drop in clean without binding. Ensure your printer's first layer isn't squashed, or you'll lose that margin. Bed Requirement: The entire 169-piece layout measures roughly 215x216mm. It is tightly packed to max out a standard 220x220mm Ender 3 print bed. Skirt lines must be kept minimal or disabled. Tooling: Use a fine-liner or 0.3mm technical pen; standard ballpoint collars will jam in the stencil voids.
