HexGrip — Square-Cut Plywood Hex Clips
Created today
Description
HexGrip is a two-clip press-fit system for building hexagonal shelving from 1/2 in plywood, now designed for plain 90° square-cut panel ends. Each slot ends in a solid stop 5 mm from the vertex centre, so neighbouring panels meet at 120° without colliding and no mitre cuts are needed.
Features
- End Cap Clip: two slots at 120° for outer hexagon corners.
- Spoke Clip: three slots 120° apart for shared vertices in a hexagon network.
- Barbed slot walls with about 0.55 mm interference per side: ramped entry, steep faces that resist pull-out.
Dimensions
- Slot width 13.0 mm, depth 19 mm
- Clip height 24 mm, arm length 30 mm
Print notes
- Prints with the slot opening facing up, no supports needed.
- A single hexagon uses 12 clips, one on the front and one on the back of each vertex.
- Print one first to check the fit against your actual plywood thickness.
Images
More like this
Explore more in Home & Fixtures →
Toolbox Front Latch Replacement C-Clip
Replacement front latch for a STUFF Basic 20 inch toolbox, for when the original hinge loop or hook has snapped. One solid C-profile part, 61 mm wide, with an open clip at the bottom that snaps onto the box pin and a filleted L hook at the top. Key numbers Overall: 61 mm wide, 65 mm tall, 18 mm deep Wall: 5 mm throughout Clip: 5.3 mm bore, 15.3 mm outer diameter, 5 mm gap Hook: 13 mm forward, 5 mm inside fillet, 2 mm outside fillet, 2.5 mm rounded tip Printing Material: PETG Supports: none Orientation: lay it on its 61 mm side so the C-profile faces up
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.

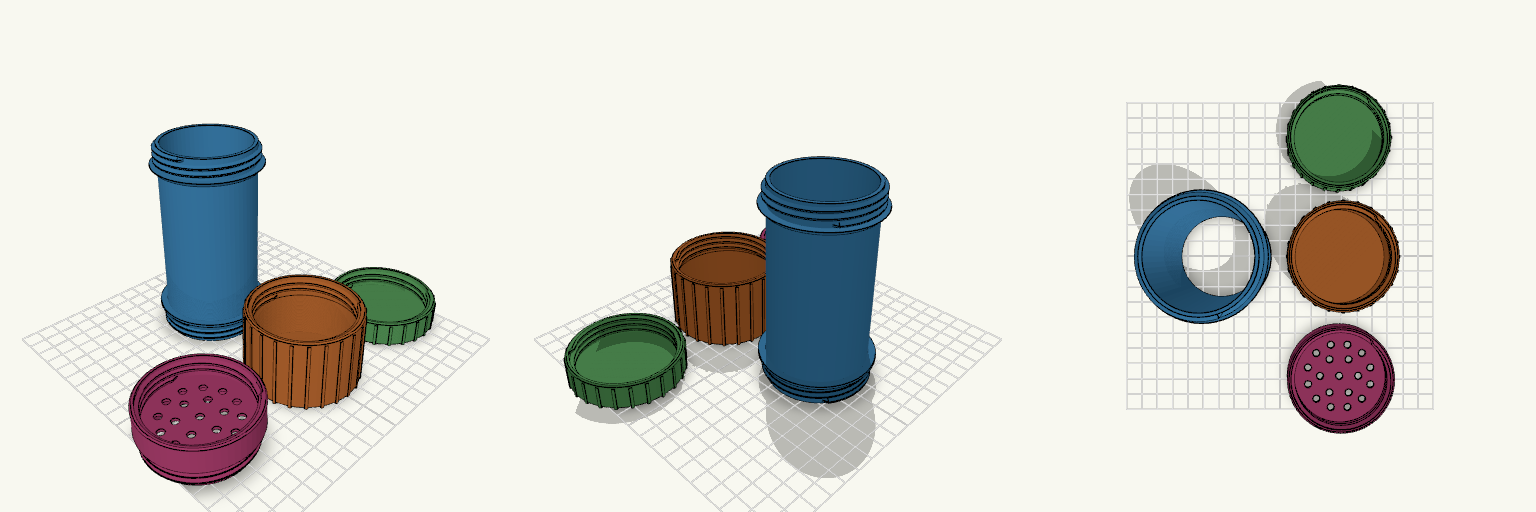

Cricket Calcium Duster Tube With Inner Screen
