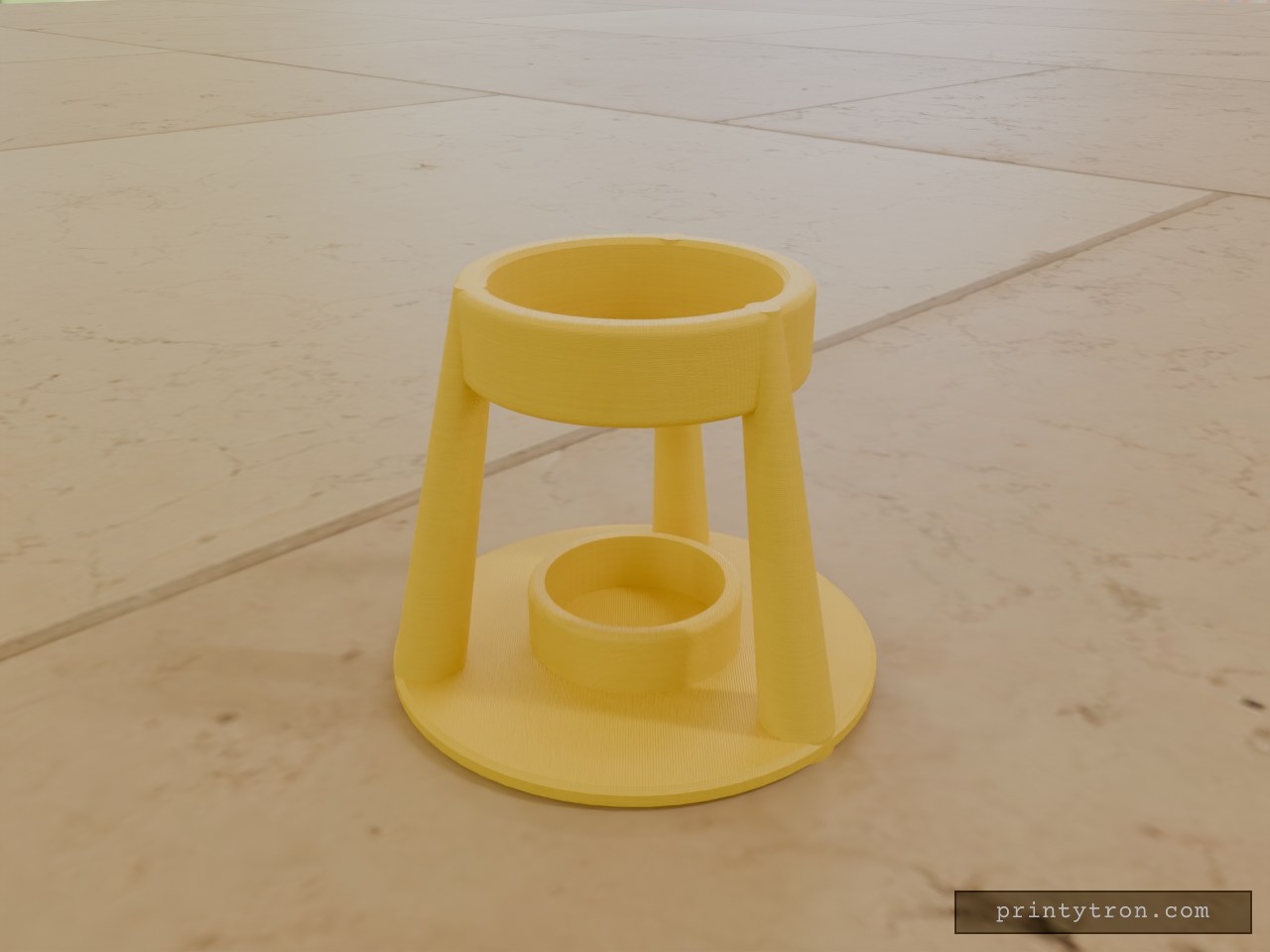

Inverted Glue Bottle Stand
Created today
Description
Keep viscous liquids like glue or ketchup primed and ready at the nozzle. Storing bottles inverted ensures immediate dispensing, eliminating the wait for a half-empty bottle to drain toward the cap.
The stand is designed with a stable tripod base and precise clearances to hold the bottle securely while catching any rogue drips.
Design specifications:
- Sized to cradle a 45mm bottle body
- Integrated 30mm drip cup positioned directly under the nozzle
- Beveled entry ring guides the bottle smoothly into place
- Tapered support arms print cleanly without support material
- Wide footprint prevents tipping even with a full, top-heavy bottle
Photos
Technical views
More like this
Explore more in Storage & Organization →
Gaveta Vertical Mini APH Pocket
Uma gaveta vertical de bolso, no espírito de um canivete suíço de primeiros socorros: o puxador largo no topo é também a tampa, e puxá-lo para cima faz a bandeja subir pelas guias, expondo os itens. Notas de projeto Corpo 86 × 52 × 127 mm, parede de 1,6 mm, dois drenos de ø 3 mm e furo de ø 4 mm para cordão. Bandeja 78 × 47 × 125 mm com tampa de 90 × 56 × 8 mm, recorte de dedo e divisórias. Clipe em J de 40 mm, 2,6 mm de espessura, impresso deitado. Pensado para PETG, sem suportes. Versão simplificada: dentes de retenção, rabo-de-andorinha, berço do oxímetro e batente liberável ainda não modelados.

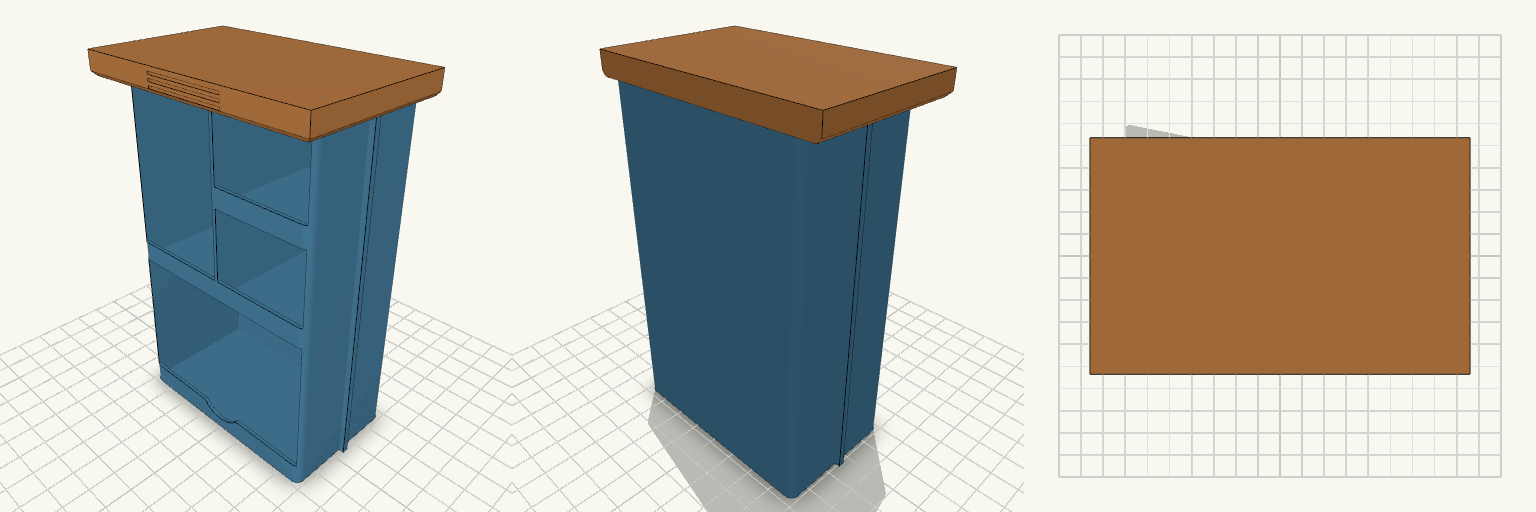

Sliding Tray With Lid Handle
