Kabelhalter 3 Kabel für 25 mm Tisch
Created today
Description
C-förmige Klemme für Tischplatten mit 25 mm Dicke. Der untere Arm hat drei offene Kabelschlitze, in denen Ladekabel senkrecht nach unten geführt werden. Das Teil liegt beim Drucken flach auf der Seite und braucht kein Stützmaterial.
Maße
- Gesamtbreite: 36 mm
- Gesamthöhe: 37,5 mm
- Armlänge: 40 mm
- Spalt für Tischplatte: 25,5 mm
- Armstärke: 6 mm, Rückwand: 6 mm
- Kabelschlitze: 3 Stück, Ø 8 mm, Mittenabstand 12 mm, Öffnung 6 mm
- Kanten 1 mm gefast
Druckhinweise
- Ausrichtung: auf die Breitseite legen (wie modelliert)
- Material: PETG oder PLA, 3 Wandlinien empfohlen
Images
More like this
Explore more in Desk & Tech →
Fidget Spinner Planetario Ø70 mm
Fidget spinner a ingranaggi planetari stampabile in un solo pezzo (print-in-place), diametro esterno 70 mm, con ingranaggio solare centrale, 5 satelliti e anello esterno dentato internamente. L'anello è alleggerito da 10 fori passanti e non ha coperchi, così gli ingranaggi restano visibili. Diametro esterno: 70 mm, spessore 8 mm Modulo 1,5; solare 15 denti, satelliti 10 denti, corona 35 denti Denti elicoidali a spina di pesce (25°) che trattengono i satelliti senza assi Gioco sui denti: 0,25 mm Fori centrali Ø7 mm (solare) e Ø5 mm (satelliti) per alleggerire Stampa piatta, senza supporti; PLA o PETG
Foldable Snap-Fit Phone Stand
A rugged, fully printable foldable phone stand. It is printed in three flat pieces that snap together securely, allowing it to fold completely flat for travel. Features Adjustable Angles: Features 7 resting notches on the base plate to precisely control the screen angle. Snap-Fit Hinges: Uses C-clip snap joints that grip firmly onto 6mm pins without requiring any extra hardware. Travel-Ready: Folds down to a flat profile when not in use. Print Instructions Print flat on the bed as oriented. Standard PLA or PETG works perfectly. Ensure good bed adhesion for the flat plates. The snap-fit hinges are designed with a 0.4mm clearance — they will require a firm push to snap into place during assembly, but will hold tight thereafter.
Lazy-Tongs Piano Bottle Caddy
A pantograph-style drink arm in the spirit of a vintage lazy-tongs: a hooked clip straddles the top of a piano's music desk, and a three-unit scissor mechanism unfolds backward to carry a bottle cup. The cup sits inside a wide, rimmed drip tray, so condensation stays off the keys and cabinet. The arm folds flat for storage and stretches out for use. Pivots are print-in-place pins, and the two end joints ride in slots so the arms can open and close. Design notes Cup bore is 76 mm, sized for a standard 33.8 fl oz (1 L) water bottle; cup wall is 85 mm tall. Drip tray is 96 mm across with a 12 mm rim and sits flush with the arm plane. Clip slot fits a music desk about 13 mm thick; adjust the thickness value to suit your piano. Three colored regions: desk clip, scissor arms, cup and tray. Shown in a partly extended pose; the opening angle can be changed to show it folded or fully reached. Best printed as shown, with 0.4 mm clearances at the pivots. Support is only needed under the clip hook. A full bottle is a cantilever load, so keep the arm short for heavier bottles.
Raspberry Pi 5 Gehäuse mit Lüfterplatz
Zweiteiliges Gehäuse für den Raspberry Pi 5 mit Ausschnitten für alle Anschlüsse und einer Montageoption für einen 30×30-mm-Lüfter im Deckel. Lüfter: 30×30 mm, Lochabstand 24 mm, runde Öffnung 27 mm über dem Prozessor Befestigung: vier Domen innen im Deckel, Bohrung 2,7 mm für M3-Schrauben (selbstschneidend, ca. 10–12 mm) Ausschnitte: USB, Ethernet, USB-C, 2× Micro-HDMI, FPC, SD-Karte, GPIO, Lüfter-/RTC-/PCIe-Anschluss Lüftung: Bodenschlitze und Deckelschlitze Druck: Unterteil und Deckel liegen getrennt auf dem Druckbett
Arcade Console Desk Clock Case
A compact desk-clock enclosure with a gaming-rig attitude: chamfered shoulders, vented flanks and grooved front stripes under the OLED window, like a mini console from a late-night LAN party. Window for a 0.96" OLED on the front Standoffs for an ESP32 WROOM-32 devkit USB slot at the back Four corner screw bosses and a separate screw-on lid Side vent slots for airflow

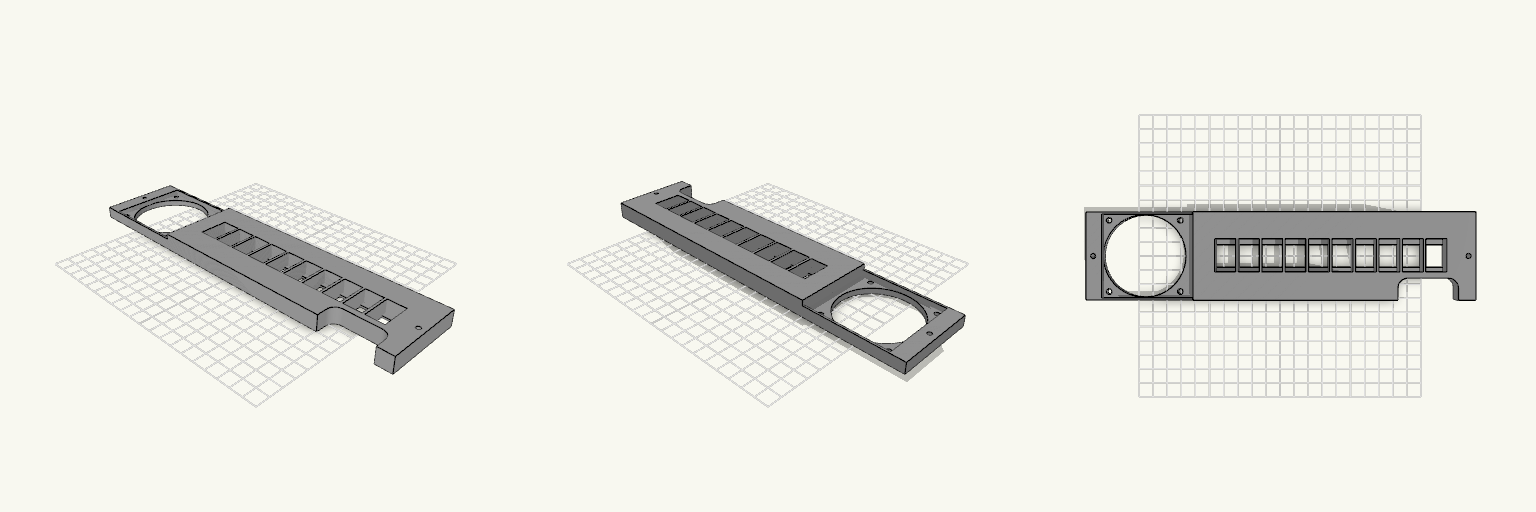

Ten-Port Keystone Panel With Fan
