Klassisk spillebrik uden support
Created today
Description
En traditionel spillebrik til brætspil som gåsespil: bred rund fod, aftagende kegleformet krop, en lille krave og et kugleformet hoved. Samlet højde ca. 33 mm, fodens diameter 22 mm. Hele brikken printes stående uden support.
Remix-muligheder
- Fodens diameter (22 mm): gør den bredere for mere stabilitet, eller mindre, hvis felterne på brættet er små.
- Højde: kroppen er 14 mm høj. Forlæng den for en mere slank brik, der er nem at gribe.
- Hovedet (14 mm kugle): skift til en terning, en cylinder eller et nummer, så hver spiller kan kende sin brik.
- Farve: print i forskellige filamentfarver, eller lav et hul i bunden til en lille magnet eller en vægt.
- Passer til andre brætspil, hvor brikkerne skal stå på felter på ca. 25 mm eller mere.
Images
More like this
Explore more in Decor & Display →
Christmas Tree Lantern for LED Tealight
A Christmas tree lantern that sits over a battery LED tealight, so the light stays hidden inside instead of glaring from a bare tealight on the table. The walls are perforated with rings of small round holes that throw dots of light, and the bottom is open so the LED can be placed or swapped without taking anything apart. Key numbers Height: about 135 mm including star Base diameter: 90 mm, open underneath (inner opening about 87 mm) Wall: 1.6 mm, three stacked tiers Perforations: 4.2 mm holes, staggered rings Star: separate colour, peg-mounted into the top tier Printing Print upright, open end down, no supports needed for the cone walls Green for the tree, gold or yellow for the star Use a 0.4 mm nozzle; a lighter or translucent filament glows more
Lamp Bases, Shades and Diffuser Set
A set of mid-century lamp parts that all share one coarse 6 mm-pitch thread, so any shade fits any base. The set has two fluted shades (round and square ribs), a white adjustable diffuser and several bases: tall, short, grooved, two tripods, a flat-leg grooved tripod and a dowel-leg hub. Remix hooks Flat-leg tripod: legs are 16 mm wide slabs (before scaling) with two grooves, 3.2 mm wide, down each outer face. Change the groove count, offset (±4 mm) or width. Leg height and spread: hub height 70 mm and foot radius 70 mm set the splay. Raise both for a taller version. Thread spigot: 52 mm across, 38 mm long. Keep it to stay compatible with the shades. Pairs with: either fluted shade and the diffuser. The 42 mm bore runs straight through for the bulb and cord.
Teardrop Lamp Parts, Terracotta and Wood
A mid-century teardrop table lamp laid out as separate print pieces: fluted base, threaded crown collar, hollow prolate-spheroid diffuser and three dovetail-cleat prongs. A second set of the base, crown and prongs is included in a walnut-style wood tone, so one diffuser works with either finish. Remix hooks Wood finish: the wood set is the same geometry in a different colour. Print it in wood-fill or walnut-toned filament, then sand and oil it. Real grain would need a textured surface, which is a good next step. Fit: the thread clearance is about 0.4 mm and the cleat clearance about 0.3 mm. Adjust these to suit your printer. Bulb: it is sized for a 127 mm T10 or an ST19. The crown bore is 31 mm and the diffuser opening is 36.5 mm. Pairs with: an E26 socket, plus a small glue dab or set screw if you want the cleats locked. The tallest piece, a prong, is about 203 mm, so everything fits a 256 mm bed.
Pad Plate — Offset Square Marker
Pad Plate is a flat base plate with a small raised square pad near one end, built as a clean surface for labels, stickers, or a colour swap. The pad is sized to sit comfortably on the plate and stays low enough to print cleanly in a few layers. Dimensions Plate: 28.5 × 40 × 3 mm Pad: 11 × 11 mm, 0.7 mm thick Pad position: centred in X, 2 mm in from the Y- edge Print notes 0.7 mm pad suits a 0.2 mm layer height at roughly 3 to 4 layers. Print flat, no supports needed. Pad and plate are separate colour regions, so a filament swap at the pad layer works well.
Extruder Figure on Cloud Plate
A printable extruder-style character lying on its back, standing in front of a solid 2 mm cloud plate. The name "Printytron" is raised on the body below the screen and is a separate part, so it can be coloured on its own. Boxy body with a recessed magenta screen showing a face with curved eyebrows and pupil indents Curved arms, thick hands, side box with teal button Hexagonal nozzle with a chunky square collar, flat on the plate Raised Space Mono lettering in its own colour Cloud backing plate whose bottom edge lines up with the hands and nozzle so the print can stand on a desk

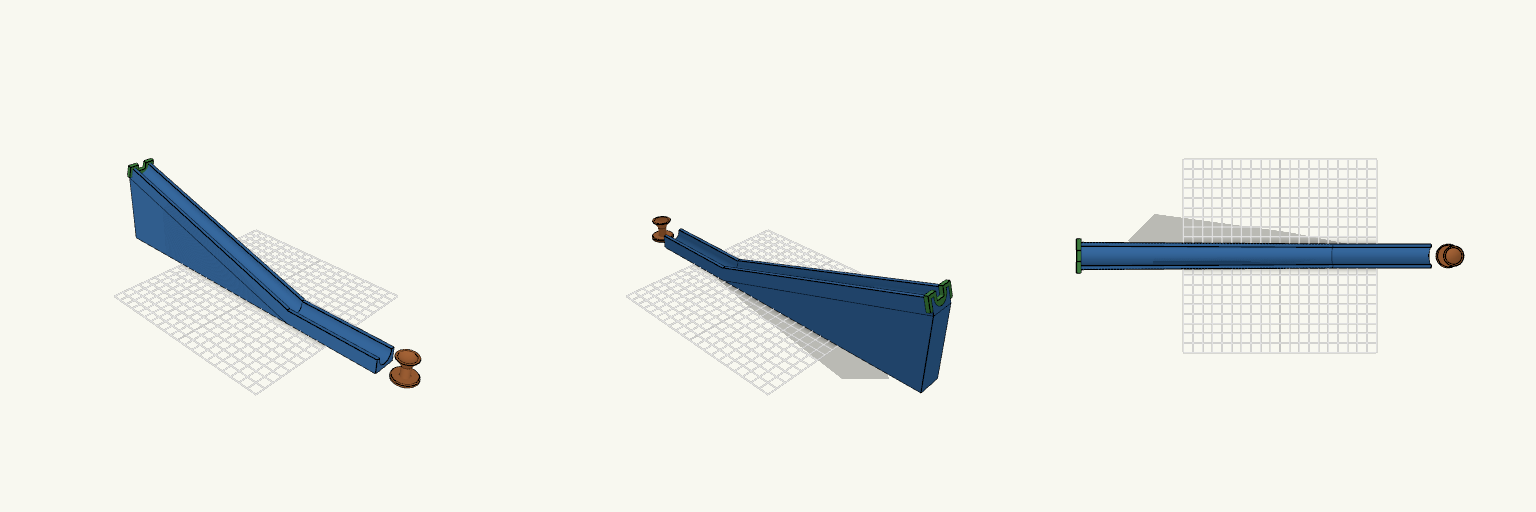

16 mm Ball Track with Support Post
