Konischer Rohradapter 34 auf 26 mm
Created today
Description

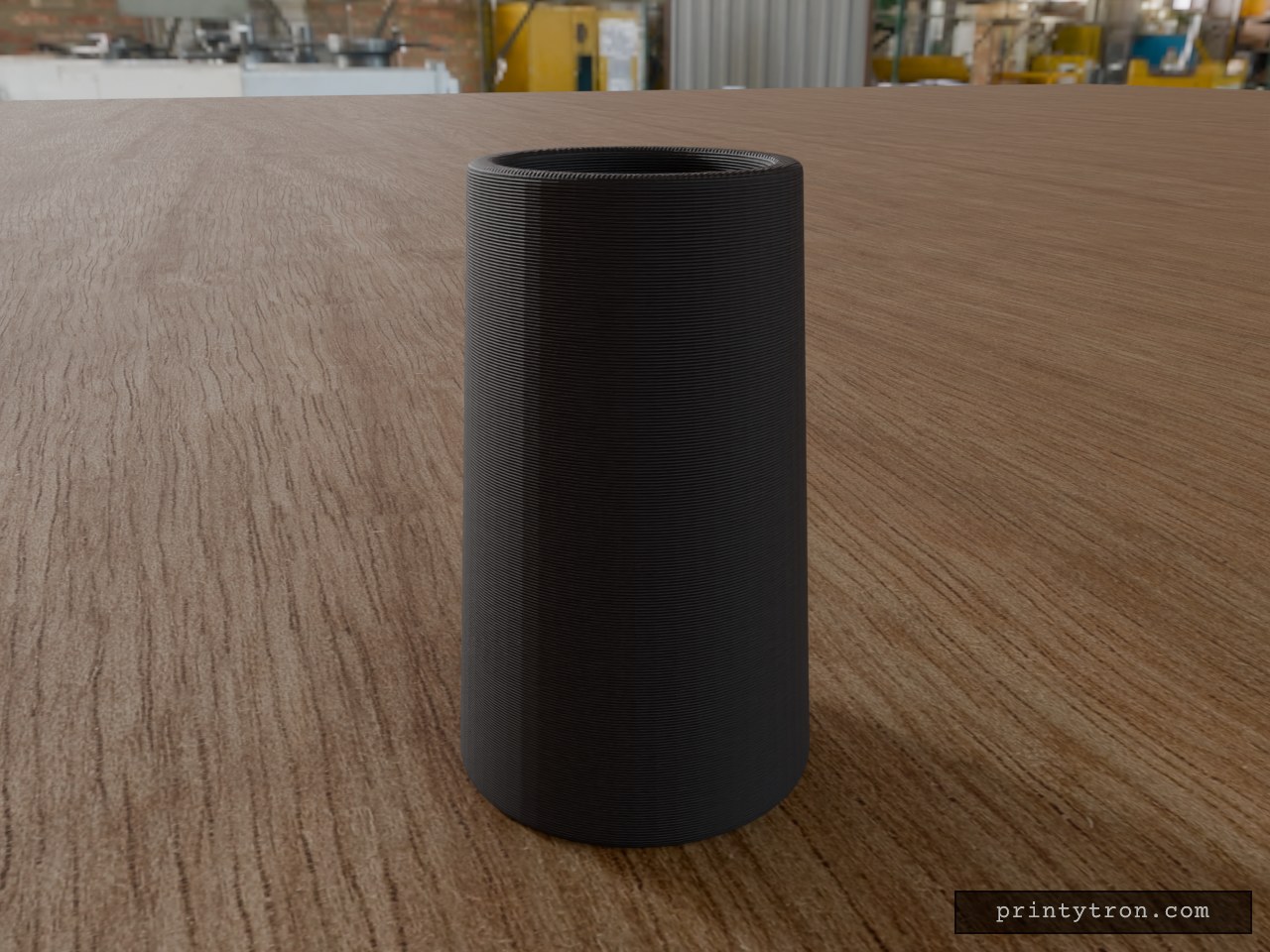

Konischer Rohradapter, 65 mm lang, mit gleichmäßiger Verjüngung von Innen-Ø 34 mm auf Innen-Ø 26 mm. Die Stirnkanten sind mit 1 mm Radius abgerundet, damit die Oberfläche glatt ist und sich Schläuche leichter aufstecken lassen.
- Länge: 65 mm
- Innen-Ø Anfang: 34 mm, Innen-Ø Ende: 26 mm
- Außen-Ø Anfang: 40 mm, Außen-Ø Ende: 32 mm
- Wandstärke: 3 mm (horizontal gemessen)
- Kantenradius an den Stirnseiten: 1 mm
- Druck: stehend auf der großen Öffnung, ohne Stützen
Photos
Technical views
More like this
Explore more in Home & Fixtures →
Eccentric Duct Adapter 125mm
What it's for Bathroom duct adapter that connects a round duct to a flat rectangular duct. Both ends are female sockets, and the airflow passage is fully open. The round socket has a wide bore for a loose, free fit. Dimensions Round socket: Ø142.5 mm inner, Ø147.3 mm outer, 30 mm long, 1.5 mm entry chamfer Flat socket: 222 × 92 mm inner, 5 mm corner radius, 30 mm long Transition: 160 mm, smooth round-to-rectangle loft Vertical offset of the flat socket: 72.5 mm Wall thickness: 2.4 mm Overall length: 220 mm Remix ideas Change the bore diameter to tune the fit for a different duct. Adjust the vertical offset for another mounting position. Lengthen the sockets for a deeper grip.
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.
Bote de basura innovador
Bote de basura con tres compartimentos para orgánicos, reciclables y basura general. Evita que todo termine mezclado en una sola bolsa y que haya que tocar la tapa con las manos sucias. Cada compartimento tiene su propia abertura con trampilla de color. Dos sensores al frente detectan a la persona que se acerca, una pantalla indica el nivel de llenado, un panel solar inclinado en la parte trasera alimenta la electrónica y cuatro ruedas permiten moverlo. Datos clave Diámetro del cuerpo: 240 mm; altura total sin panel: unos 346 mm Tres sectores de 120° separados por divisiones de 3 mm Aberturas de 76 mm de diámetro, una por compartimento Ruedas de 36 mm en cuatro soportes Impresión por piezas: cuerpo, tapa, chasis, ruedas y panel; paredes de 3 mm, sin soportes en el cuerpo La electrónica (sensores, pantalla, motores) no está incluida: el modelo solo aporta alojamientos y forma

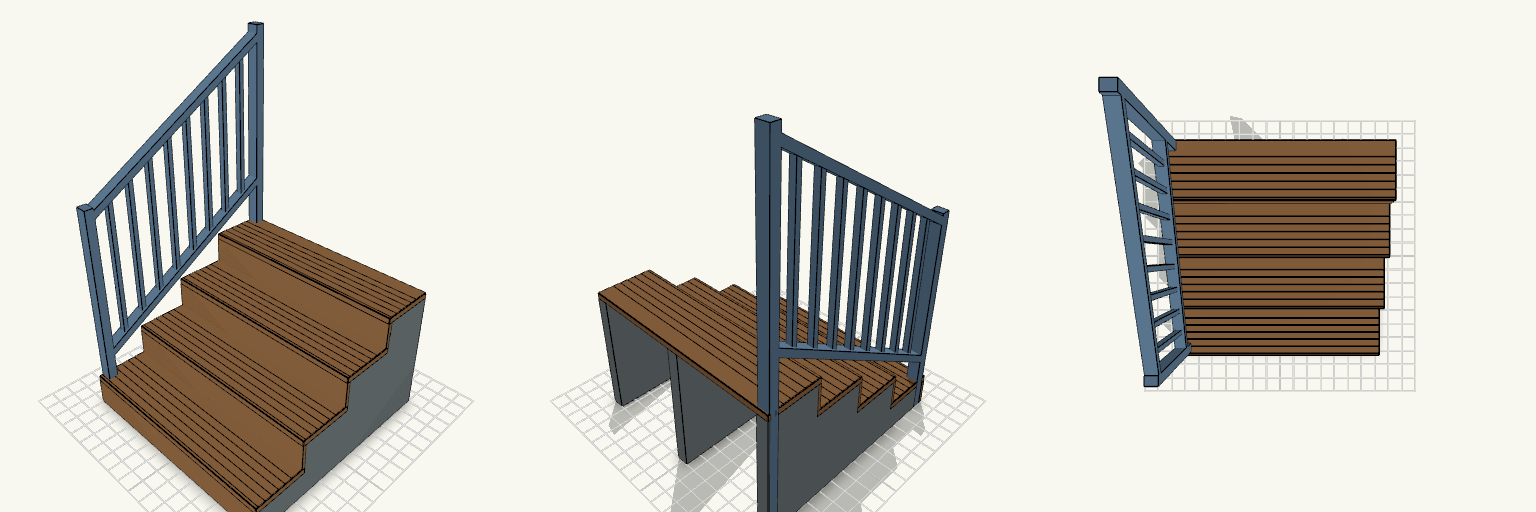

Veranda Steps with Picket Handrail
