Lifebuoy — Wall Key Rack
Created today
Description
Lifebuoy is a wall-mounted key rack shaped like a beach lifeguard buoy, with a red body, white LIFEGUARD lettering and five sturdy hooks.
Features
- 230 mm long stadium-shaped body, 70 mm tall, 14 mm deep
- Letters as a separate white piece set into a pocket in the red body
- Five round-tipped hooks along the lower front
- Two rear keyhole-style screw holes with counterbores
- Flat back for printing without supports
Print notes
Print the body and the letters in separate colours (PLA, 0.4 mm nozzle), back face down.
Photos
Technical views
More like this
Explore more in Home & Fixtures →
Wall-Mounted Bedside Floating Shelf
What it's for A sleek floating shelf for beside the bed at about head height, sized for an ornament or a small potted plant. A back plate with four countersunk screw holes fixes it to the wall, and two triangular brackets support the top. The design is symmetrical, so printing two gives a matching pair for each side of the bed. Dimensions Shelf top: 200 × 120 × 12 mm, rounded edges Back plate: 170 mm wide, 6 mm thick, 70 mm tall including the shelf Screw holes: four, 4.5 mm shank with 9 mm countersink, set 80 mm apart, the upper pair just below the shelf Brackets: two, 6 mm thick, at X ±70 mm Print notes Prints with the top face on the bed, with no supports needed. Use wall plugs suited to your wall type and countersunk screws with heads up to 9 mm. Remix ideas Narrow the shelf for tighter spaces. Add a small front lip to keep ornaments from sliding off. Add a cable notch for a bedside lamp.

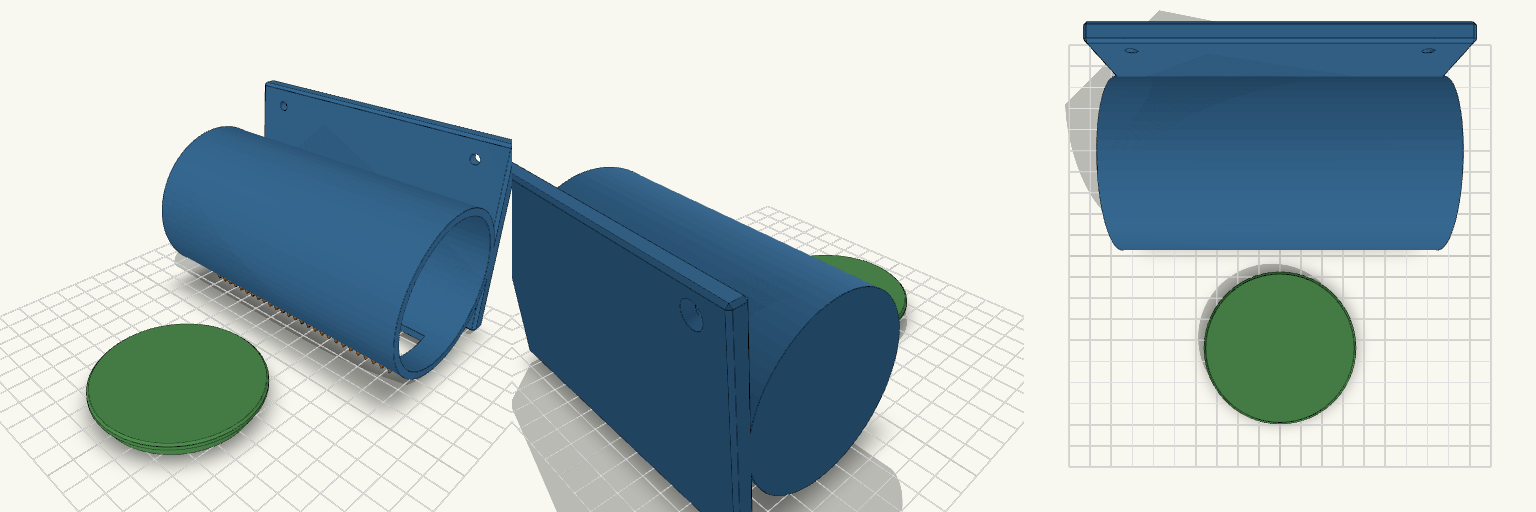

Under-Sink Bag Roll Dispenser Barrel
