Low Profile Probe Rack
Created 1 months ago
Description
A bulky wall mount that catches on sleeves and knocks things off the bench is exactly what we don't want. Chopping the back plate down to a stubby profile gets the plastic out of the way while keeping the rack mounted firmly against the wall.
Fit Details
- Capacity: 8 scope probes
- Grip Clearance: 10mm holes
- Mounting: Swapped to smaller M3 countersunk holes to fit the shorter 12mm back plate
Photos
Technical views
More like this
Explore more in Workshop & Tools →
4mm Square Key & Mount
The 4mm square key is the thing you can never find when a radiator needs bleeding or a panel needs opening. This gives the key a dedicated wall mount so it actually stays put. Includes a fitted bracket and custom printed M4 screws that use the same 4mm square drive as the key itself — meaning you don't even need a separate screwdriver to mount the bracket. Mounting bracket: 55mm × 15mm Key shaft: 4mm square Screw drive: 4.5mm square recess
2 cadenas module
A wall-mounted 200×200 mm lockout tagout station designed to hold 15 industrial safety padlocks. The single-piece board features reinforced, support-free pegs sized to slip through standard 6.35 mm padlock shackles, retaining them securely while lying completely flat on the print bed. Dimensions: 200 mm width × 200 mm height × 12 mm total depth Capacity: 15 padlocks (3 rows of 5) Hook Profile: 5 mm diameter shaft, expanding to a 7 mm chamfered retaining lip Material Guidelines: Optimized for PETG; standard print cooling recommended for the peg tips Mounting: Four 5 mm countersunk wall-mounting holes
Biofloc Monitor Station Enclosure
An enclosure is only as good as the snarl of wires it prevents. This is a heavy-duty two-part monitor housing built specifically for FDM printing, designed to group, separate, and anchor a complete suite of biofloc water-quality electronics without turning into a bird's nest inside. The layout isolates the battery compartment at the bottom and keeps the DC buck converters and relay in a ventilated top section, leaving the central deck clear for the ESP32 and an array of sensor interfaces. Internal divider walls double as cable routing channels, forcing the wiring to stay orderly. Core Features Printability: Both halves print completely flat on the build plate (Z=0). The integrated bottom handle is flush with the front face to avoid overhangs. Dimensions: 170 mm width × 250 mm height × 75 mm depth. Hardware Required: 6× M3 screws for the rear cover; additional M3 hardware for the internal standoffs and the 16x2 LCD faceplate mount. Ports: Bottom panel holds 4× sensor ports (3× 8mm, 1× 6mm) with engraved labels. Right panel holds cutouts for 12V DC, an SD card slot, a rocker switch, and USB programming access.
LockDrop — Packout Cup Holder
A rugged, drop-in cup holder designed to integrate perfectly with the Packout system. Secures easily onto any standard Packout lid using an integrated twist-lock cleat that sits flush for straightforward 3D printing. The main body accommodates standard tumblers and bottles while the heavy-duty walls and gussets ensure side-load stability. Features Twist-Lock Cleat: Drops into standard female Packout receivers with a friction fit. Flush Base Construction: Designed to print cleanly without complex supports for the bottom locking mechanism. Heavy-Duty Walls: Thickened sides with structural gussets engineered for shop environments. Front Branding: Embossed Milwaukee logo wrapping the front curve for a finished tool aesthetic. Drainage: Integrated center channel prevents liquid and debris buildup.

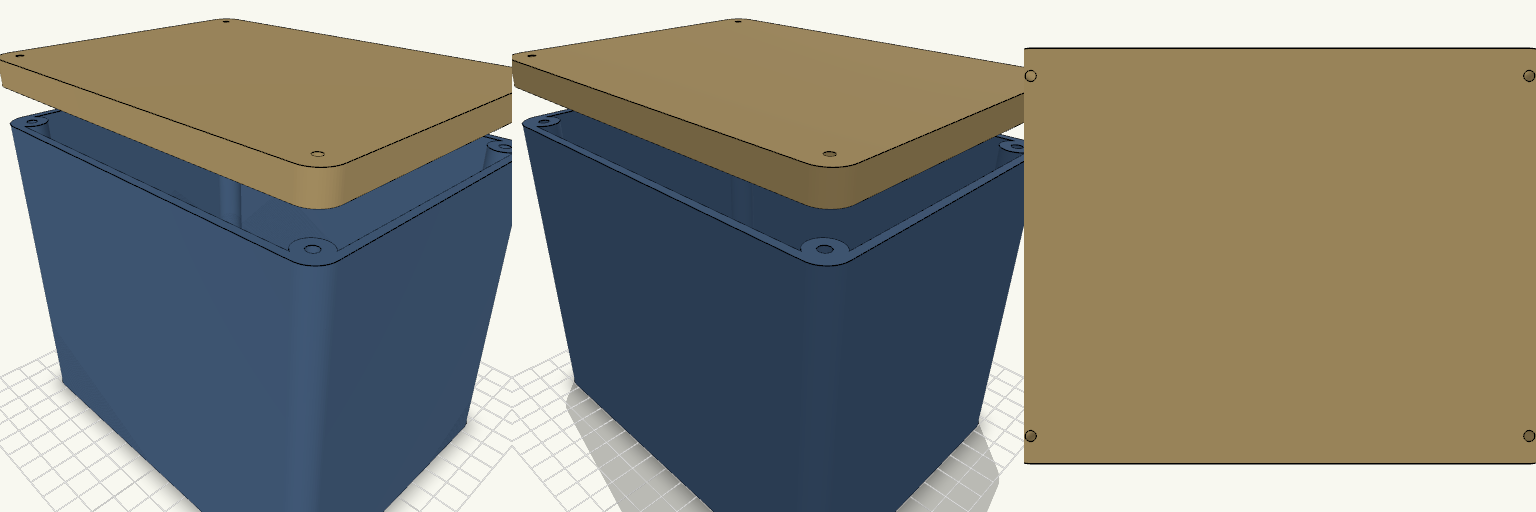

Electronic Project Box With Cap
