Lamp Bases, Shades and Diffuser Set
Created today
Description
A set of mid-century lamp parts that all share one coarse 6 mm-pitch thread, so any shade fits any base. The set has two fluted shades (round and square ribs), a white adjustable diffuser and several bases: tall, short, grooved, two tripods, a flat-leg grooved tripod and a dowel-leg hub.
Remix hooks
- Flat-leg tripod: legs are 16 mm wide slabs (before scaling) with two grooves, 3.2 mm wide, down each outer face. Change the groove count, offset (±4 mm) or width.
- Leg height and spread: hub height 70 mm and foot radius 70 mm set the splay. Raise both for a taller version.
- Thread spigot: 52 mm across, 38 mm long. Keep it to stay compatible with the shades.
- Pairs with: either fluted shade and the diffuser. The 42 mm bore runs straight through for the bulb and cord.
Images
More like this
Explore more in Decor & Display →
Teardrop Lamp Parts, Terracotta and Wood
A mid-century teardrop table lamp laid out as separate print pieces: fluted base, threaded crown collar, hollow prolate-spheroid diffuser and three dovetail-cleat prongs. A second set of the base, crown and prongs is included in a walnut-style wood tone, so one diffuser works with either finish. Remix hooks Wood finish: the wood set is the same geometry in a different colour. Print it in wood-fill or walnut-toned filament, then sand and oil it. Real grain would need a textured surface, which is a good next step. Fit: the thread clearance is about 0.4 mm and the cleat clearance about 0.3 mm. Adjust these to suit your printer. Bulb: it is sized for a 127 mm T10 or an ST19. The crown bore is 31 mm and the diffuser opening is 36.5 mm. Pairs with: an E26 socket, plus a small glue dab or set screw if you want the cleats locked. The tallest piece, a prong, is about 203 mm, so everything fits a 256 mm bed.
Ember Flame Sculptural Table Lamp
A frozen-flame silhouette in the spirit of mid-century modern ceramics: a wide, flared foot that narrows into a tall neck and opens at the crown into three prongs. A tapered, flame-shaped window shows a separate amber diffuser, so the lamp reads as a contained fire when lit. Hollow terracotta shell with a flat, stable base Open bottom cavity sized for an E26 bulb and socket Side wire port near the foot Separate diffuser printed in translucent amber or yellow filament Print the shell upright; the diffuser prints on its own Use a low-heat LED bulb to keep the plastic safe.

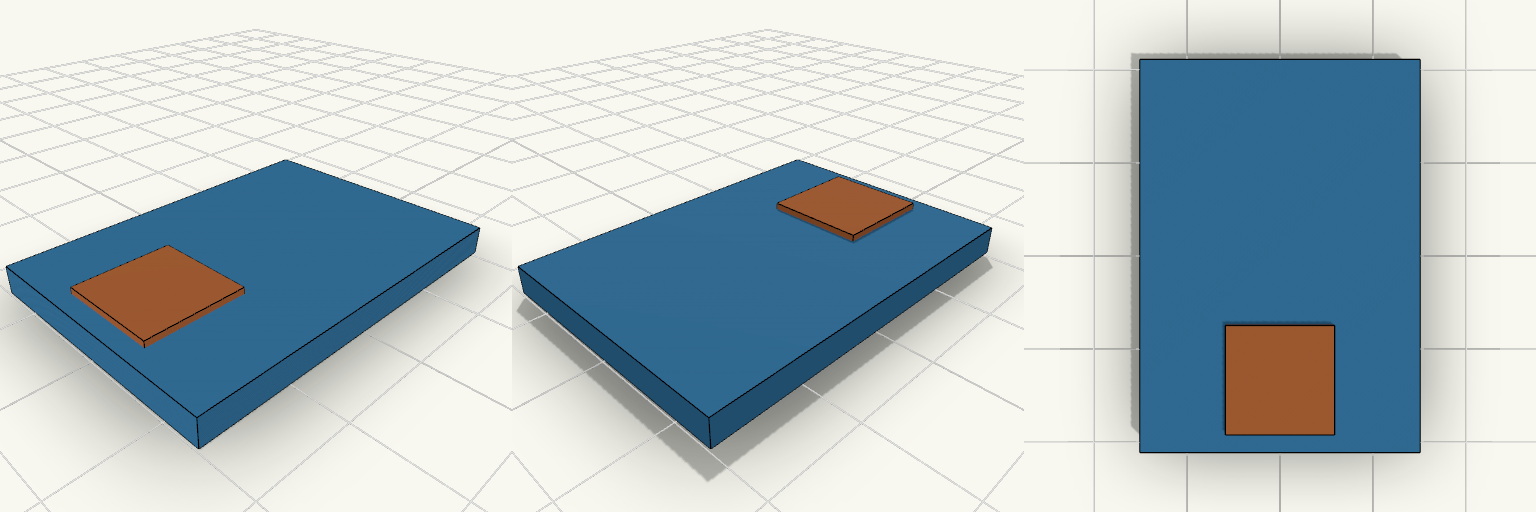

Pad Plate — Offset Square Marker
