Miniature Pop-Up Toaster, 70x46x45 mm
Created today
Description
A small mechanical toaster printed as separate parts: body, toast carriage, two toast slices and a side lever. Pressing the lever handle down raises the carriage and pops both slices up out of the slots. No springs are used. Lowering the lever pulls the toast back down.
How it works
- The lever pivots on a pin moulded into the right side wall.
- A peg on the lever passes through an arc slot in the wall into a horizontal slot in the carriage side plate. The peg's travel lifts the carriage about 14 mm.
- The ends of the arc slot are the up and down stops. Two floor blocks inside the body act as backup low stops.
- Each toast slice has a tenon that locates in a pocket on its carriage tray.
Specs
- Body: 70 x 46 x 45 mm, open bottom. Print it upside down with the top plate on the bed.
- Overall assembled size: about 76 W x 52 D x 60 H mm with the toast raised.
- Carriage: 1 mm side clearance to the walls. Slice tenon clearance 0.3 mm per side.
- Slots: 27 x 7 mm for slices 25.5 x 5 mm.
- Print settings: PLA, 0.2 mm layers, 3 walls, 10-12% infill. No supports are needed.
- Estimated filament: roughly 35-45 g. This is below the 50-60 g target, so walls can be thickened if more weight is wanted.
Assembly
- Slide the carriage into the body through the open bottom. Slice tenons face up.
- Press the lever hub onto the pivot pin, feeding the peg through the arc slot into the carriage slot.
- Add a dab of glue to the pin head if the snap fit is loose.
- Drop the slices into the slots.
Images
More like this
Explore more in Decor & Display →

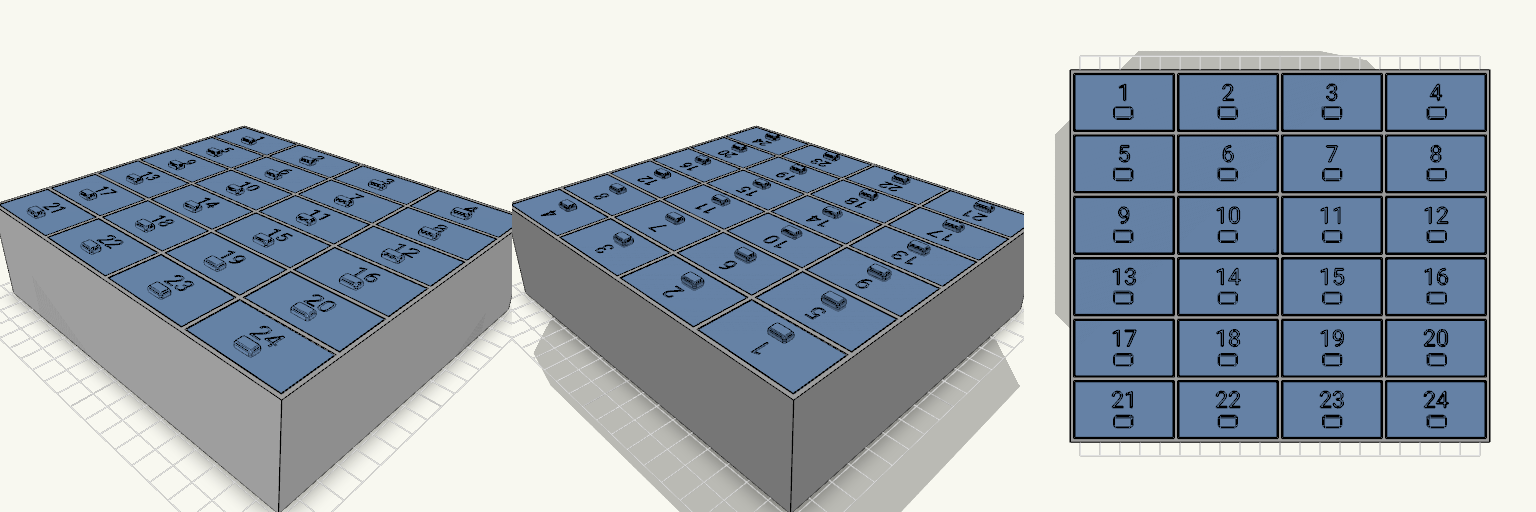

Advent Calendar With 24 Drawers
