Description
A slim protective sleeve for the SIBIONICS SiWatch with its own reinforced strap lugs, so strap load bypasses the broken originals. The screen, back sensors and charging contacts stay open, and two separate button openings sit on one side edge.
Remix hooks
- button1_offset / button2_offset: Y position of each opening along the side, measured from the watch centre. Starting values are -5 mm and +5 mm. Each moves independently.
- btn_z, btn_len, btn_h: opening height above the back (5.5 mm), length (6 mm) and height (3.5 mm).
- btn_side: 1 for the +X edge, -1 for -X.
- Cavity: watch_w 38, watch_l 44, watch_h 11 and corner_r 9 mm are placeholders to measure.
- Strap: strap_w 22, bar_d 3, bar_z 6.5 and bar_y 1.5 mm.
Pairs well with a test-fit print in cheap filament before the final one.
Images
More like this
Explore more in Decor & Display →
Moldura A4 Vertical 250 × 337 mm, Fundo Aberto
Moldura para folha A4 (210 × 297 mm) na vertical, em duas metades unidas por pinos-guia, com a folha entrando por uma fresta na travessa superior. Medidas Externo: 250 × 337 × 15 mm Abertura visível: 202 × 289 mm, lábio frontal de 5 mm Bolso do papel: 212 × 299 mm Fresta superior: 206 mm de largura Fixação e encaixes 4 pinos-guia de Ø5 × 8 mm na metade superior, com alojamentos de Ø5,6 mm na inferior Keyhole para prego: entrada de Ø10 mm e fenda de 4,2 mm, na travessa traseira superior Gancho na borda inferior frontal Verifique antes de imprimir Cada metade mede 250 mm de largura, acima dos 220 mm de uma impressora comum. A traseira é aberta abaixo da travessa do keyhole, então nada segura a folha por trás. Não serve para papel muito fino ou ondulado.
Mandarin Community Town Model
A tabletop town for practising Mandarin place words, where flat labels get lost. Each building, sign and park area carries its Chinese characters, pinyin and English on the front face, so the vocabulary sits right on the thing it names. Details that matter Base: 200 × 200 mm, 4 mm thick plate Buildings: hospital, library, community center, store and school, each 46 × 28 mm footprint Extras: park with pond, road, footpaths, houses, cars, trees, lamps and figures Colour regions: ground, road, walls, roofs, doors, lettering, signs, trees, lawn, pond, paths Print: large bed needed (or scale down); multicolour or paint by region; lettering is 0.8 mm raised, so use a 0.4 mm nozzle

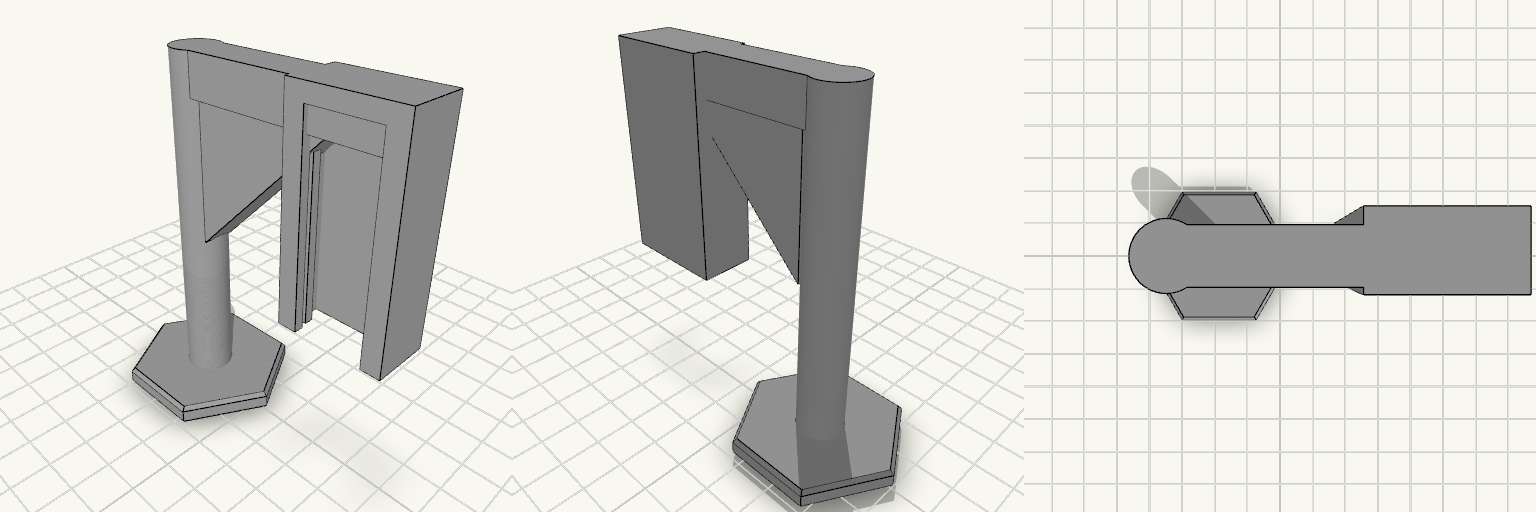

Cross Arm Traffic Light Pole Model
A miniature traffic light pole with a horizontal cross arm, built as a single-piece STEM teaching model. A hexagonal base keeps the 90 mm round pole upright. The 45 mm arm carries a slide-in holder at its end for a 52 × 22 mm traffic light PCB module. Pole: 12 mm diameter, 90 mm tall, on a 44 mm hexagon base Arm: 45 mm from the pole axis, with a 45° brace underneath so it prints without support Holder: 2.2 mm walls, edge lips, and a top stop. The board slides in from below Rear clearance: 6 mm gap behind the board, open on the cable side for the 5-pin connector Board fit: assumes 1.6 mm thickness with 0.2 mm play per side Prints upright in PLA as one piece.
Christmas Tree Lantern for LED Tealight
A Christmas tree lantern that sits over a battery LED tealight, so the light stays hidden inside instead of glaring from a bare tealight on the table. The walls are perforated with rings of small round holes that throw dots of light, and the bottom is open so the LED can be placed or swapped without taking anything apart. Key numbers Height: about 135 mm including star Base diameter: 90 mm, open underneath (inner opening about 87 mm) Wall: 1.6 mm, three stacked tiers Perforations: 4.2 mm holes, staggered rings Star: separate colour, peg-mounted into the top tier Printing Print upright, open end down, no supports needed for the cone walls Green for the tree, gold or yellow for the star Use a 0.4 mm nozzle; a lighter or translucent filament glows more
Lamp Bases, Shades and Diffuser Set
A set of mid-century lamp parts that all share one coarse 6 mm-pitch thread, so any shade fits any base. The set has two fluted shades (round and square ribs), a white adjustable diffuser and several bases: tall, short, grooved, two tripods, a flat-leg grooved tripod and a dowel-leg hub. Remix hooks Flat-leg tripod: legs are 16 mm wide slabs (before scaling) with two grooves, 3.2 mm wide, down each outer face. Change the groove count, offset (±4 mm) or width. Leg height and spread: hub height 70 mm and foot radius 70 mm set the splay. Raise both for a taller version. Thread spigot: 52 mm across, 38 mm long. Keep it to stay compatible with the shades. Pairs with: either fluted shade and the diffuser. The 42 mm bore runs straight through for the bulb and cord.

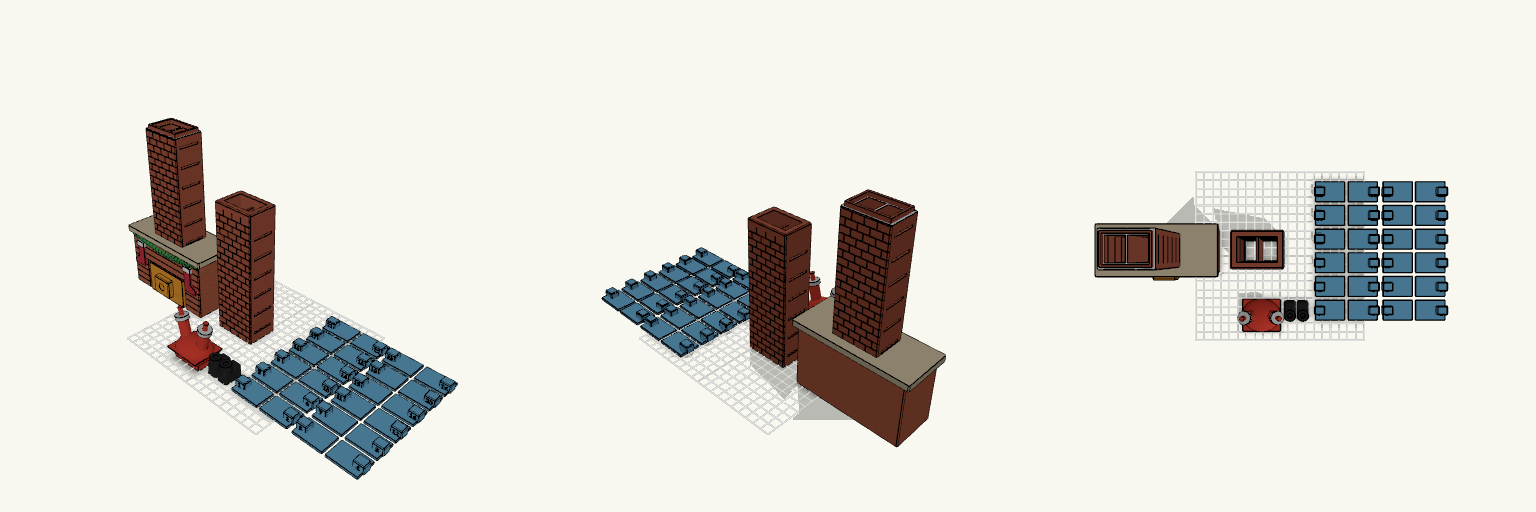

Fireplace Advent Calendar, Printable Multi-Piece
