Tabletop Wildlife Alert, 100 mm Diamond Sign
Created today
Description

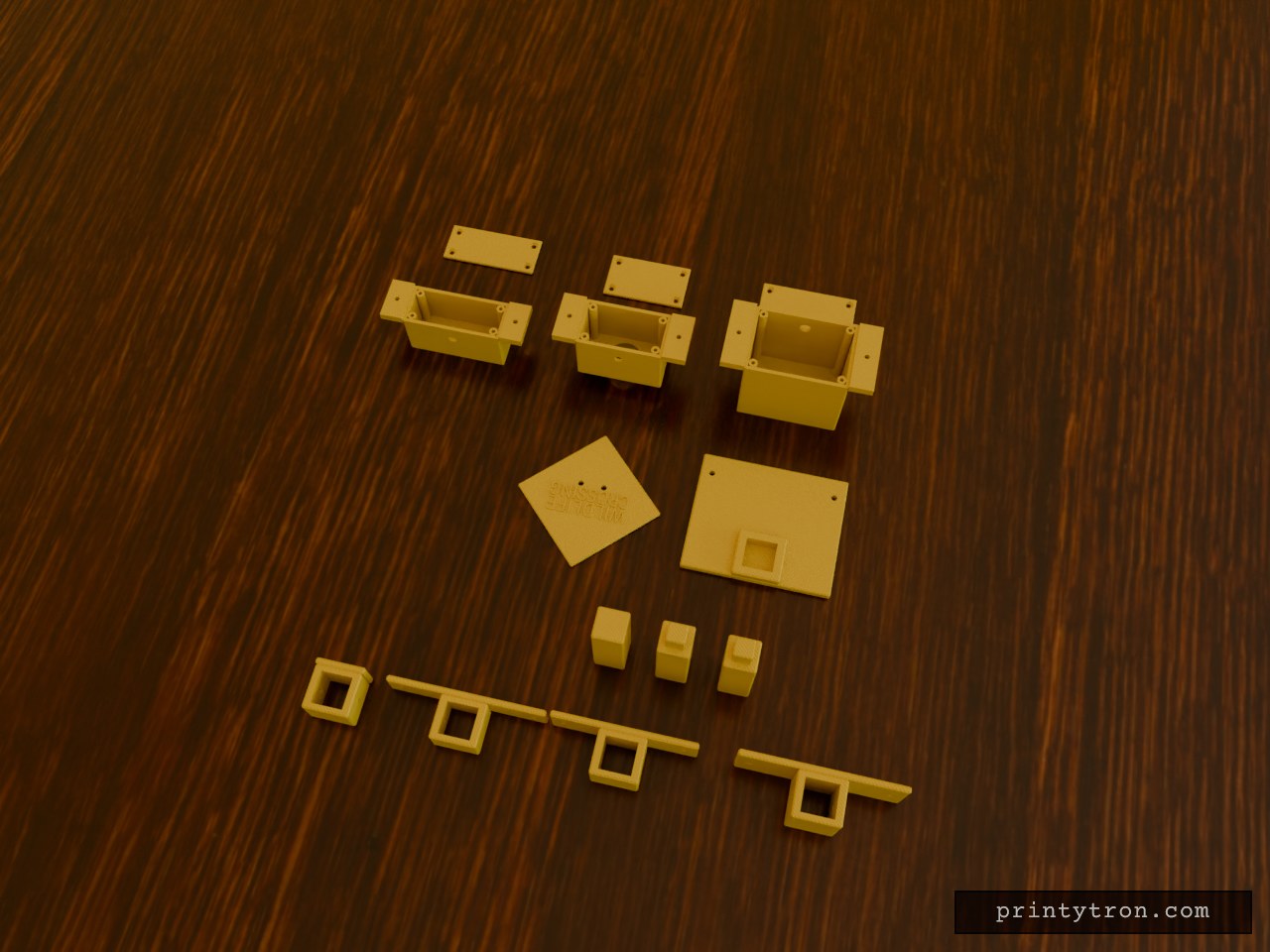

Modular tabletop wildlife-warning prototype printed as separate parts that bolt together: base, three pole sections, four brackets, electronics enclosure with lid, PIR sensor housing with rain hood and lid, amber light housing with lid, and a diamond sign reading WILDLIFE CROSSING with no graphic.
The stack runs bottom to top: electronics enclosure, PIR sensor facing forward, two amber LED openings, then the sign. Each housing screws to its own bracket, and each bracket clamps onto the pole with one cross-screw.
Dimensions (mm, outside)
- Electronics enclosure: 70 × 60 × 50, interior about 65 × 57 × 45, with lid
- PIR housing: 60 × 40 × 35, 23 mm lens opening, rain hood, with lid
- Light housing: 70 × 35 × 30, two 8 mm LED openings, with lid
- Sign: diamond 100 point to point, 3 mm thick
- Base: 100 × 84 × 6
- Pole: three sections, 20 × 20 × 58
- Overall height: about 224
To confirm before printing
- Controller board size (a full Uno will not fit the interior)
- PIR lens diameter and LED diameter (23 mm and 8 mm are placeholders)
- Printer build area
- Electronics are untested

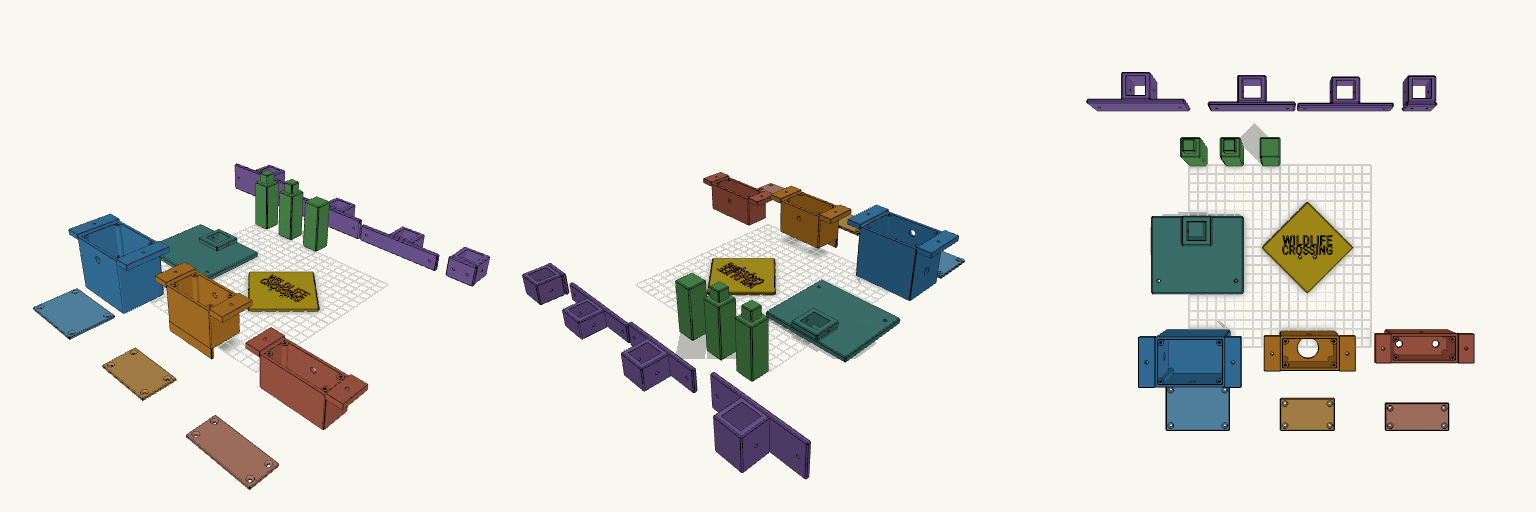

Photos
