Modulær Vandmodstands-Blok
Created today
Description

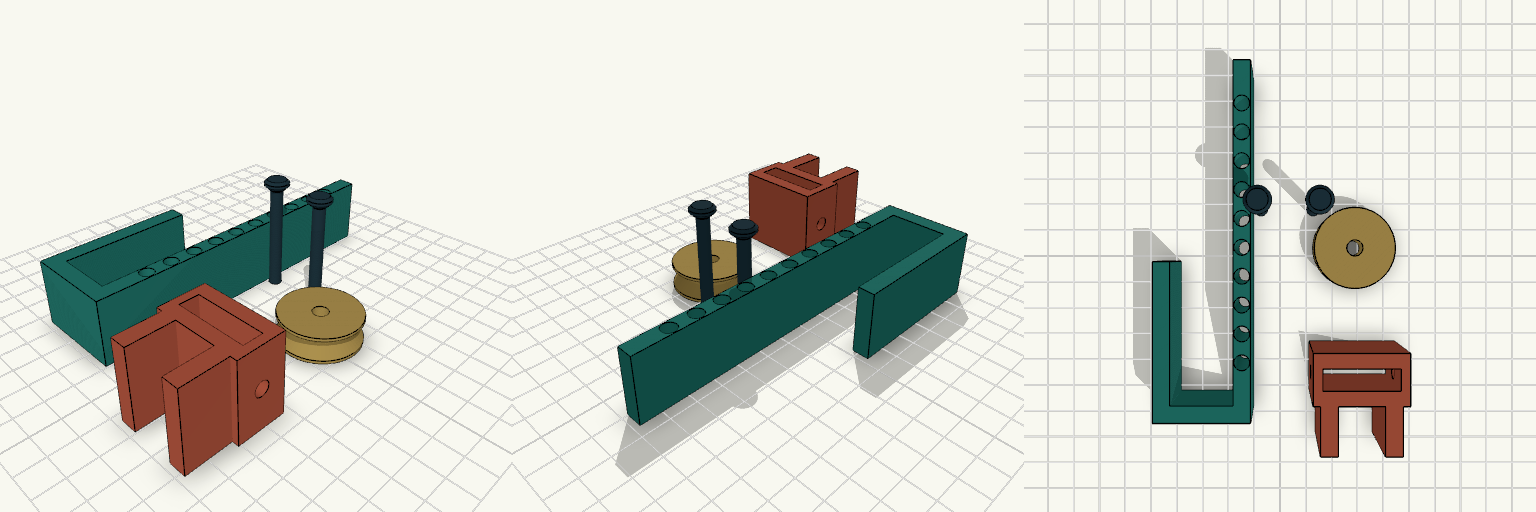

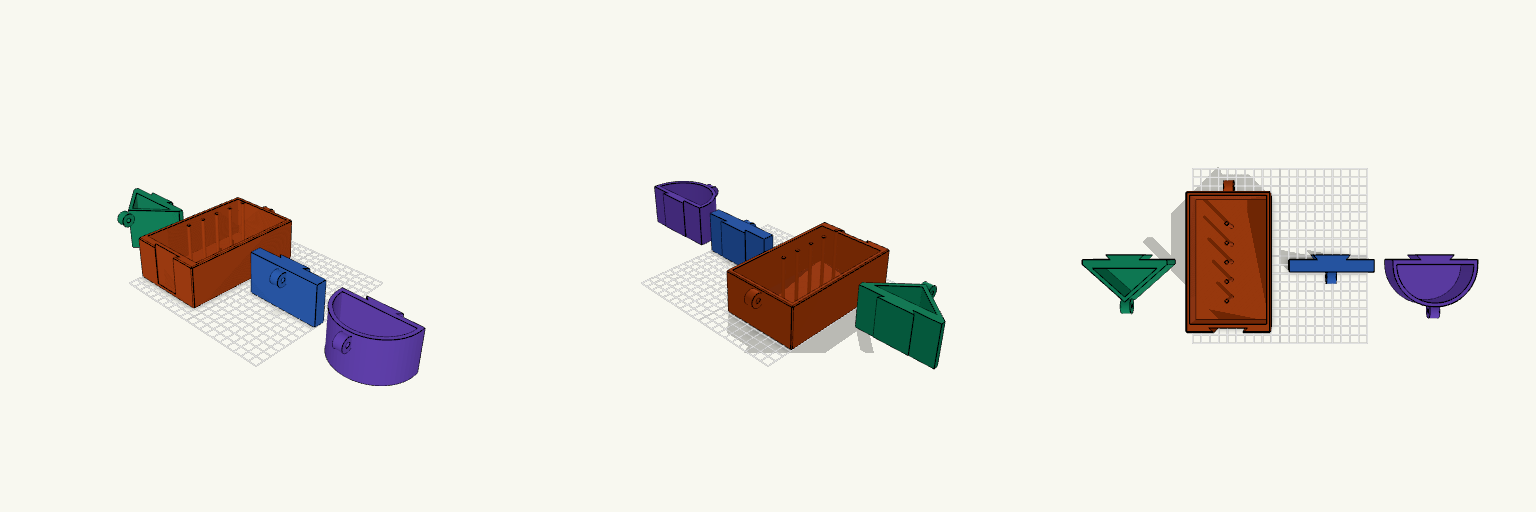

Et modulært testsystem til at måle vandmodstand ("bluff body"-træk). Hovedskroget fungerer som en tung ballastkasse med master i bunden, der lader dig justere vægten ved at placere standard fysiklodder. Udskiftelige frontplader gør det nemt at isolere formfaktorens betydning for modstanden.
Dette design er tænkt som et udgangspunkt for at teste forskellige stævnprofiler:
- Modulær front: Svalehalesporet lader dig nemt slibe eller designe nye frontprofiler uden at skulle printe hele skroget igen.
- Justerbar dybgang: Masterne (3.9 mm i diameter, 20 mm afstand) er lavet specielt til standardlodder — tilføj eller fjern lodder for at ændre tyngdepunktet.
- Trækpunkter: Øjerne er placeret 10 mm fra toppen, så din snor kører lige ved vandlinjen i et fyldt kar.
