Moldura A4 Vertical 250 × 337 mm, Fundo Aberto
Created today
Description
Moldura para folha A4 (210 × 297 mm) na vertical, em duas metades unidas por pinos-guia, com a folha entrando por uma fresta na travessa superior.
Medidas
- Externo: 250 × 337 × 15 mm
- Abertura visível: 202 × 289 mm, lábio frontal de 5 mm
- Bolso do papel: 212 × 299 mm
- Fresta superior: 206 mm de largura
Fixação e encaixes
- 4 pinos-guia de Ø5 × 8 mm na metade superior, com alojamentos de Ø5,6 mm na inferior
- Keyhole para prego: entrada de Ø10 mm e fenda de 4,2 mm, na travessa traseira superior
- Gancho na borda inferior frontal
Verifique antes de imprimir
Cada metade mede 250 mm de largura, acima dos 220 mm de uma impressora comum. A traseira é aberta abaixo da travessa do keyhole, então nada segura a folha por trás. Não serve para papel muito fino ou ondulado.
Images
More like this
Explore more in Decor & Display →

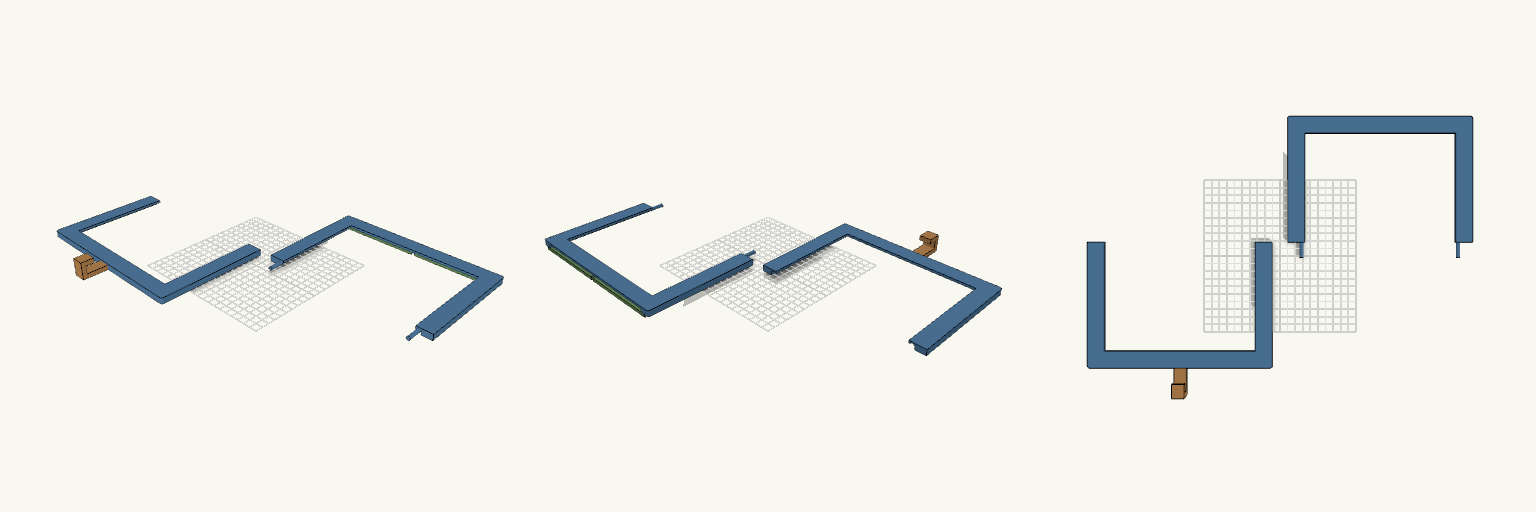

Moldura de Parede A4 com Gancho
