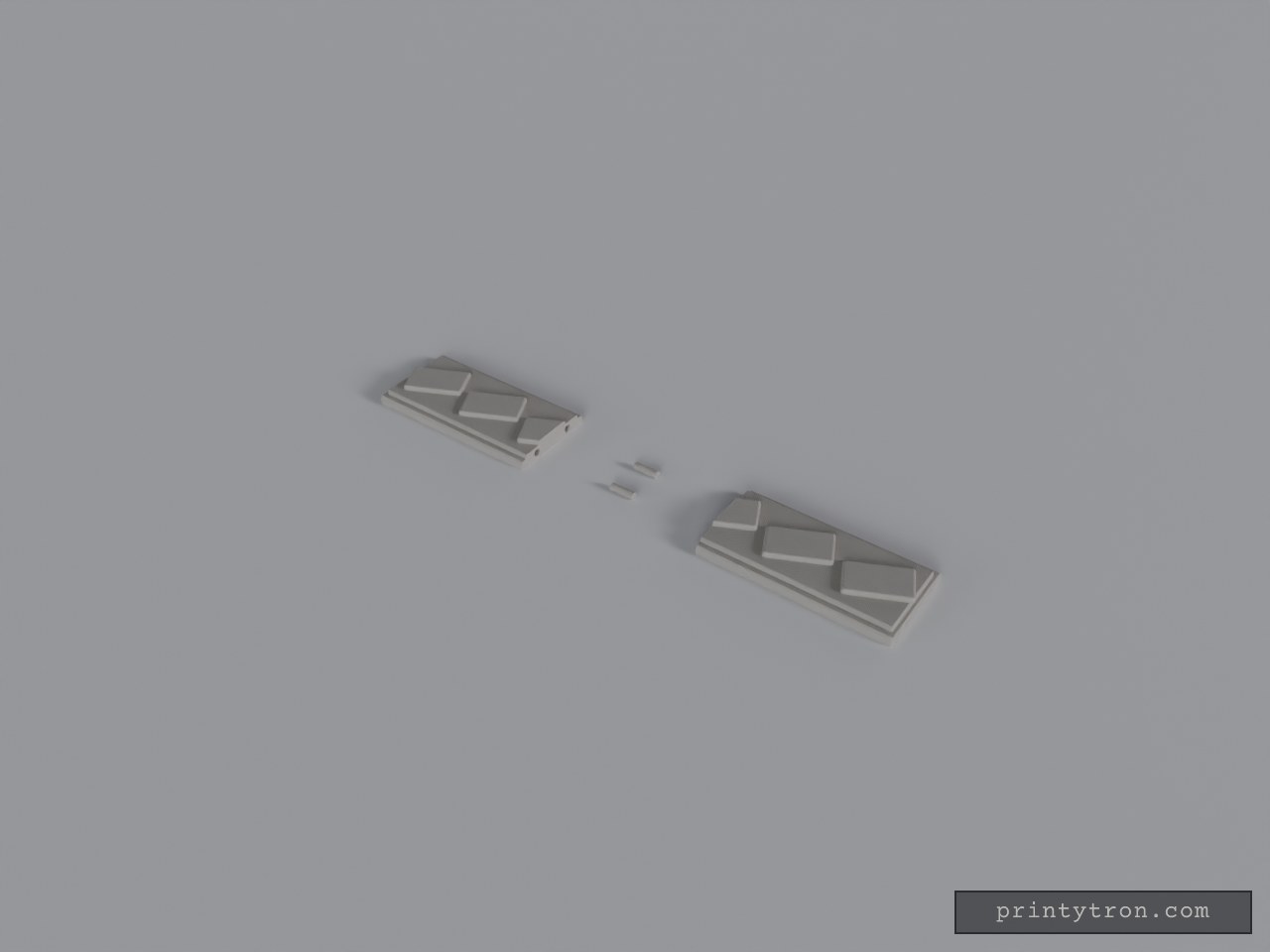

Nelore BCS Display Base
Created today
Description
What it's for
A structured, segmented display base designed to present five cattle models demonstrating Body Condition Scores (BCS). Features an elegant multi-tiered design with distinct angled platforms, giving each figure a dedicated presentation space without structural clutter.
Dimensions
- Overall footprint: 400 mm length x 100 mm width.
- Total height: 20 mm (10 mm main base, 5 mm middle tier, 5 mm individual platforms).
- Display pads: 65 mm x 40 mm, offset at a 25-degree angle.
- Split halves: 200 mm length each, designed to fit cleanly on standard 256x256 mm print beds.
Print notes
- Orientation: Print both base halves flat on their bottoms. Print the pegs horizontally as oriented in the file for maximum shear strength across the layer lines.
- Clearances: The dowel holes are 8.4 mm with 8.0 mm pegs. This 0.2 mm radial clearance is generous enough for easy assembly straight off a standard FDM printer, but tight enough to hold firmly with CA glue.
- Supports: None required. All chamfers and geometries are optimized for direct bed printing.
