Newar Lantern — Pagoda Temple Lamp
Created today
Description

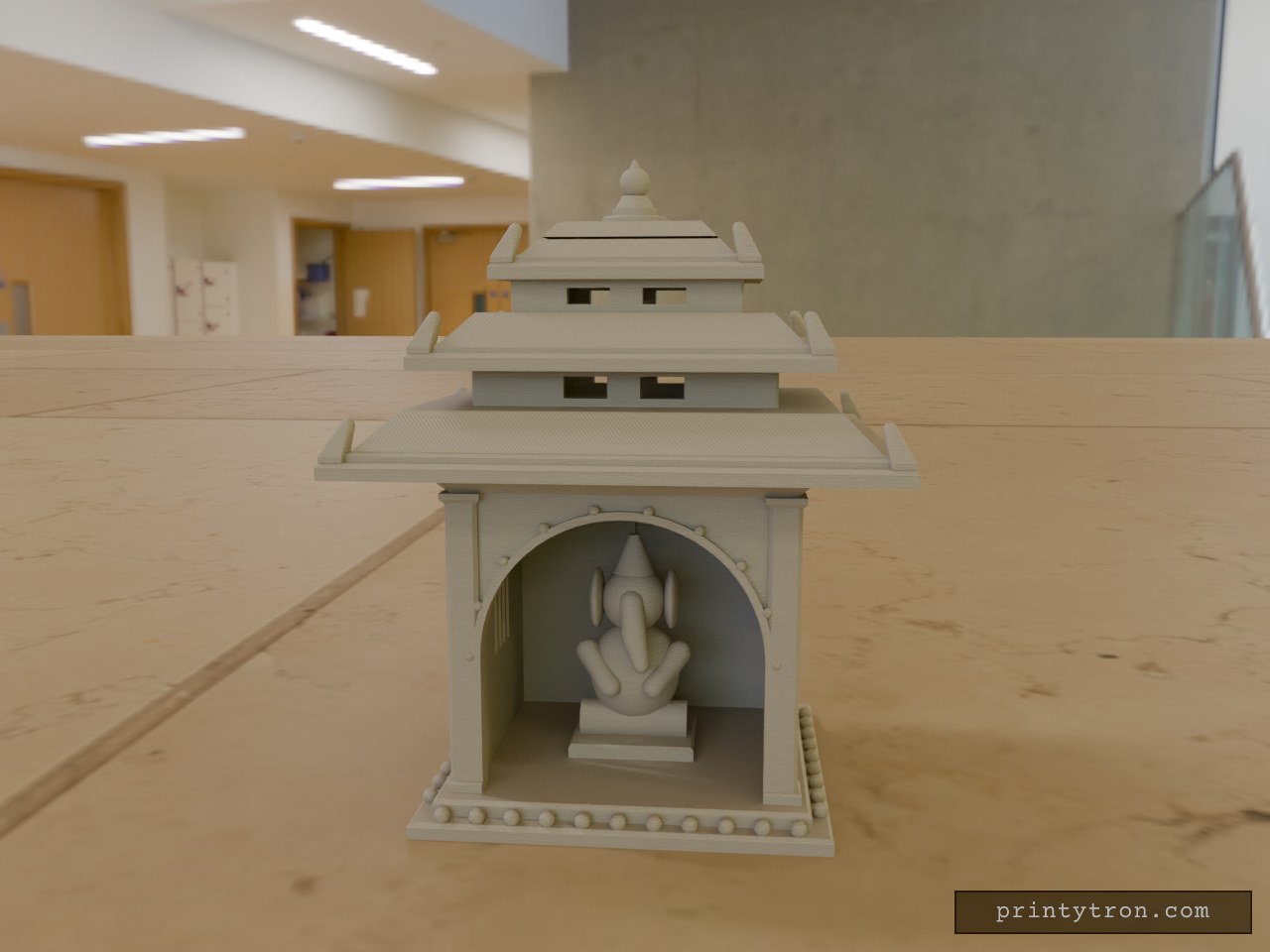

The Newar Lantern is a miniature Newari-style Hindu pagoda temple built as a display lamp, standing 250 mm tall with a roof that overhangs a narrower temple body. The chamber inside is hollow and open at the front, with a 60 mm opening in the ceiling that drops LED light onto a separate Ganesh statue, while the cable runs in a ceiling channel, down a rear groove and out an 8 mm exit at floor level so the wiring stays out of sight. The three roof tiers lift straight off for access to the light and statue, and every piece sits on a flat bottom for stable printing.
Dimensions
- Assembled height: 250 mm
- Lower roof: 200 × 180 mm; base: 155 × 145 mm
- Internal chamber: 112 × 92 × 115 mm with a flat floor
- Arched front entrance: 105 × 105 mm, open at the front
- Ceiling light opening: 60 mm, with a recess for the LED holder
- Finial spigot: 12 mm
Features
- Three progressively smaller roof tiers with uppturned corner horns, layered eaves and a small windowed storey beneath the lower two
- A pointed finial seated in the top roof on a 12 mm spigot
- Two-step platform base with a row of 6 mm spherical ornaments
- Arched entrance with a framed, studded border, corner pillars, lattice side windows and a cornice
- LED holder: a flat plate with a collar for the module and a cable slot
- Separate seated Ganesh statue on a flat pedestal, about 90 mm tall and sized for the chamber
Print notes
- Seven pieces: temple body, three roof tiers, finial, LED holder and Ganesh statue
- Roof tiers join on 5 mm pins and 5.6 mm sockets, so they lift off without clips
- Roof undersides are set at a 45° slope so each tier prints without supports
- The sloped roof sections are solid rather than a thin shell — print them with 3 walls and about 8% infill, since the walls carry the load
- Flat bottoms keep every piece stable on the build plate
- Walls are kept to a minimum of 2 mm for durable printing
Photos
Technical views
More like this
Explore more in Decor & Display →

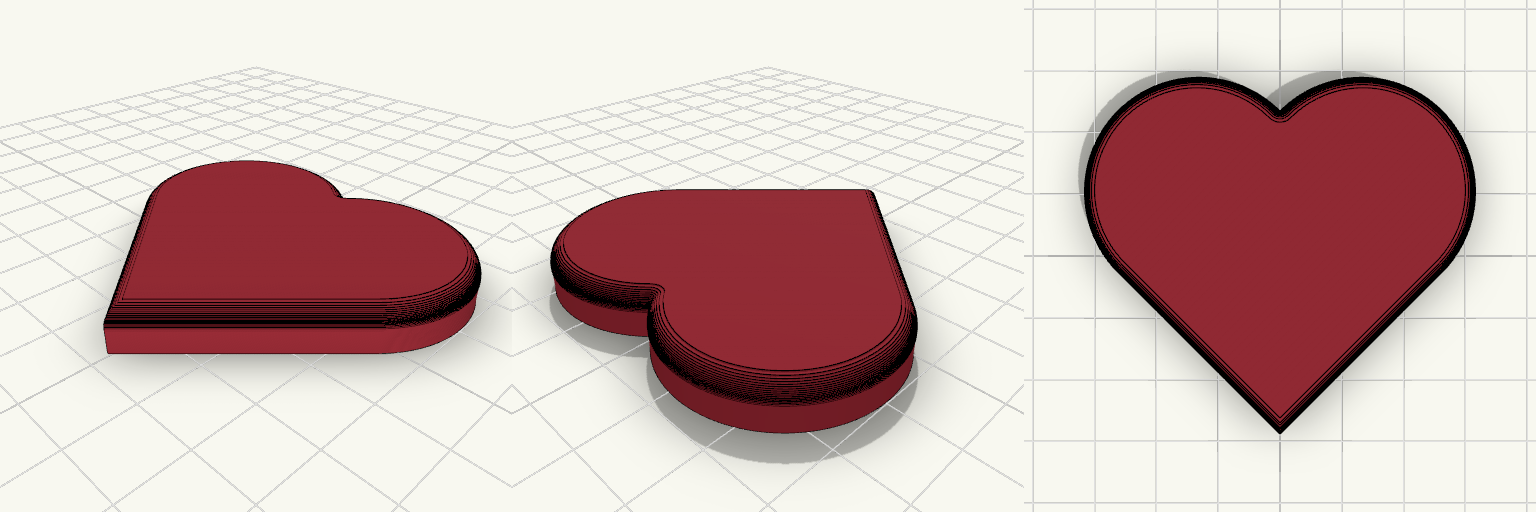

Classic Heart Shape, 7 mm Thick
