OptiFix — CD Diffraction Rig
Created today
Description
OptiFix is a one-piece rigid alignment jig designed for CD diffraction experiments. It firmly holds a standard 120 mm CD in a vertical slot and aligns a 14 mm laser pointer on an exact perpendicular axis, ensuring a clean horizontal diffraction pattern.
Features
- Absolute Alignment: Positions the laser center precisely 65 mm above the base, directly in line with the CD's center.
- Track Targeting: The laser axis is offset sideways to hit the data tracks 2.3 mm inward from the CD's outer edge, catching the vertical track lines to cast a horizontal pattern.
- Snap-in Towers: Two separate cradle towers grip the 14 mm laser via a narrow 12.5 mm top opening, eliminating the need for rubber bands.
- Stable Base: An expanded L-shaped footprint keeps the setup planted on the desk.
Images
More like this
Explore more in Workshop & Tools →

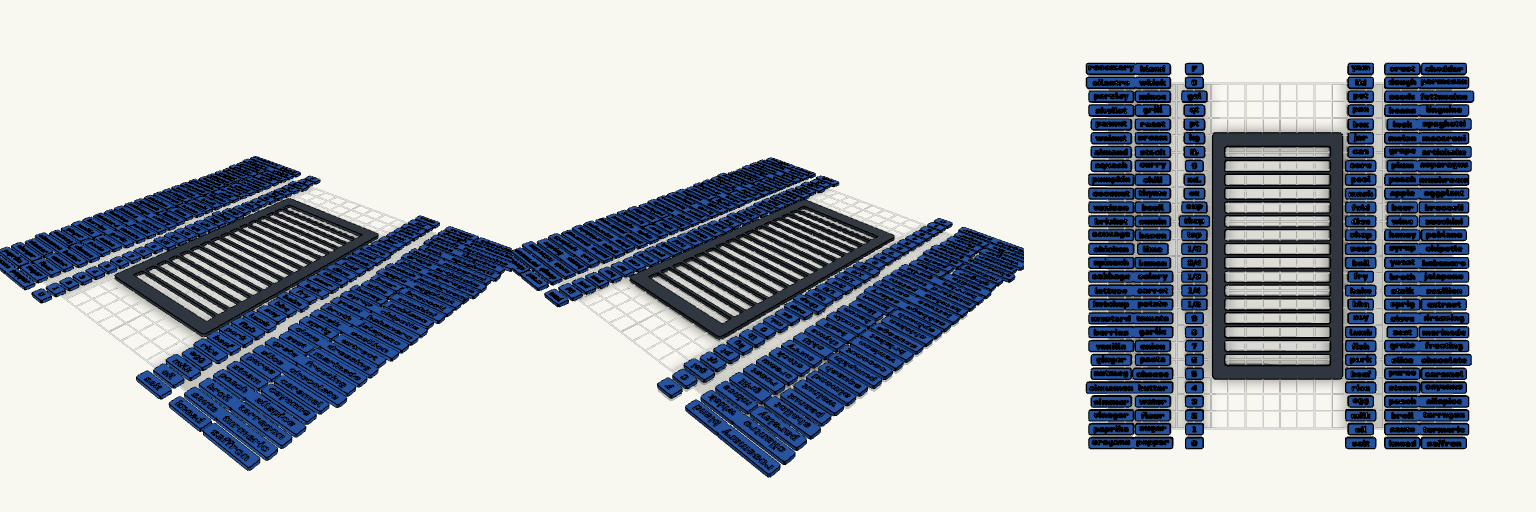

8mm Ruled Cookbook Stencil Rig
