Print-in-Place Concentric Rings
Created today
Description
A set of five concentric rings designed to print in place as a single piece. Excellent as a clearance test for your printer or just a satisfying desk fidget.
Remix Hooks
This design is built on a few key parameters that are begging to be tweaked depending on what you want to use it for:
- Wall Thickness: Currently set to 2mm for a solid feel.
- Clearance: Set to 0.4mm gap between rings. If your printer is finely tuned, drop this to 0.2mm or 0.3mm for tighter tolerances.
- Height: Currently 8mm, but you can scale this up on the Z-axis to turn them into nesting tubes.
- Inner Diameter: Starts exactly at 25mm to fit over standard dowels or large fingers.
Images
More like this
Explore more in Desk & Tech →
Micro Print-in-Place Joystick
This is a miniature print-in-place joystick that functions as a tactile desk toy. The internal geometry has been rebuilt to ensure the ball joint prints cleanly without supports or mid-air extrusion failures.

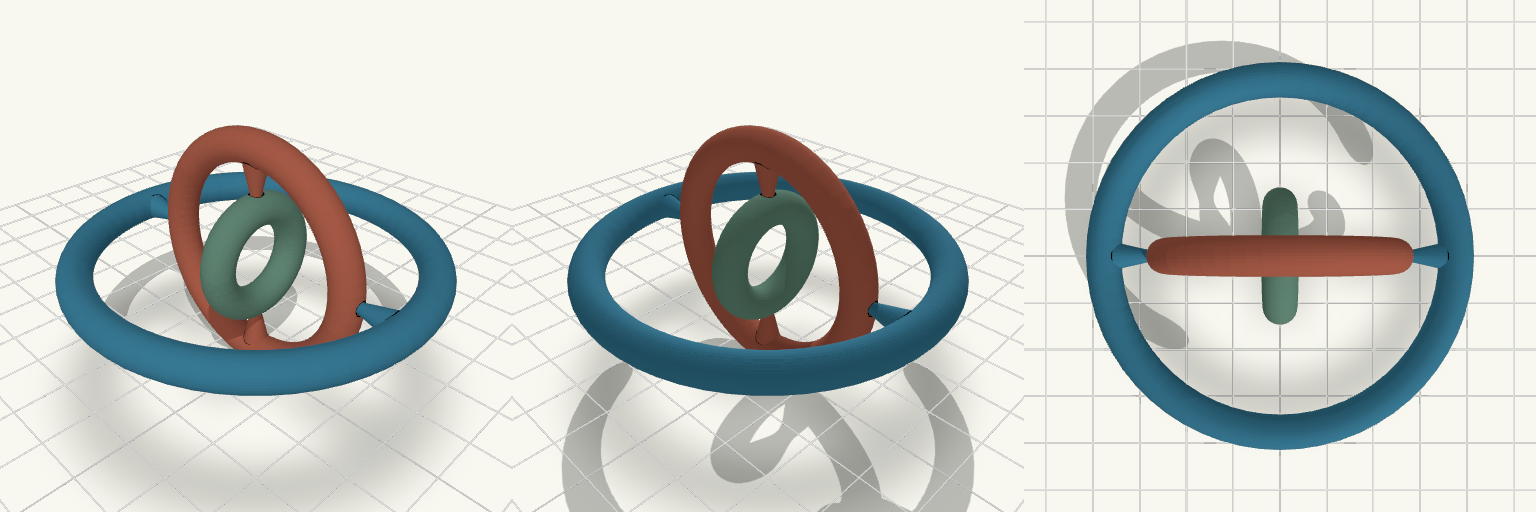

Vortex Loop 3-Ring Gimbal Fidget
Pocket fidget made of three nested rings, each pivoting inside the next on cone-shaped pins. Printed as one assembly with no hardware, the rings spin on three perpendicular axes. Overall size: about 68 mm across (outer ring) Ring tube: 6 mm diameter, round section Ring gaps: about 5 mm between rings Pivots: conical pins in sockets with 0.45 mm clearance Material: PLA, no electronics or extra parts Print notes: rings stand on edge in the as-built pose, so a brim or light supports under the middle and inner rings may help. Break the pivots free by hand after printing.
Lazy-Tongs Piano Bottle Caddy
A pantograph-style drink arm in the spirit of a vintage lazy-tongs: a hooked clip straddles the top of a piano's music desk, and a three-unit scissor mechanism unfolds backward to carry a bottle cup. The cup sits inside a wide, rimmed drip tray, so condensation stays off the keys and cabinet. The arm folds flat for storage and stretches out for use. Pivots are print-in-place pins, and the two end joints ride in slots so the arms can open and close. Design notes Cup bore is 76 mm, sized for a standard 33.8 fl oz (1 L) water bottle; cup wall is 85 mm tall. Drip tray is 96 mm across with a 12 mm rim and sits flush with the arm plane. Clip slot fits a music desk about 13 mm thick; adjust the thickness value to suit your piano. Three colored regions: desk clip, scissor arms, cup and tray. Shown in a partly extended pose; the opening angle can be changed to show it folded or fully reached. Best printed as shown, with 0.4 mm clearances at the pivots. Support is only needed under the clip hook. A full bottle is a cantilever load, so keep the arm short for heavier bottles.

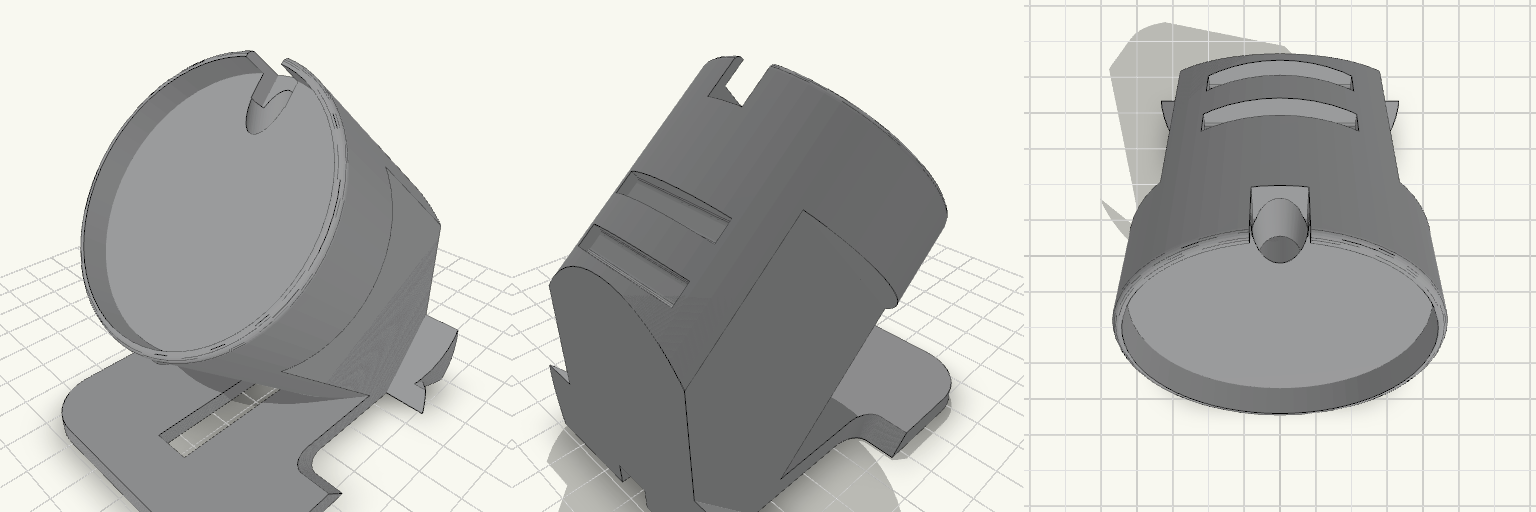

Monolith — MagSafe Dock
